This page describes details about the implementation of our CPIQ Solution.

For additional details about the initiative, see this presentation assembled by committee chair Margaret Belska.

Imatest’s CPIQ Implementation

Imatest 4.4+  supports IEEE CPIQ P1858TM (Camera Phone Image Quality) 2016 measurements. As members of CPIQ, we are strongly committed to providing convenient CPIQ-compliant and equivalent image quality measurements.

NOTE: You should use at least Imatest 4.4.9 for the latest corrections to visual noise calculations.

This page has similar order to chapters the CPIQ Standard, P1858TM/D1 Standard for Camera Phone Image Quality document. The first four chapters are 1. Overview, 2. Normative references, 3. Definitions, acronyms, and abbreviations, and 4. Test conditions and apparatus. Measurement chapters are:

5. Spatial Frequency Response (SFR)
6. Lateral Chromatic Displacement
7. Chroma Level
8. Color Uniformity
9. Local geometric distortion
10. Visual noise
11. Texture blur

For each of these sections we will discuss charts, measurement techniques, and (perceptual) Quality Level results. The last section on this page lists the JSON output locations for all CPIQ metrics.

Test Lab Environment

Current draft requirements (to be approved) for a IEEE certified test lab are as follows:

Charts

  • Dot Pattern chart (Measures distortion and chromatic displacement)
  • ESFR-ISO chart – SFR and visual noise
  • Colorchecker SG – chroma level
  • Spilled Coins/Dead Leaves chart – Measures texture acutance
  • Blank 18% gray chart (Measures color uniformity, this could be a wall painted with an ~18% gray paint)

Lighting

All lighting must be able to achieve at least 80% uniformity across the largest chart (e.g. no more than 20% deviation from center to corner)

The following illuminants:

  • 3050k Incandescent tungsten illuminant at 25 lux
  • D55 illuminant at 1000 lux
  • TL84 illuminant at 100 lux

Environment

  • Temperature must be 23C +/- 2C
  • Room should be set up to reduce reflections and prevent stray light from entering the scene. Ideally, the walls should be painted with a low-reflection, low-chroma paint such as ~18% gray or black
  • Room should be light-tight so no outside light sources could affect measurements

Spatial Frequency Response (SFR) – Chapter 5

Chapter 5 of the CPIQ document describes slanted-edge SFR (MTF) measurements. It includes Acutance, which is a perceptual measurement of sharpness, derived from MTF and the human visual system’s Contrast Sensitivity Function (CSF).

For measuring SFR in compliance with CPIQ, we recommend the eSFR ISO chart. eSFR ISO has sufficient slanted-edges to map sharpness over the image surface, has a grayscale OECF chart that can be used for the Visual noise measurement, and is fully compliant with the chart requirements of the ISO 12233:2014 standard.

eSFR ISO ChartEnhanced eSFR ISO chart

For CPIQ, sharpness is measured as Spatial frequency response (SFR) (also called Modulation Transfer Function (MTF)). The eSFR ISO module can be used for this purpose.

Acutance is a perceptual measurement designed to answer the question, “how sharp does the image look?” It is closely related to Subjective Quality Factor (SQF), differing only in the details of the equation. It is calculated from MTF (SFR), a model of the human visual system Contrast Sensitivity Function (CSF), and viewing conditions (image height and viewing distance). Imatest displays it in exactly the same way as SQF, which provides many of options. To obtain Acutance measurements, open eSFR ISO (or other Rescharts module), then click on the SQF/Acutance Options button in the Settings window (More settings in SFRplus). Click on the CPIQ Acutance button to select the acutance calculation. Plot type can be SQF or Acutance (standard plot) or JND (Just Noticeable Difference: CPIQ Phase 2 equation. You’ll have to make some assumption on the viewing conditions. See SQF/Acutance for details.

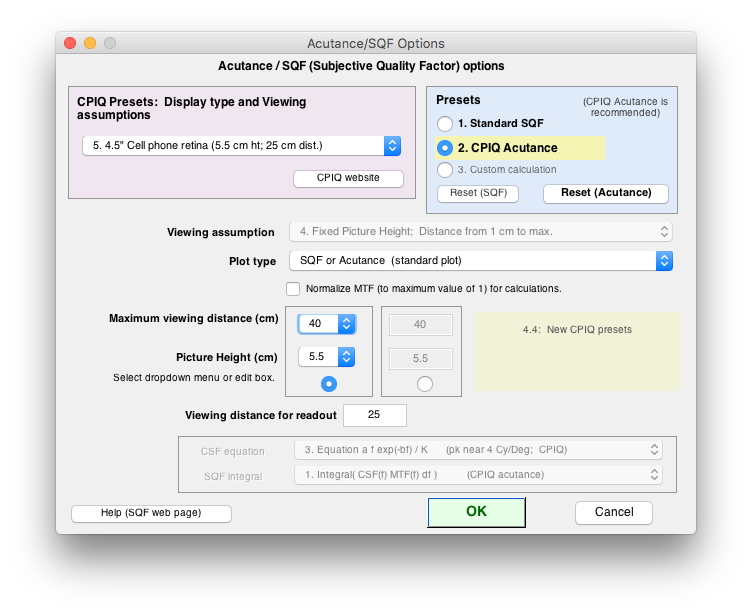

AcuutanceOptions

SQF/Acutance settings window

Here are results from the eSFR ISO module display #3. We have assumed that viewing distance is proportional to the square root of the print height (which fits my (NLK’s) experience of photography galleries). It can be fixed or have a cube root function.

CPIQacutance

Acutance results for viewing distance = 20*sqrt(PH/10) or 25 cm, whichever is larger
for Picture height from 10 to 40 cm

Lateral Chromatic Displacement – Chapter 6

Lateral Chromatic displacement is also known as Lateral Chromatic Aberration.  Often this is characterized using a tangential slanted edge, but the CPIQ standard obtains a much more detailed measurement through use of the dot pattern test chart:

Example image of a dot pattern.An image of the dot pattern test chart  is analyzed using the dot pattern module of Imatest.

DotPattern_1_LCArad

Chroma Level – Chapter 7

The Chroma level (Saturation) test uses the X-Rite Digital Colorchecker SG chart, shown properly framed on the right. (The chart should not fill the image. If it does, light falloff may reduce accuracy of the results.) The measurement uses only the chromatic patches: it omits the black, white, and grayscale patches near the edges and center of the chart.

The Colorchecker SG is analyzed using the Multicharts (interactive) or Multitest (fixed) modules. The regions selection must be manually set so that the analysis regions are properly aligned with the test chart patches.

ColorcheckerSGROIMulticharts fine adjustment window for Colorchecker SG

CPIQColorcheckerSG

The mean CPIQ chroma and quality level results are shown in the 2D a*b* plot. This figure shows a*b* values (from CIELAB color space) for patches for the 4 row x 6 column Colorchecker replica, just above the chart center (rows 2-5 from the top; columns 5-10).

CPIQColorcheckerSG_2D_aba*b* reference and camera colors for the 24-patch Colorchecker Classic replica inside the Colorchecker SG,
showing the mean CPIQ Chroma metric (measured on all chromatic patches).

Color Uniformity – Chapter 8

The CPIQ color variability metric, maximum ΔC = Dc, is displayed in Uniformity, Uniformity-Interactive, and Blemish Detect when Grid size is set to 20×15 for a 4:3 aspect ratio, 24×16 for a 3:2 aspect ratio, or 32×18 for a 16:9 aspect ratio and Grid calculation is set to 2. Delta-C and Delta-E. Delta-C and Delta-E are calculated for each grid region i by comparing L*a*b* values in the region with the mean for the image as a whole). It is calculated and saved in the JSON and CSV output whenever the CPIQ calculation box is checked. Here is an example of the settings.

cpiq_gridplot_settingsGrid plot settings for CPIQ color variability metric Dc

Here is the resulting grid plot.

Uniformity (or Uniformity-Interactive) 15×20 grid plot for ΔC and ΔE

The CPIQ color uniformity metric is displayed on the lower-right: Maximum ΔC = 2.606 is the CPIQ metric of color variability. The Quality loss associated with this metric is

QL = subjective quality loss in JNDs for color uniformity
= 0;  Dc ≤ 0.8636
\( = frac{(D_c – a)}{b} – frac{c ln bigl( 1 + frac{b(D_c – a)}{c}bigr)}{b^2}\);    Dc > 0.8636

where  a = 0.8636,  b = 2.3952,  c = 0.9771

Local Geometric Distortion – Chapter 9

Lens distortion is measured by photographing a dot pattern chart and analyzing it with the Dot Pattern module.

The image on the left, below shows Lateral Chromatic Aberration as a function of image radius in pixels. The image on the right,below shows optical and SMIA TV distortion.

Dot pattern image

DotPattern_1_TVdist

Visual Noise – Chapter 10

You should use at least Imatest 4.4.9 for the latest corrections to visual noise calculations.

Visual noise can be calculated from a test chart that includes a ISO 14524 radial tonal patches (step wedge). We recommend using the ISO 12233:2014 test chart which includes this feature.
 new_ISO-12233_enh_wedges_3_2_sRGB
The calculations can be performed by the eSFR ISO, Multicharts, or Multitest modules. Details are given in

Multicharts/Multitest/eSFR ISO noise measurements: ISO 15739 and CPIQ Visual noise

Here are the settings for the eSFR ISO module:

esfrISOsettings VisualNoiseSettings

The displays are available
Here are the results:VisualNoise

Texture Blur – Chapter 11

The CPIQ Phase 2 “Initial work on texture Metric” document calls for an analysis of the “Dead Leaves” pattern but provides little detail about how the results are to be displayed. It mentions Noise Power Spectrum (NPS), which is also called the Power Spectral Density (PSD). PSD is the square of the MTF.

Imatest has introduced a new version of the Dead Leaves chart, called the Spilled Coins chart, that has several advantages over existing Dead Leaves charts.

  • It is almost perfectly scale-invariant, i.e., results do not depend on magnification, and an MTF exponent of -1 (Power Spectral Density of -2) accurately characterizes the chart.
  • It is more uniform than existing charts.
  • The gray areas to the left and right of the chart have the same average density as the active area, making them suitable for calculating noise PSD to be subtracted from the PSD of the central “spilled coins” area.
  • It contains slanted-edges for comparing MTF calculations.

The Dead Leaves or Spilled Coins pattern is typically framed so it takes up about 1/3 of the image linearly (about 1/10 by area). This number may be vary depending on the chart design and the pixel size of the image (the pattern will require more space in low-resolution images such as VGA). More details on Random/Dead Leaves. The chart is available in several configurations from the Imatest Store.


The Imatest Spilled Coins chart (Black & White version)

The MTF or PSD of Dead Leaves images can be measured by the Imatest Random module (a part of Rescharts). This module was designed for random (or near-random) patterns with a 1/f spatial frequency response, which is equivalent to 1/f 2 Power Spectral Density (PSD). Such patterns are scale-invariant, i.e., its spectrum is independent of magnification; it isn’t affected by changing distance from the chart. This makes extremely convenient for measurements.

The PSD exponent of the Spilled Coins chart is different from the PSD (i.e., NPS) of the Dead Leaves target shown in Figure 4. It is -2 (i.e., scale-invariant, which is the ideal value) rather than -1.86 . We show a few results below. Full details are on Random/Dead Leaves.

Random/Dead Leaves Settings window. Exponent set to -1 (for PSD = -2)

Results are available in plot #7:

CPIQTextureBlur

JSON Locations

Metric

JSON

Spatial Frequency Response

 CPIQ.

  • sfrComputerMonitor.
    • acutance: Acutance value for 100% at 100ppi monitor viewing conditions
    • qualityLoss: JND quality loss value
  • sfrPhoneDisplay.
    • acutance: Acutance value for 4.5″ retina cell-phone display
    • qualityLoss: JND quality loss value
  • sfrUHDTVDisplay.
    • acutance: Acutance value for UHDTV 4k TV display
    • qualityLoss: JND quality loss value
  • sfrSmallPrint.
    • acutance: Acutance value for small, 10cm x 15cm print
    • qualityLoss: JND quality loss value
  • sfrLargePrint.
    • acutance: Acutance value for large, 40cm x 60cm print
    • qualityLoss: JND quality loss value

Lateral Chromatic Displacement

 CPIQ.

  • laterChromaticDisplacement.
    • metric: Max LCD value in pixels
    • qualityLoss: JND quality loss value

Chroma Level

 mean_chroma_level_CPIQ_Pct: Chroma level value as a percentage

 CPIQ_chroma_quality_loss: JND quality loss value

 Color Uniformity

 Dc_max_color_nonuniformity_CPIQ: Color uniformity max difference in pixel level

 QL_quality_loss_color_nonuniformity_CPIQ: JND quality loss value

Local Geometric Distortion

CPIQ.

  • lensGeometricDistortion.
    • metric: Distortion max deviation as a percent of original distance from the center
    • qualityLossBarrel: JND quality loss for barrel/pincushion-type distortion
    • qualityLossWave: JND quality loss for higher-order wave-type distortion

Visual Noise

 VN_CPIQ_Total_Visual_Noise_Omega_1: Total objective visual noise for first set of viewing conditions

 VN_CPIQ_Quality_Level_QL_1: JND quality loss for first set of viewing conditions

 VN_CPIQ_Total_Visual_Noise_Omega_2: Total objective visual noise for second set of viewing conditions

 VN_CPIQ_Quality_Level_QL_2: JND quality loss for second set of viewing conditions

 VN_CPIQ_Total_Visual_Noise_Omega_3: Total objective visual noise for third set of viewing conditions

 VN_CPIQ_Quality_Level_QL_3: JND quality loss for third set of viewing conditions

Texture Blur

 CPIQ.

  • textureComputerMonitor.
    • acutance: Acutance value for 100% at 100ppi monitor viewing conditions
    • qualityLoss: JND quality loss value
  • texturePhoneDisplay.
    • acutance: Acutance value for 4.5″ retina cell-phone display
    • qualityLoss: JND quality loss value
  • textureUHDTVDisplay.
    • acutance: Acutance value for UHDTV 4k TV display
    • qualityLoss: JND quality loss value
  • textureSmallPrint.
    • acutance: Acutance value for small, 10cm x 15cm print
    • qualityLoss: JND quality loss value
  • textureLargePrint.
    • acutance: Acutance value for large, 40cm x 60cm print
    • qualityLoss: JND quality loss value
