Previously, lights in a testing environment had to be controlled manually or via external software in what was often a time consuming and tedious process. With the introduction of Lighting Control in Imatest Master 2020.1, we give users the opportunity to fine tune and control their laboratory setup directly from the Imatest software using tools designed specifically with image quality testing in mind.

View on YouTube

Features

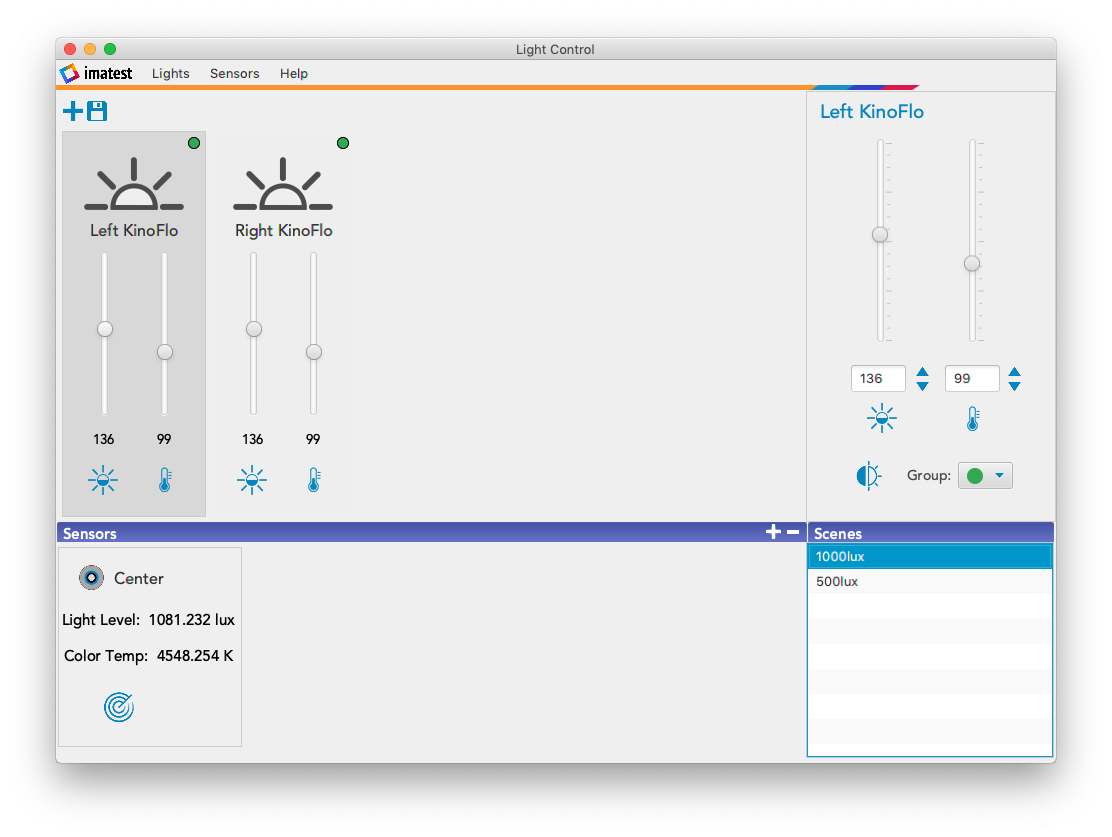

  • Easily view and manage your lighting system in a straightforward and easy to understand GUI

  • Quickly control the brightness and color temperature of individual lights

  • Group lights together for easily changing multiple lights simultaneously

  • Save the current settings of all connected lights for quickly switching between light levels and scenes

  • View live values from up to four Isolight Puck Light Meters

What We Support

Imatest light control is designed to be compatible with:

Device Windows Mac Linux

Isolight Puck Light Meters

DMX compatible lights (up to 512 channels)

X – Contact us if this impacts your work

Imatest lightboxes and light panels

ITI lightboxes



Recommended Equipment

Imatest lightbox The Imatest LED Lightbox produces uniform light with excellent spectral characteristics that can be adjusted over a wide range of brightness for illuminating transparency test charts. They are available in a variety of sizes and can be adjusted to meet your specific transmissive testing requirements.
KinoFlo LED DMX Lighting System The Kino Flo LED lighting systems are ideal for providing uniform, glare-free illumination for Imatest’s full range of reflective test charts. Available in multiple sizes to meet your reflective testing needs.
Enttec DMX USB Pro An industry standard in DMX-USB control. Supports either, DMX Input or DMX Output mode. And comes RDM enabled too (with correct firmware, not supported by Imatest Light Control). So, no matter what project you have, DMX USB PRO is the perfect device to accompany your computer and software.
Enttec Open DMX USB An economical option for DMX control needs.

User manual

Download the user manual here for step-by-step instructions on implementing Imatest Light Control in your laboratory.
