RS-7 Mounting Plate for Chrome on Glass Targets

March 1, 2023
March 1, 2023

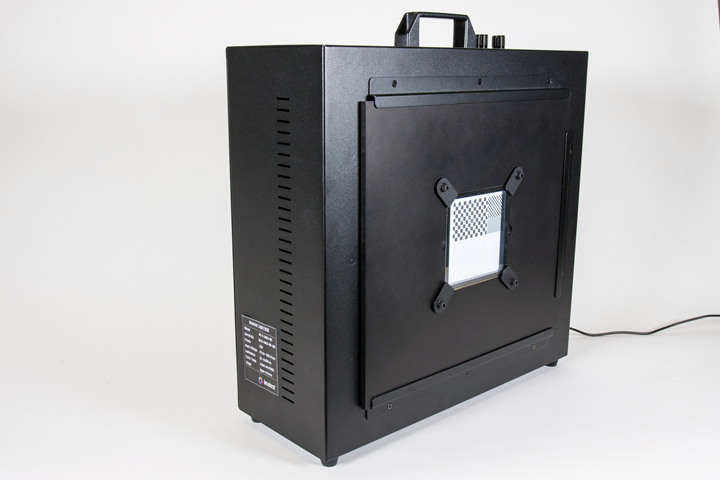

Chrome on Glass Chart Framed on Lightbox
Chrome on Glass Chart Framed on Lightbox

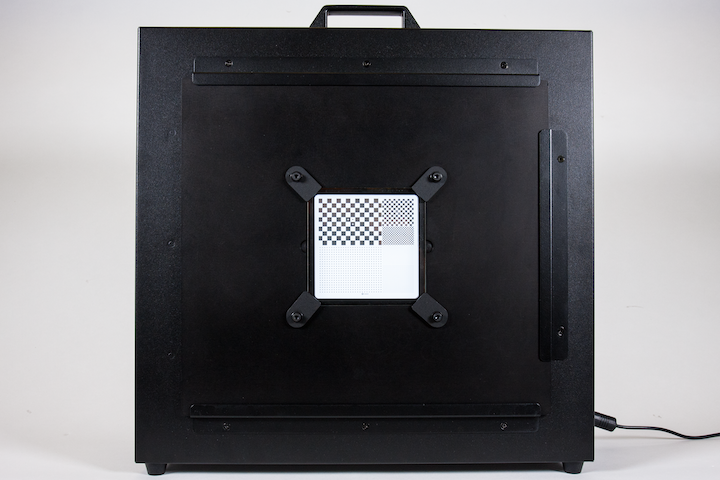

Chrome on Glass Mounting Plate on Lightbox

$500.00

This black anodized aluminum mounting plate is configured for the Gamma Scientific Spectral LED RS-7 Uniform Light Source.

This is designed for 4″ x 4″ Chrome on Glass Plates, and provides a solution for ultra-high resolution testing with a highly uniform light source.


SKU: COG-MP Category:

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

This mounting Plate is configured for 4″ Chrome on Glass Plates to be used with the Gamma Scientific Spectral LED RS-7 Uniform Light Source.

Light Source Specifications
Gamma Scientific RS-7 Uniform Light Source

  • For Chrome on Glass plate sizes up to 100mm x 100mm (4” x 4”)

  • Maximum active area: 53mm x 53mm (2” x 2”)

  • High-Repeatability configuration:

    • Includes fastening tabs for fixed target location

    • Custom machined for each Chrome on Glass target

    • Repeatable target location up to .1mm (.005”)

    • Includes captive fasteners for quick target changing

  • Machined from a 6061 aluminum plate

  • Includes all necessary tools
