Test Lab Setup
Imatest can help you configure an image quality test lab with superior equipment and software. Our lab setup equipment includes a modular test stand, collimators, test charts, lighting sources, motion generators, and robotic automation.
Test Stands

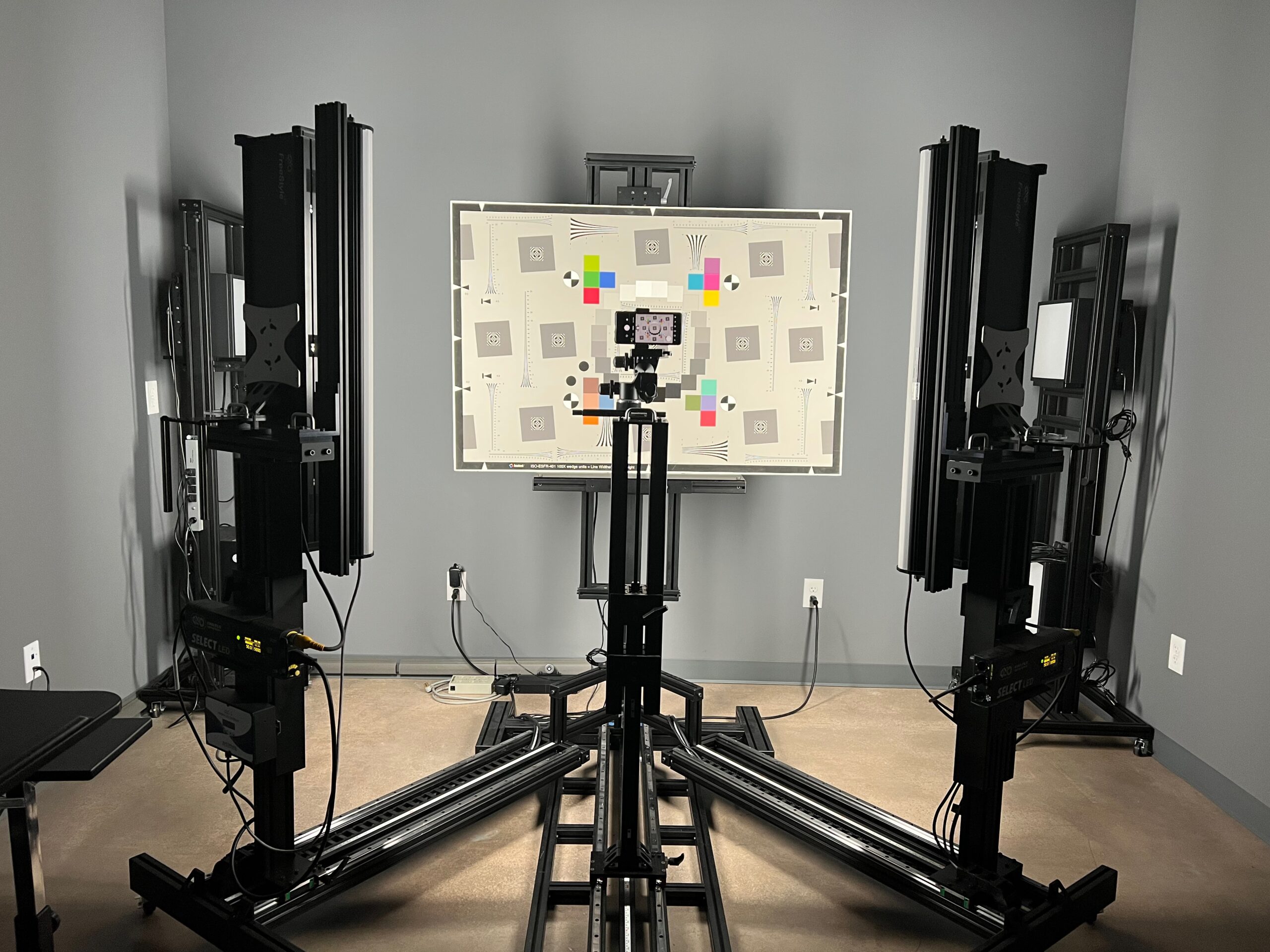

- Modular Test Stand.

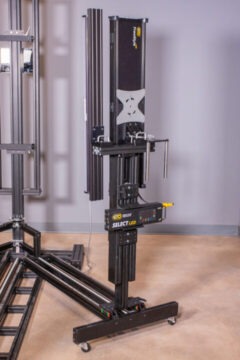

- MTS Reflective Module

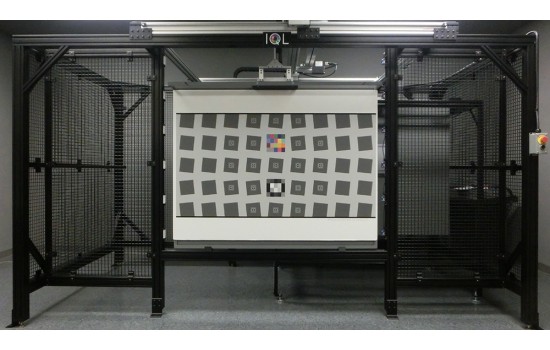

- Automatic Test Chart System

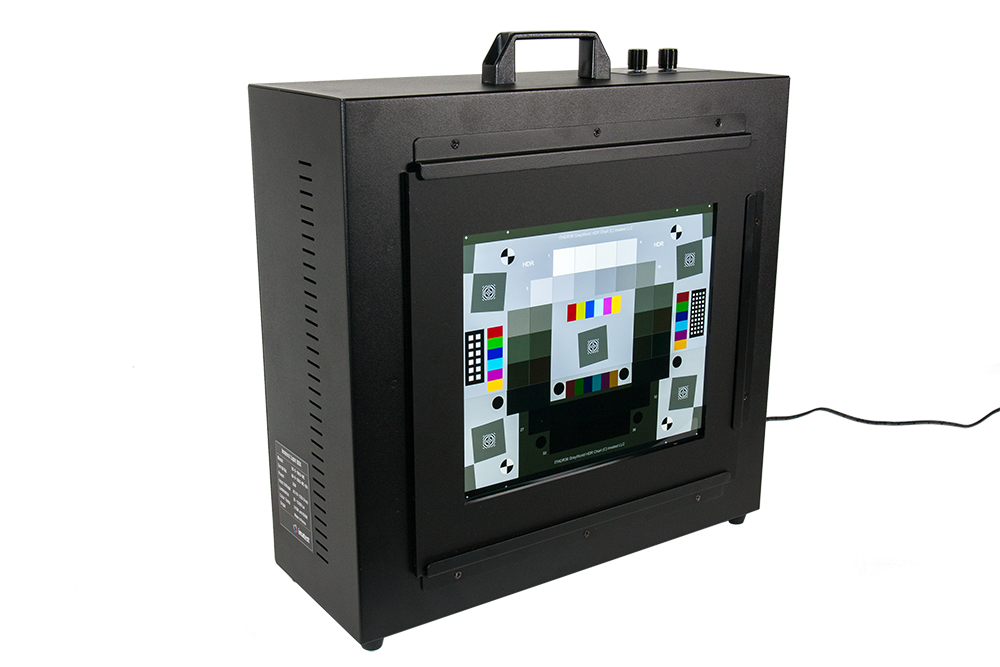

Uniform Light Sources
Test sensor response and blemishes
- Illuminate transmissive charts
- Ideal for use in manufacturing environments
- Reference the Lightbox Uniformity Measurement

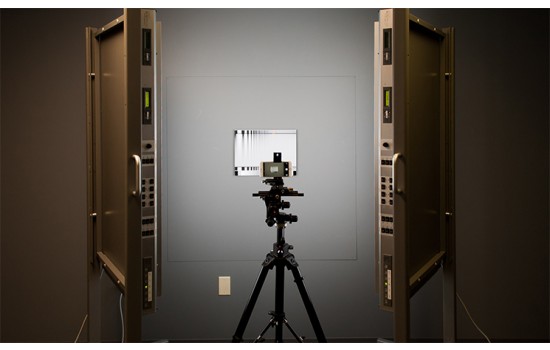

Reflective Lighting
- High quality, fully customizable lighting system.
- Even, glare-free illumination.
- Multi-source luminaires and heavy duty light stands.
- Lights can be configured to work anywhere in the world.

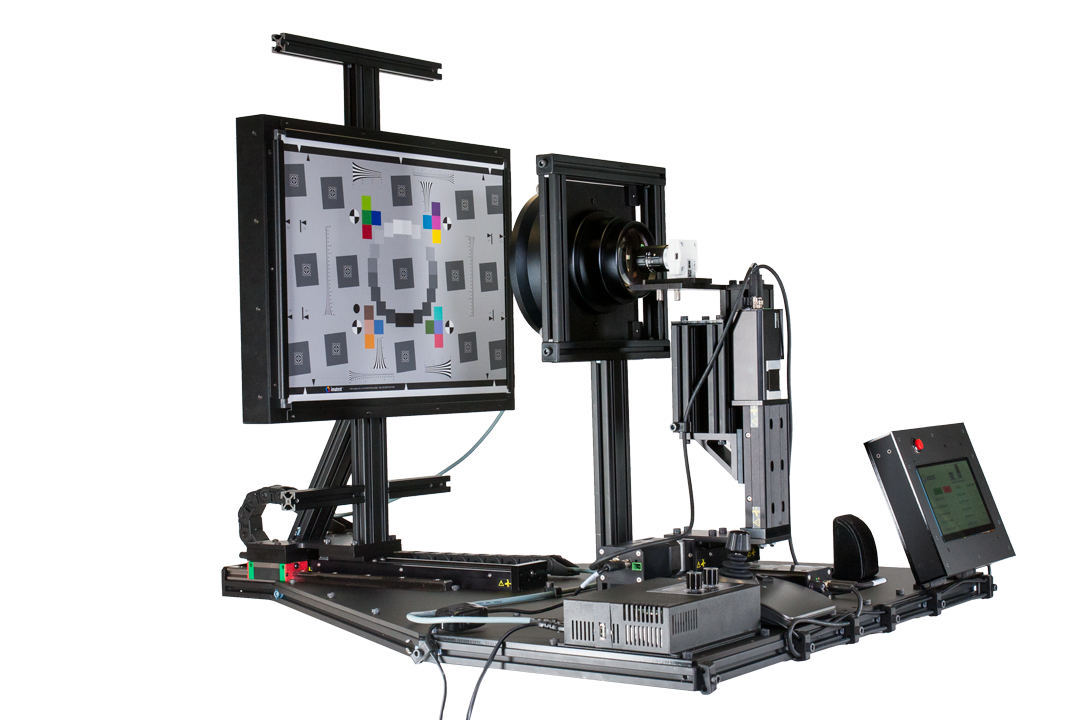

Target Collimators
- Imatest Collimator Fixture.
- 120° Collimator Lens for Wide Field of View.
- 70° Collimator Lens for Medium Field of View.
- 10° Target Projection Collimator for Narrow Field of View.

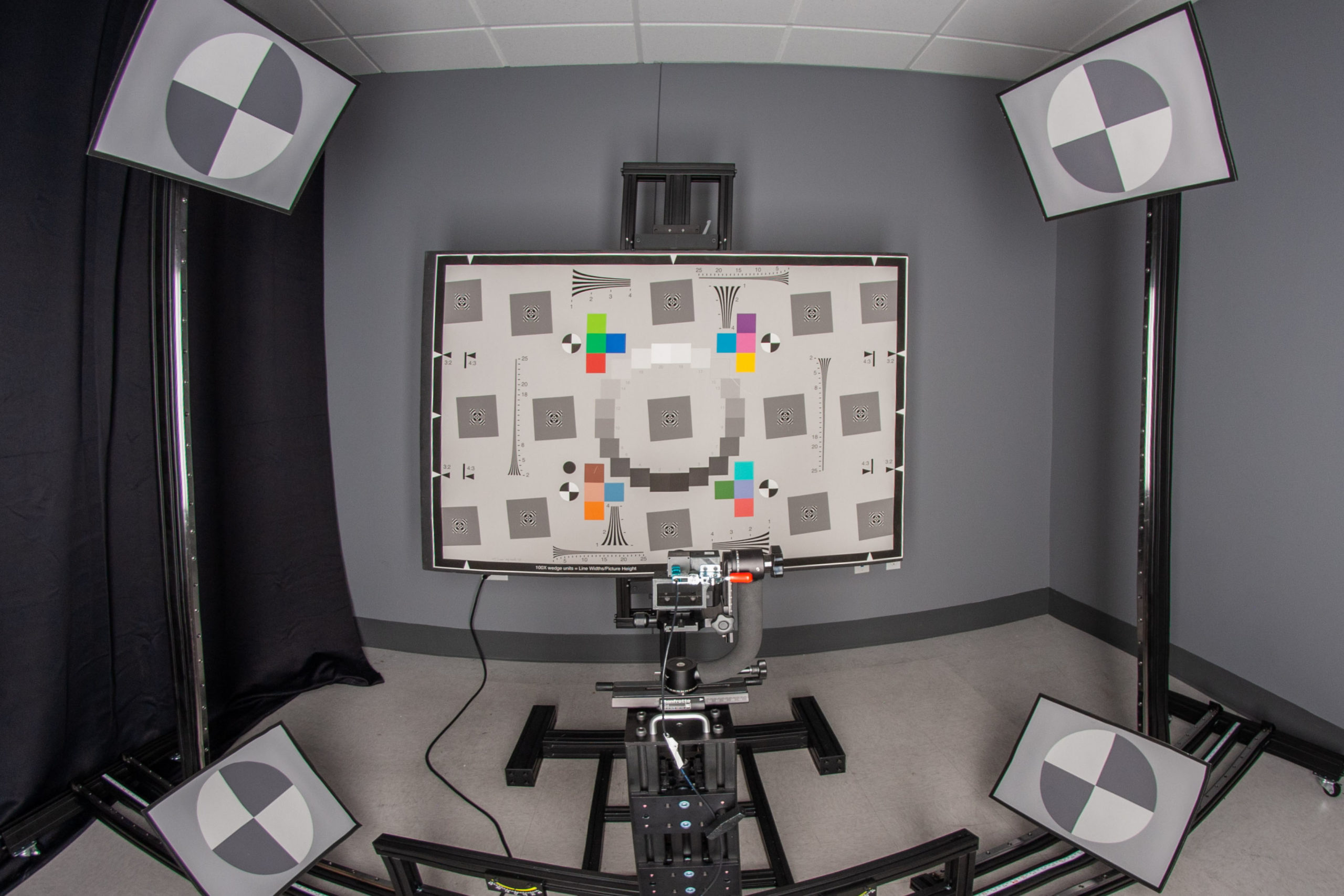

Wide-FoV Resolution
- Pre-distorted targets for wide lenses
- Place SFRreg targets wherever you want to test
- Ultra wide test fixture with backlit targets across a 180° FoV
Wide-FoV Uniformity
- RS-7-6 Wide-FoV Tunable LED for up to 180º FoV.
- Spherical Light Source for up to 300° FoV.

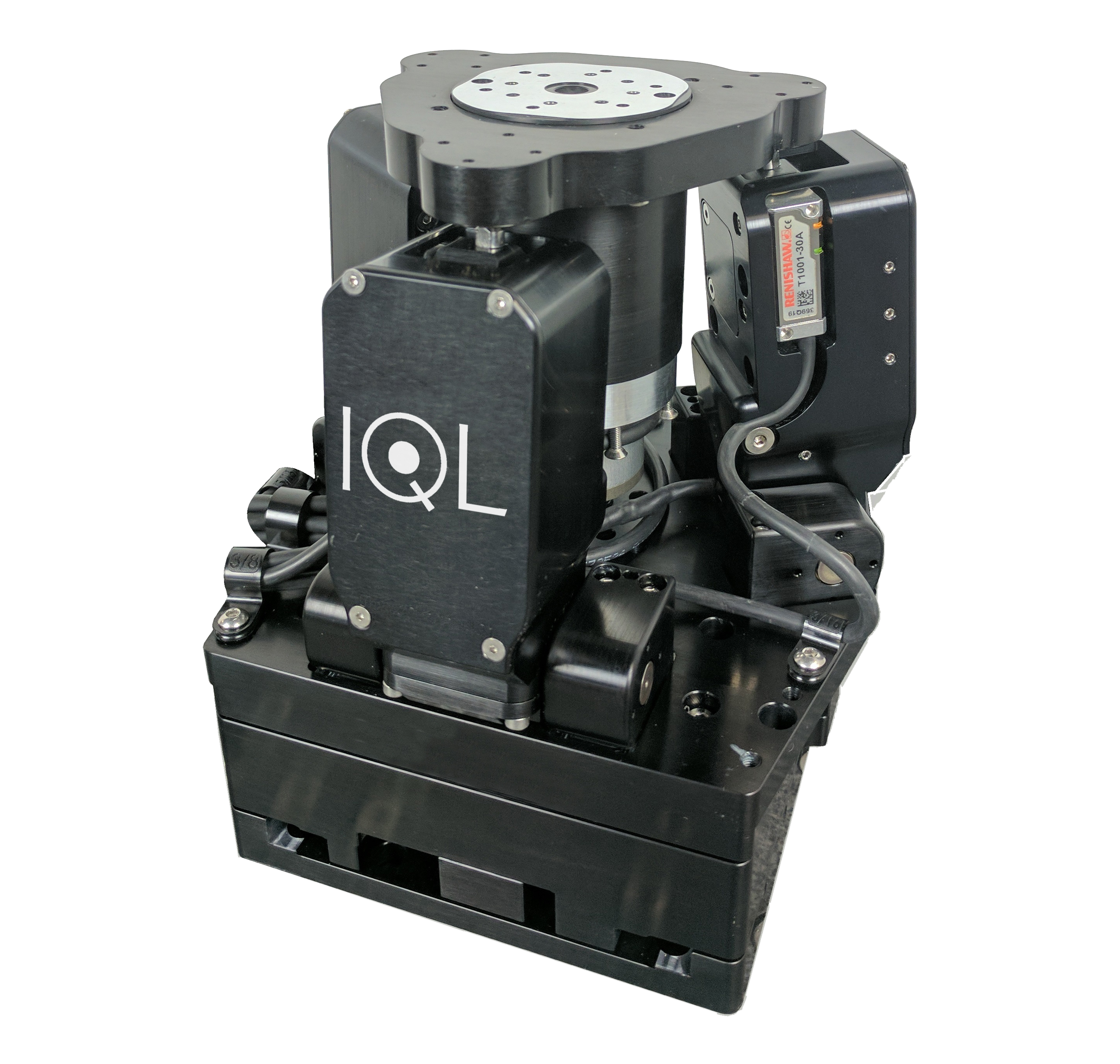

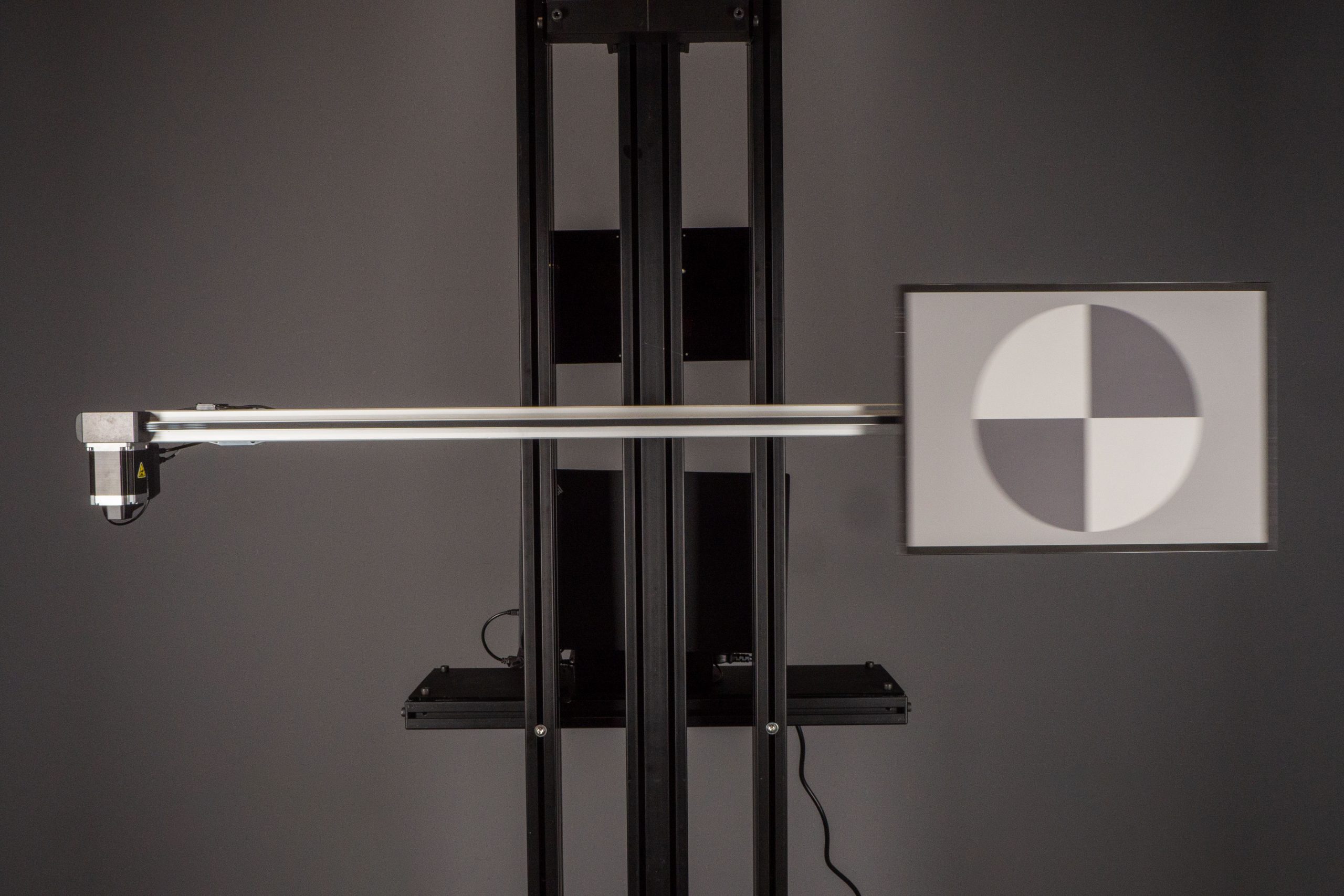

Motion Generation
- Simulate hand tremor effects on mobile phones & tablets.
- Configure for various vibration profiles & custom arbitrary waveforms.
- Test and evaluate image stabilization (IS) implementation.

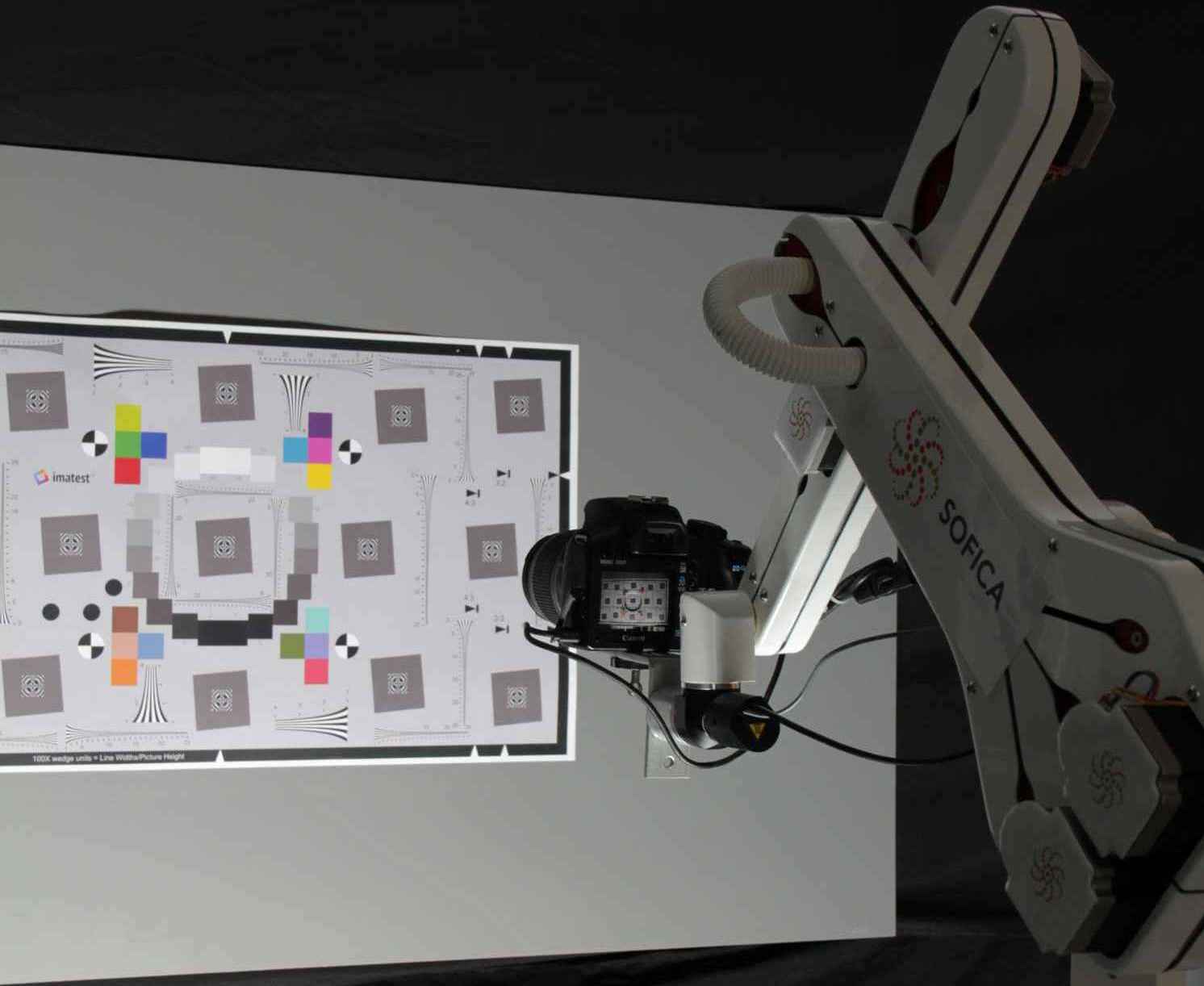

Robotic Automation
- Automated, robot-aided test systems
- Integrate Imatest software and test charts with lighting systems

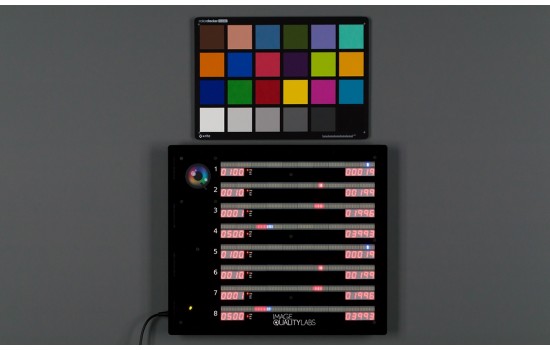

Timing
- Eight Independently Configurable Rows (100 LEDs/row).
- USB Configuration & Control via Windows GUI Application or Serial Commands.
- Buzzer Chirp Feature.
- Trigger Input to Start.
- Trigger Output to Start.
