Take the guesswork out of production line testing.

Ensure manufacturing outcomes meet product design requirements.

Imatest IT Operator Console passing an SFRplus test

Manufacturing Solutions

  • Automate tests that have been set up in key Imatest Master modules.
  • Enables integration of Imatest tests as software components which can be run on automated test equipment.
  • Safely balance fast manufacturing and product quality by automating a process that has been done in the past by human quality control.
  • Eliminate potentially self-serving results generated by a partner’s in-house testing system.
  • Remove the need for correlation of partner test results by using the same Imatest algorithm and charts throughout all suppliers.
  • Includes parallel processing capability.
Imatest Industrial Testing Edition

Supported Interfaces

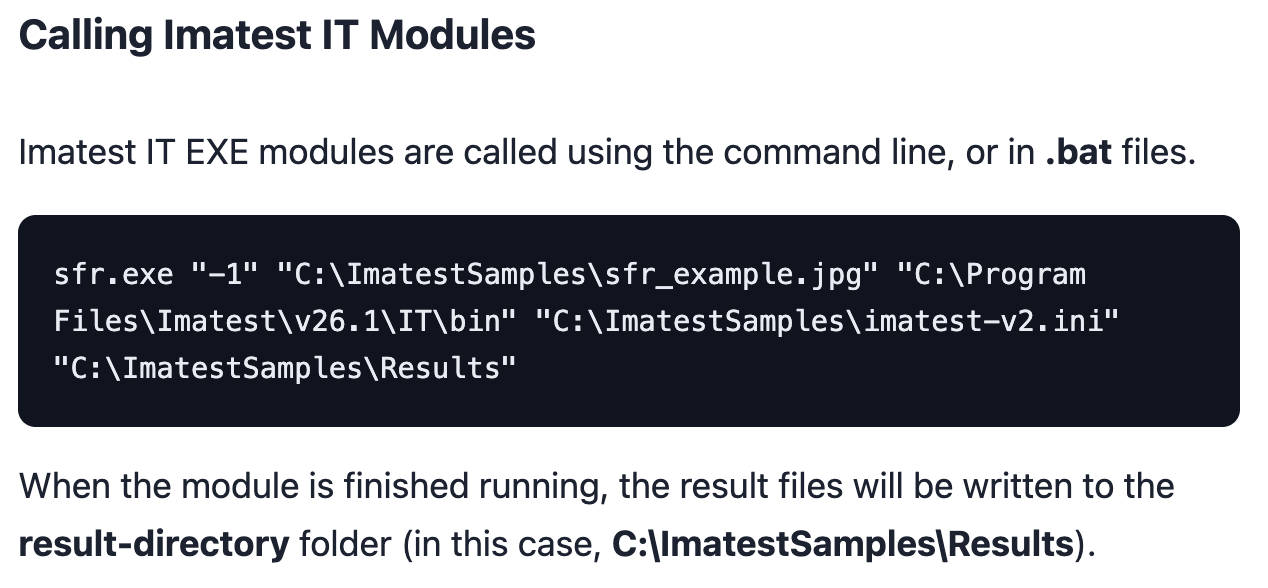

  • EXE: Command line EXE modules, called from the command line or in .bat files.

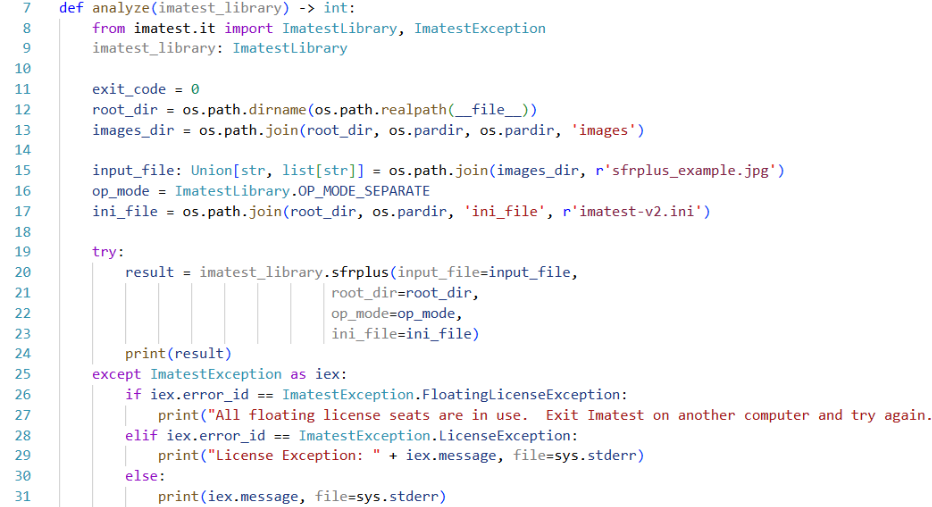

  • Python: Python module for Python 3.9, 3.10, 3.11 and 3.12.

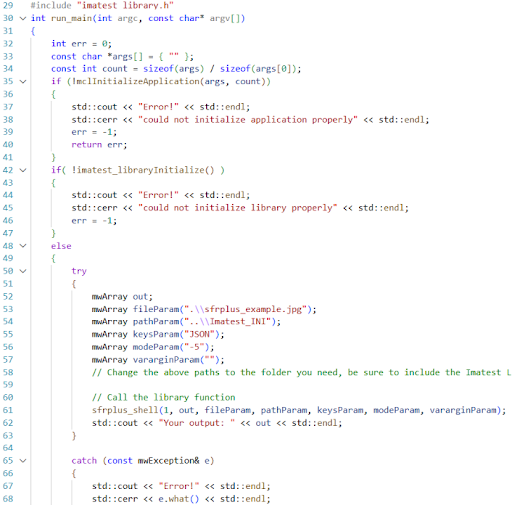

  • C/C++: C/C++ DLL.

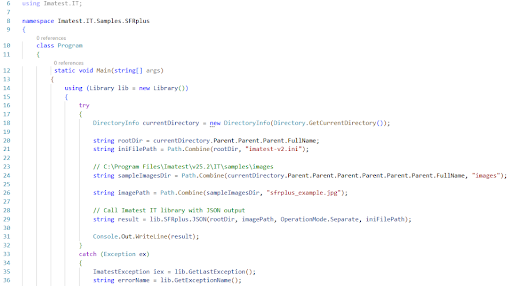

  • .NET (C#): .NET interface for .NET Framework 4.0, 6.0, and 9.0, including C# and VisualBasic example code, and a full-fledged automated image acquisition and testing sample application.

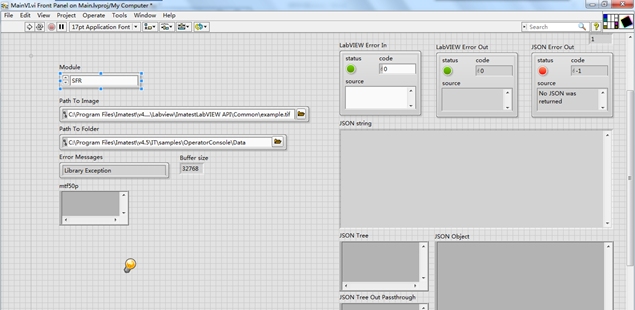

  • LabVIEW: LabVIEW example distributed with Imatest IT.

Selected Features

  • Pass/Fail Spec: Define the required quality levels for a camera.
  • SFRplus Chart Analysis: Complete map of sharpness non-uniformity.
  • Operator Console: Customizable user interface for factory testing and real-time focusing.
  • Flatfield Test: Detect blemishes on the sensor and defective pixels, measure color and illumination non-uniformity.
  • Calibrate Signal Processing: Use the results of color and illumination uniformity tests on each module to correct for each camera’s uniqueness.
  • Offers comprehensive testing with only 3 Test Images: Maximize efficiency by completing camera QA tests with SFRplus, light flatfield and dark flatfield.

Free trial

Try Imatest IT free for 21 days.

Request a free trial

Licensing Options

Try Imatest IT free: request a free trial.

Imatest IT

Imatest Ultimate

Imatest Ultimate combines the analysis suite of Imatest Master and the automated testing of Imatest IT. Imatest Ultimate offers our complete software capabilities within a single license.

Perpetual Licenses are also available. Floating Licenses are offered across all Imatest software versions. Upgrades are available for existing licenses. Please fill out this form or contact us for a quote.

Show Renewals and Upgrades

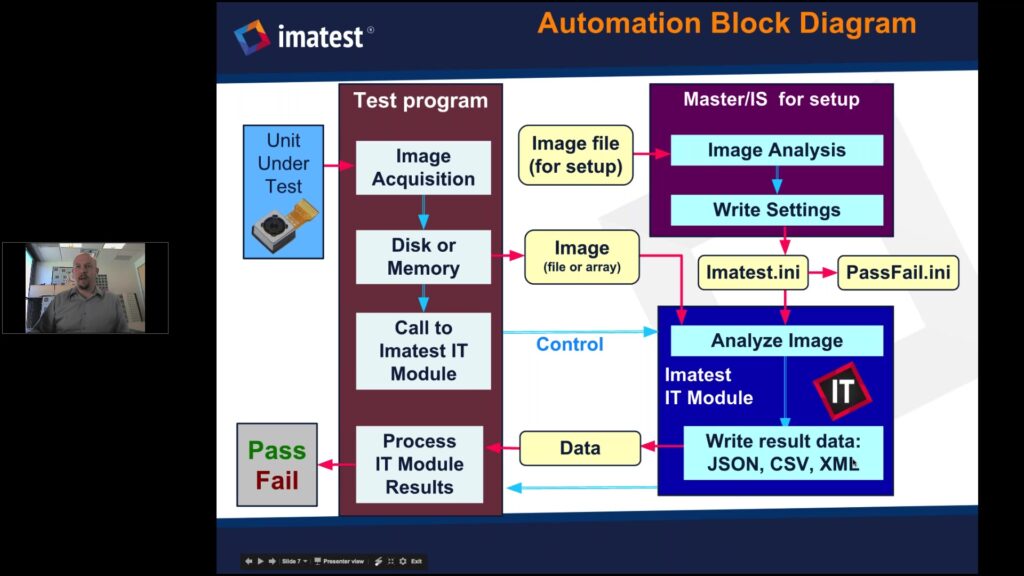

Automating Lab and Manufacturing Processes

On-demand webinar: defining image quality parameters on automated test equipment.

  • Best practices for managing supply chain image quality with Imatest
  • Applications for automating the supply chain and an overview of interfaces including .NET and Python
  • Tips and tricks for integrating test software components to run on automated test equipment
  • How to define image quality parameters throughout the development cycle
Automating Lab and Manufacturing Processes
