IQL Camera Timing Test System

January 24, 2018
August 9, 2024

$6,500.00

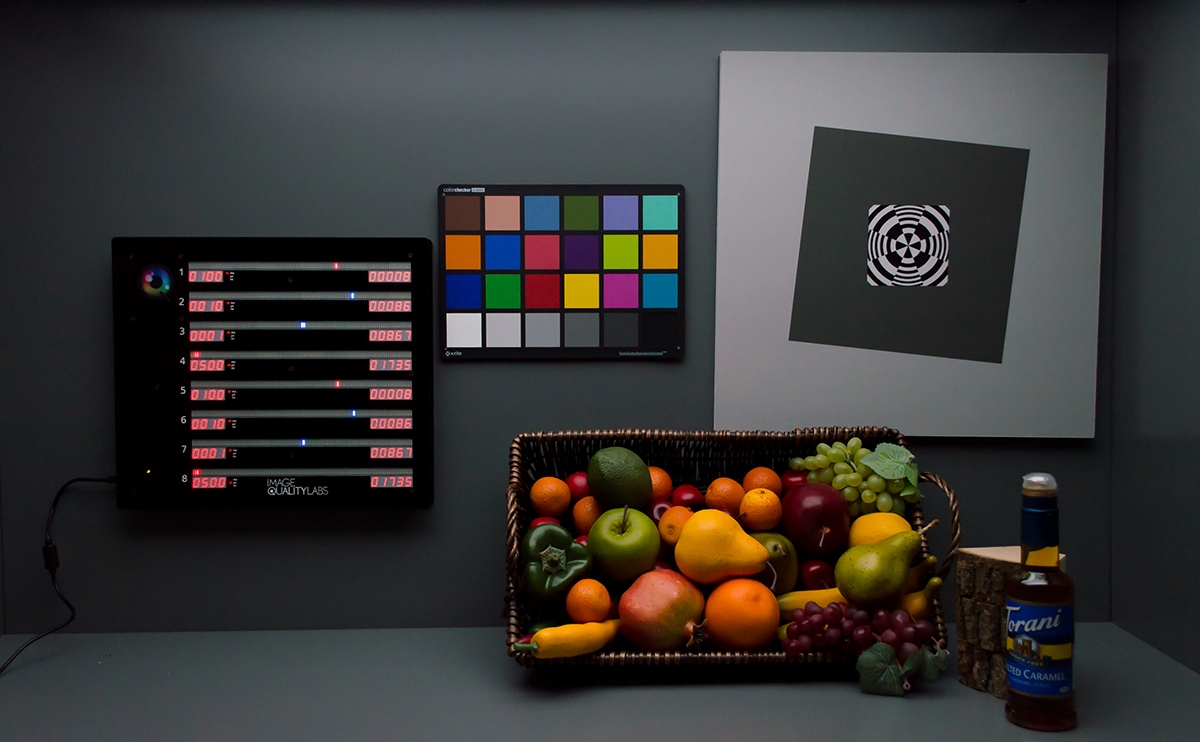

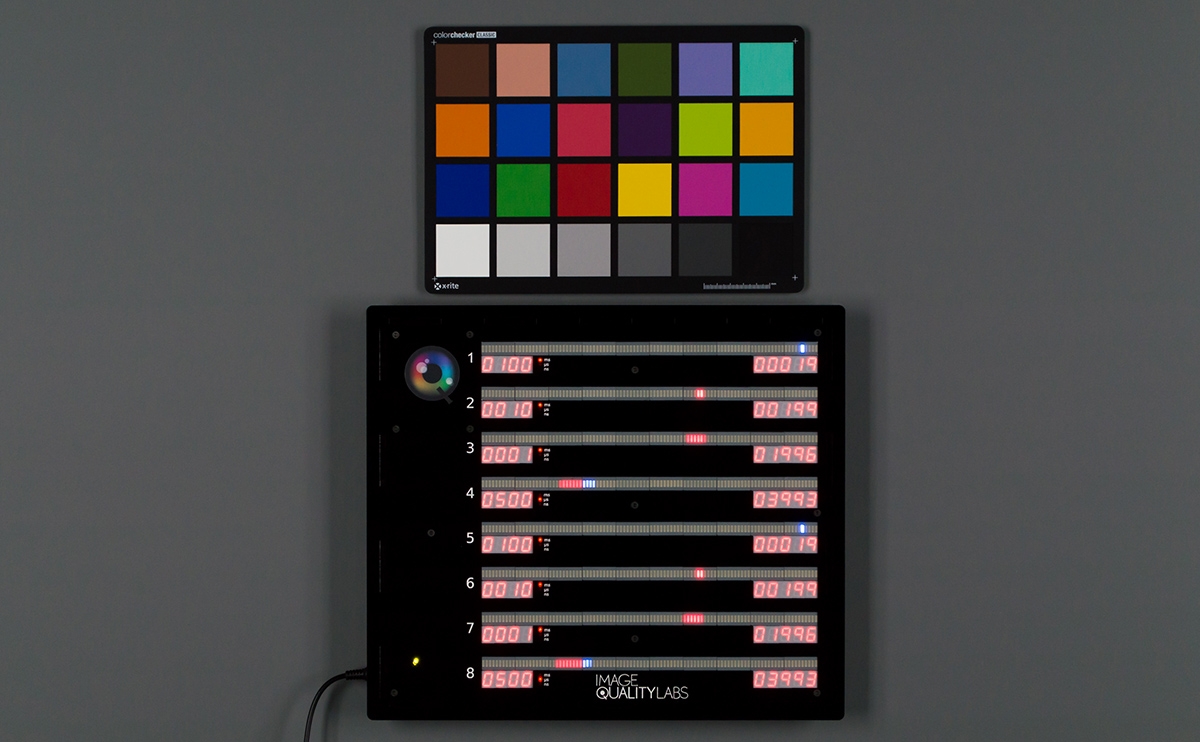

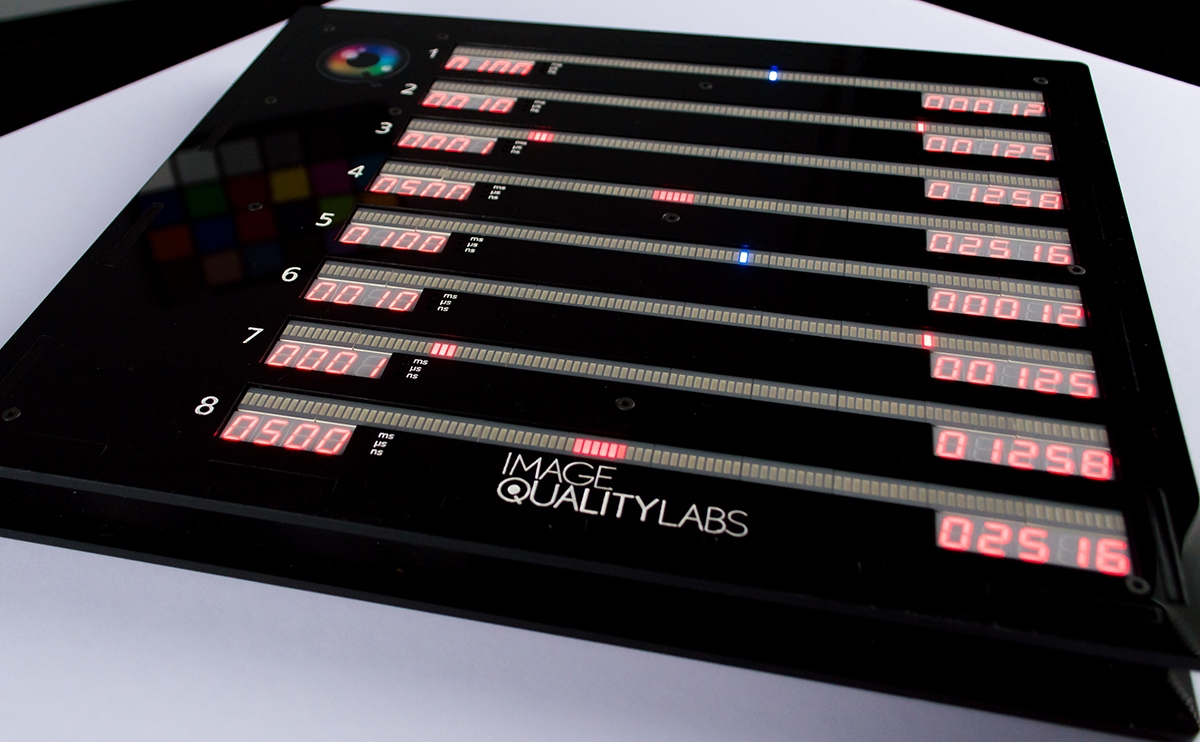

The IQL Camera Timing Test System is designed to be used for exposure/timing testing of cameras by using eight rows of scrolling LEDs along with roll-over counters. Each row can be independently configured for faster testing of multiple exposure times without having to adjust the Camera Timing Test system settings. Also, all rows can be synchronized to allow for estimating the scan rate of rolling shutter sensors. The system is also equipped with an integrated buzzer that can be enabled to test audio/video synchronization on video cameras. The wide range of possible rates and LED brightness control make this a very versatile tool, with the ability to test very high-speed cameras up to 10 million frames per second.

Download Flyer

SKU: IQL-CTS Categories: ,

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

  • Eight Independently Configurable Rows (100 LEDs/row)

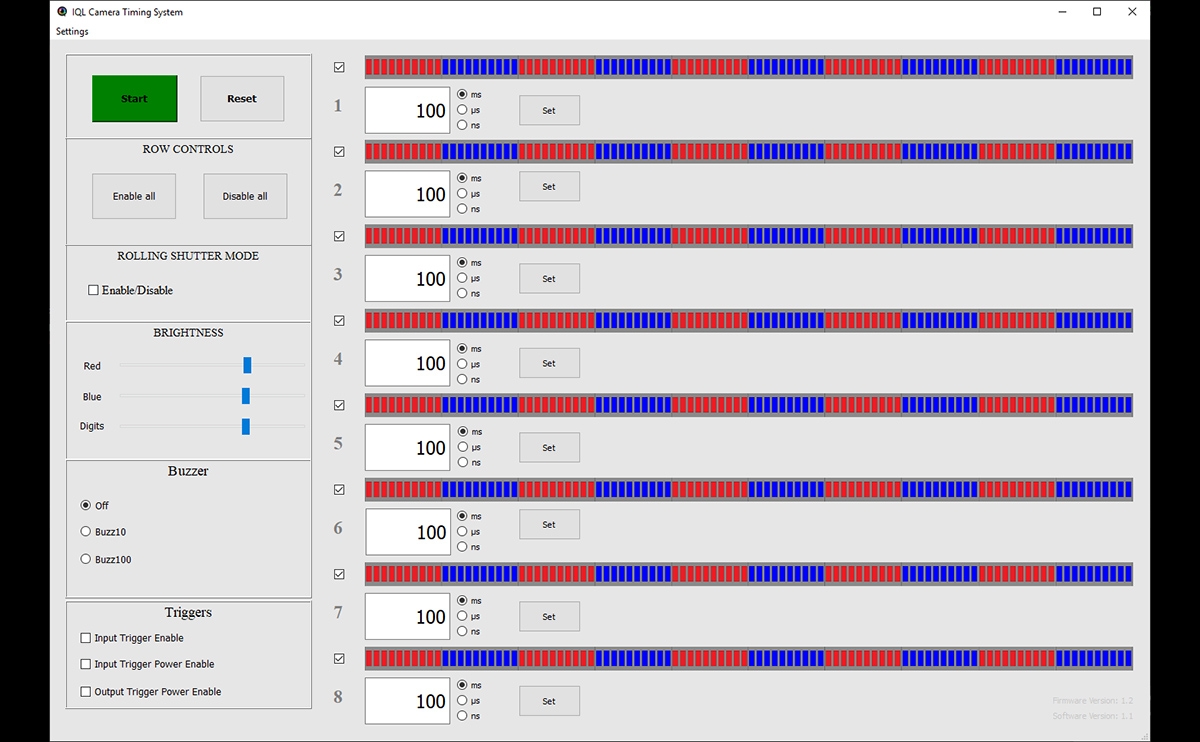

  • USB Configuration & Control via Windows GUI Application or Serial Commands
  • Buzzer Chirp Feature
  • Trigger Input to Start
  • Trigger Output on Start
  • Measurements:

o Image capture speed
o Autofocus time
o Pre-image capture buffer time
o Burst frame rate (multiple-shot)
o Exposure time
o Rolling shutter speed
o Camera startup time
o Audio/Video synchronization
o Video frame rate & Jitter (ISO-15781 compatible)

Specifications

  • Power Input: 12V, 2A
  • Time-Period Range: 100ns (10MHz) – 9999ms (0.1Hz)
  • Accuracy: 5μs
