Introduction

The performance, i.e., the image quality, of cameras intended for the ever-expanding Machine vision (MV) and Artificial Intelligence (AI) markets — which include automotive (driver assistance and autonomous vehicles), robotics, security, and medical imaging systems — must be measured differently from pictorial (“pleasing”) images intended for human vision.

Questions that arise when designing camera systems for MV/AI applications include

  1. How best to select (or qualify) cameras?
  2. What are the best — most accurate, fastest, and most convenient — measurements for predicting MV/AI system performance?
  3. What image processing (ISP or filtering) is optimal?

To answer these questions, we must go beyond standard measurements of sharpness and noise and apply newly-developed metrics derived from information theory, including information capacity and related metrics for detecting and locating objects.

These metrics are important because Object Recognition in MV, and AI algorithms operate on information, not pixels.

Traditional pixel-level image quality metrics, sharpness (MTF(f) or SFR(f)) and noise (or Signal-to-Noise Ratio, SNR) are incomplete metrics of camera performance.

(Shannon) information capacity, C, which

  • is derived from sharpness, contrast, and noise, and
  • has units of information bits per pixel or image,

is a complete performance metric that can be correlated to performance measurements such as the error rate for recognizing or classifying an object, for example, for determining whether it is a car, a bicycle, or a person).

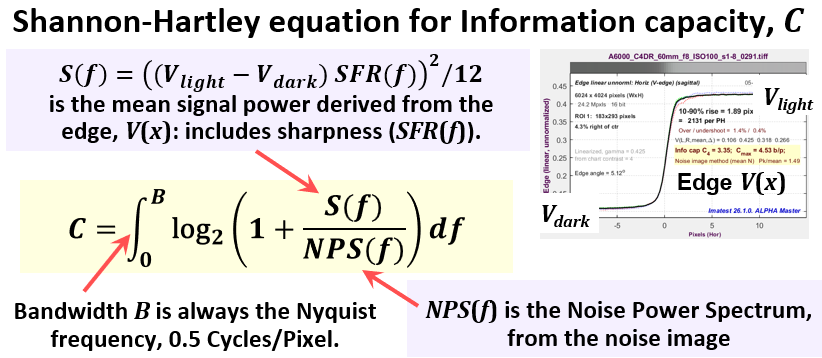

Shannon-Hartley equation for information capacity C, with signal power from a slanted edge and NPS

Imatest has developed a fast, convenient method for measuring information capacity and related performance metrics, summarized below. The new metrics are included in Imatest 26.1+ releases.



A quick summary of image information metrics

Image information metrics, based on Shannon’s information theory, which are far more predictive of MV system performance, can be measured from standard slanted-edge test images with contrast ratios of 10:1 or less, with the ISO 12233-standard 4:1 contrast ratio strongly recommended. The most important image information metrics are

InfoDR two-layer LVT test chart with slanted gray patches and wedge patterns
InfoDR chart

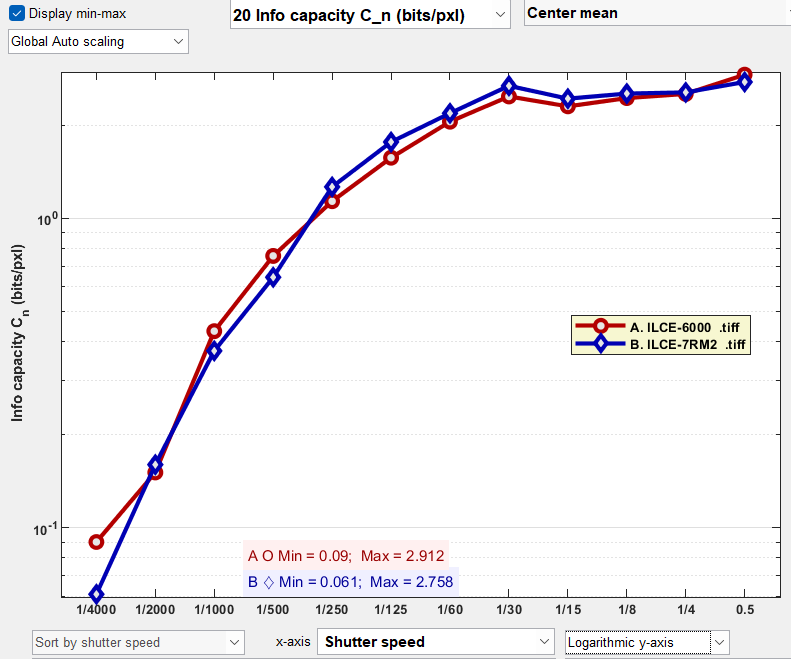

C4 vs exposure from the InfoDR chart

  1. Information capacity C  — an indicator of a camera’s potential performance. It is unchanged by reversible, linear image processing. We typically report two values of C, with units of bits/pixel or bits/image.

    1. C4 — measured directly from recommended 4:1 contrast slanted edges (more generally, Cn for n:1 contrast) is the amount of information that can be contained in signal with a 4:1 illumination range. It is a function of sensor illumination,  as illustrated on the right. Excellent for measuring information-based Dynamic Range and low-light performance.

    2. Cmax — a single number for the total information capacity of the camera. Based on an extrapolation that makes assumptions about noise as a function of signal (problematic for HDR sensors) and the maximum allowable pixel level. It is relatively insensitive to illumination level.

The plots on the right, made with the InfoDR chart and module, which allows sharpness, noise, and information metrics to be measured for a wide range of exposure, clearly show the superiority of the camera with the larger 3.9 μm sensor for metrics derived from C4.

Note the very different y-axis scales.

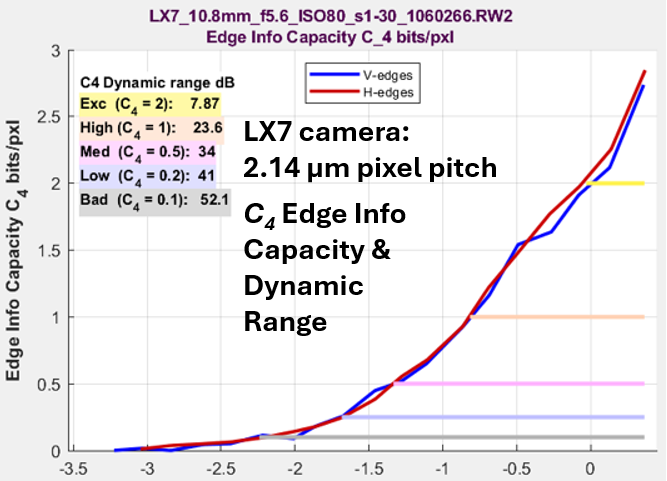

Lumix LX7 compact camera: 2.14 μm pixel pitchEdge information capacity C4 and dynamic range plot for Lumix LX7, 2.14 um pixel pitchSony A6000 DSLR: 3.9 μm pixel pitch,
Edge information capacity C4 and dynamic range plot for Sony A6000, 3.9 um pixel pitchLog10(Exposure in Lux-sec) for 6440 Lux max
  1. Ideal Observer Signal-to-Noise Ratio (SNRi) from the InfoDR chart — a measure of the detectability of an object. It increases with object size, and is affected by image processing.

Plot of SNRi in dB for w x 4w rectangles versus patch density, LX7-V2 image
  1. Object detection error Probability (ODEP), which should correlate well with performance measurements when the correct feature size (a fraction of the total object size, based on a defined task: Detection, Recognition (Classification), or Identification) and contrast are chosen. It is derived from SNRi. \(ODEP = frac{1}{2} text{erfc}(frac{SNRi}{2 sqrt{2}})\)

Plot of log10 bit error rate from SNRi, showing good and poor performance regionsLog10(Exposure in Lux-sec) for 6440 Lux max
  1. (Under review due to scaling issues) Edge location standard deviation (σ) — a measure of how well the position of the object can be located. It is relatively independent of object size and is also affected by image processing.

A matched filter defines the optimum image processing for a specific measurement and object. Practical filter (equalizer) design involves a mild tradeoff for the wide range of objects that need to be detected.

The above metrics (C, SNRi, and ODEP) are derived from Spatially-dependent noise power (N(x)), Noise Power Spectrum (NPS(f)), and Noise Equivalent Quanta (NEQ(f)). The latter two information metrics share a common kernel, \(K(f) = MTF^2(f) / NPS(f)\). Information metrics are the basis of the ISO 23654 standard, now under development.

The settings for obtaining information calculations with slanted-edge analysis programs are summarized in How to obtain image information capacity.

These two pages contain detailed introductions to image quality testing and information metrics. Strongly recommended.

Image quality testing based on information metrics is an excellent introduction to image quality measurement (a primer or short course), focusing on the new image information metrics without going too deep into the technical rabbit hole. It stresses the importance of spatial and tonal measurements.

Image information metrics from slanted edges is the best technical introduction to the new metrics, with a full set of equations. It is a revised and updated version of a paper presented at Electronic Imaging 2024,

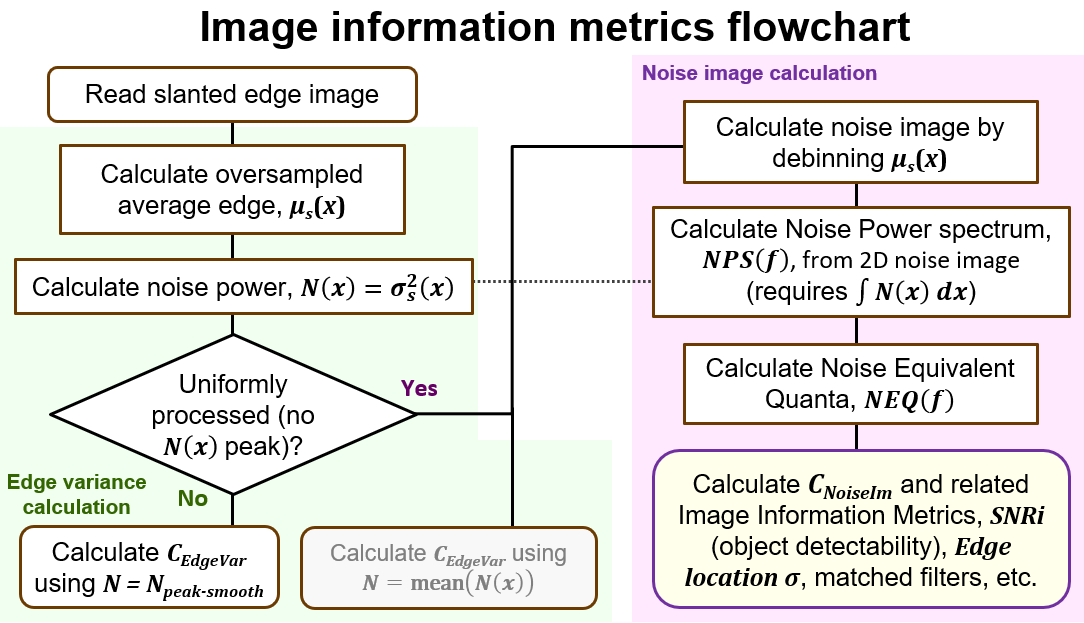

Image information metrics flowchart from slanted edge image to noise image and SNRi calculations

For uniformly processed-images, only CNoiseIm, which is more accurate than CEdgeVar , is reported. NoiseIm is omitted because it is always implied. The edge contrast (ratio) is usually reported in its place, i.e., C4 for 4:1 contrast edges.


Norman Koren presented a short course and two technical papers at
      Electronic Imaging 2026 in Burlingame, California, March 2026.

PDF handouts of the presentations are available for download, below.

Video: Image Information Metrics in Imatest

Slanted Edge Based Measurements: Information Capacity & More

Documentation, white papers, and instructions

Updates — We continue to learn new things about the information metrics.

The most important added calculation is Object Detection Error Probability (ODEP), which is a function of ideal observer SNR, SNRi. It a true metric for camera performance, i.e., how well an object can be detected. It requires the definition of a task (Detection, Recognition (Classification), or Recognition (DRI)). The most common task is Recognition: determining the type of object— car, person, boat, plane, etc.

Key metrics used to quantify machine vision system performance are Mean Average Precision (mAP) and Intersection over Union (IoU). We will be working on verifying the hypothesis that SNRi is a predictor of mAP and Edge Location σ is a predictor of IoU.

Recommended White Papers

Image information metrics from slanted edges, (Adapted from a paper presented at Electronic Imaging 2024) is a detailed technical introduction to the new information metrics with the full set of equations.

Image quality testing based on information metrics is a concise tutorial/short course/textbook for camera image quality testing, primarily for machine vision, focusing on the new metrics derived from information theory, which are highly predictive of camera performance. Not overly technical. Emphasizes the importance of both spatial and tonal measurements.

Other White papers

Camera Information Capacity from Siemens Stars (2020) describes a method that is slower and less convenient than the slanted edge, but better for observing the effects of image processing artifacts such as demosaicing, data compression, etc.

Introduction to Image Information Metrics  is a concise introduction to image information capacity and related metrics, with a minimum number of equations and technical detail. Most of the material is on this page or on Image information metrics from slanted edges.

Image Information Metrics and Applications: Reference  (41 pages) has all the equations and technical detail, but it may be challenging to read. It’s the primary reference for the metrics. Most of the material is on Image information metrics from slanted edges.

Imatest software documentation web pages

Older or obsolete pages

Conferences (newest first)

EMVA (European Machine Vision Forum), October, 2025, Furth Germany.  Norman Koren presented a paper describing how to use EMVA 1288 measurements for the Simatest noise model.

Autosens USA 2025 — Detroit, June, 2025.  Norman Koren presented a 2 1/2 hour short course, Information Metrics for Optimizing  Machine Vision Systems, that included an introduction to the Camera/ISP simulator, Simatest.

Electronic Imaging 2025, February 5, 2025, Burlingame, California (near SFO).  Norman Koren presented a two hour short course, Information Metrics for Optimizing  Machine Vision Systems.

Autosens Europe 2024 — Barcelona,  Norman Koren, gave a three-hour tutorial on image information metrics.

Autosens USA 2024 — Detroit  The keynote talk, New camera quality measurements for optimizing Machine Vision systems (slides in PDF format), updated to include Edge location standard deviation (σ), is available for downoad here.

Electronic Imaging 2024  Norman Koren presented a one-hour keynote talk on Image Information Metrics at Electronic Imaging 2024 in Burlingame, California. The updated and revised version of the talk (Image information metrics from slanted edges) is strongly recommended. The slides from the talk (PDF format) are available for download here.  (The original paper is available for download here.)

International Standard ISO 23654 (in development)

ISO 23654 began development in early 2023. Based on ISO 12233, it will specify how to calculate information capacity and related metrics from slanted edges. It is in the PWD (preliminary working draft) phase. It is open to new members.

Call for Participation

We are interested in working with machine vision and computer vision experts who are experienced with studying how image quality metrics correlate with object detection performance in computer vision systems.  Please contact [email protected] if you are interested.
