BOULDER, CO -September 12, 2019—Imatest, a global image quality testing solution provider is pleased to announce Imatest 5.2. With this new Imatest release, the Imatest team adds several new features to provide better analysis tools and new options. (more…)
Boulder, Colorado, August 30, 2019—Imatest, a global provider of image quality testing solutions, now offers a Modular Test Stand (MTS) that enables you to produce superior cameras while significantly reducing time spent in the lab.
“The Modular Test Stand is an easy-to-use platform that facilitates precise setup and repeatable camera positioning for consistent imaging tests,” says Henry Koren, director of engineering at Imatest. “And it is configurable so it accommodates your camera system.” (more…)
We are pleased to announce that beginning January 2019, we are offering Imatest branded light panels and boxes. Imatest has responded to feedback from our customers by creating these two new uniform light sources. Our new LED Lightbox and Light Panel offer a wide variety of light intensities and color temperatures including near-infrared channels. We designed them to integrate easily with test fixtures, allow for precise chart alignment with chart rails, and to serve a variety of testing scenarios.
“We wanted to offer our own Imatest branded hardware that has been vetted and tested by our engineers which enable reliable results when used with our software and test charts. Our goal is to provide solutions for image quality testing that produces the results our customers need to exceed their expectations. The Imatest Light Panels and Lightboxes are made with the same high standards for quality that are found in our charts and software,” says Christian Taylor, Imatest’s Hardware Engineering Manager.
We now offer a complete, customizable image quality testing solution for Security camera systems to provide our customers with an easy, effective way to outfit their labs. While working with some of the top security camera manufacturers, our engineers have compiled all of the necessary lab materials in a convenient package. The package includes options for software; reflective, transmissive, tunable, and ultra-wide light sources; test fixtures for a variety of fields-of-view and focus distances; and applicable test charts to analyze crucial image quality factors.

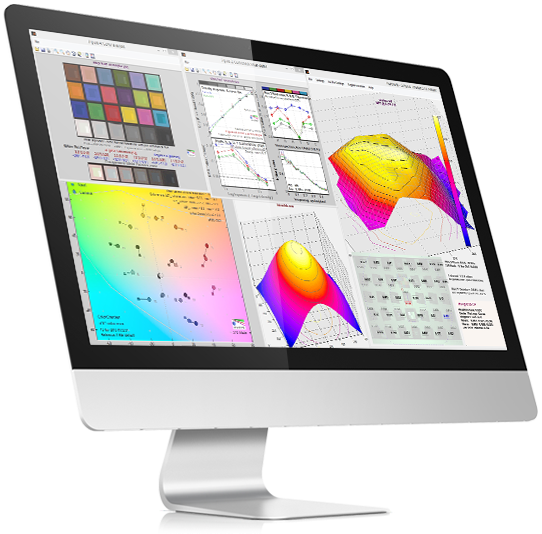

Our engineers are continually adding new features and updating Imatest software to provide you with the best analysis tool on the market. In our most recent release, our team has added several new modules to provide you better analysis tools. Here are the top three new features, and why should upgrade to Imatest 5.1:
- Compensate for chart MTF to perform accurate high-resolution or close-distance sharpness tests
MTF Compensation reduces the impact of the chart on measured imaging system MTF.
- Geometrically calibrate single or multi-camera devices obtaining camera intrinsic and extrinsic matrices for accurate machine vision and ADAS applications
A geometrically calibrated device provides a mapping between pixel coordinates and real-world position.
- Direct image acquisition for Sony sensors
Imatest now supports direct image acquisition from Sony sensor development boards through the Sony AYA software tool.
The release of Imatest 5.0 introduced a number of powerful new features, including the Arbitrary Charts module which enables Imatest analysis of test chart designs which would be otherwise unsupported by the software. This new module allows user-defined chart layouts for any situation which requires one.
The primary concept of Arbitrary Charts is that the user supplies a chart-definition text file which declares the location and properties of features on a test chart. The features can be placed in essentially any configuration and Imatest will still be able to automatically analyze the chart.
Here at Imatest, we believe we’ve designed some very comprehensive test charts, such as our flagship SFRplus and eSFR-ISO charts. These charts are designed to provide a number of image quality factor measurements, work with an extremely wide range of cameras, are available in pre-distorted versions for wide-angle lenses, and more. They each have their own dedicated modules in Imatest which recognize these chart designs.
While we highly recommend the use of these and our other standard charts, we also recognize that there are situations which may require a more custom target. For example:
Working with a legacy database of test images of an older chart
Meeting a test spec which requires specific, non-standard targets
custom reticles for collimator systems
Special combination charts for accelerated testing
P1858 Combination Chart Conception
As mentioned above, some situations require a custom target, including the need to combine charts for accelerated testing. Early in 2017, a customer and frequent collaborator approached us about adding support for a new chart. The IEEE p1858-2016 Cell Phone Image Quality standard requires images of at least five different standard test charts for the complete set of seven metrics. The customer wanted to significantly reduce the need for several charts by developing a test chart that provides a “good enough” measurement of all of the metrics from a single image. We worked together with them, jointly developing what would become the P1858 Variation Combo Chart and the Arbitrary Charts Module.
The immediate goal in this case was to reduce testing time of a device by at least a factor of five. (This is likely a low bound on the time savings, as switching between test targets is typically the most time-intensive part of a well-tuned automatic test bench.) The customer wanted results that, even if they weren’t technically in spec, would provide an indication of how a test device would score on a full-fledged CPIQ test, and wanted them to be produced quickly.
This would, of course, require a set of compromises on the CPIQ metrics:
SFR measurements from just outside of the center of field, instead of dead center
24 color patches based on the X-Rite ColorChecker instead of the 140 of the ColorChecker SG
Color Uniformity results measured from the chart background areas between the other features, rather than an entire flat-field image
Chromatic Aberration and Geometric Distortion measurements from slanted edges around the field, instead of the dot pattern
These changes from the CPIQ spec were deemed acceptable for this purpose, and the P1858 Combination Chart was born. This design is now publically available, with the approval of the original customer.
Using the Arbitrary Charts Module
We have been very happy to collaborate with Imatest on their new 5.0 release to allow us to design a combination chart that reduces our objective metric capture needs, improving our productivity and eliminating the challenge of correlating data from multiple capture conditions.
– Lead Imaging Scientist, Imatest Customer
At first glance, the P1858 Combination Chart looks very similar to Imatest’s standard eSFR-ISO chart.
The most obvious difference here is that there is the dead leaves texture pattern in the center of the chart instead of a slanted square. However, there are many other subtle differences which would make this completely unusable by our standard eSFR-ISO module:
The grayscale OECF patches have been enlarged and moved outward
Extra color patches have been added to approximate all of the patches on the X-Rite ColorChecker
Four individual slanted edges have been added on the inside of the OECF patches, so SFR measurements are still possible near center of field
In general, the positioning of wedges and slanted squares is different
These differences preclude any standard module in Imatest from performing an automatic analysis of the chart (though selections of slanted edges and wedges could be made manually in individual images using the SFR and Wedge modules, respectively – not a great solution).
Fortunately, this chart was designed in concert with the development of the Arbitrary Charts module, with the express purpose of making analysis of this sort of chart automatic and systematic. Moreover, not only can the combined results be produced from a single image but they are produced from a single module run in Imatest. Instead of running a module to analyze the color, a module for sharpness, a module for uniformity, etc., the Arbitrary Charts module simplifies the testing procedure and output parsing.
The ability to configure our own charts is revolutionizing our approach to quantitative image quality testing and test development.
-Lead Imaging Scientist, Imatest Customer
As an added bonus, the customer is able to make slight changes to this design at will and simply update the chart definition file supplied to the module, without having to wait for new builds of Imatest to catch up.
Learning to Use Arbitrary Charts
The capability to analyze user-defined charts is new in Imatest 5.0, and is under continual development. New capabilities are being added to the Arbitrary Charts module with each release.
Further information about the Arbitrary Charts module and its current capabilities can be found on its documentation page.
The most important novel aspect of working with this module is the introduction of the chart definition file which enables the software to understand images of the test chart. To help communicate the role and construction of this file, we are producing a series of short videos that describes the process.
