Robotic Automation reduces manual work during product development. By executing automated image quality testing, you can eliminate discrepancies between tests. Dynamic camera alignment and tunable distance parameters increase repeatability of tests, decrease errors, and minimize in-house resources needed for testing. Program your lab to test multiple scenes with one device, and implement feedback control loops for automated lighting adjustments.



Basic Information

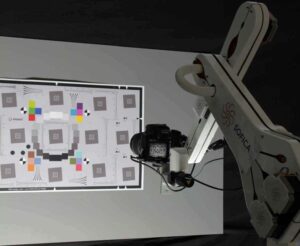

Move test devices into position for different charts or scenes with a 6-axis robot arm with 500mm (20″) reach in any direction and 360-degree waist rotation.

The Sofica Chart Carousel is a cost-effective and reliable automatic test chart changer, which can be used in any imaging quality laboratory.

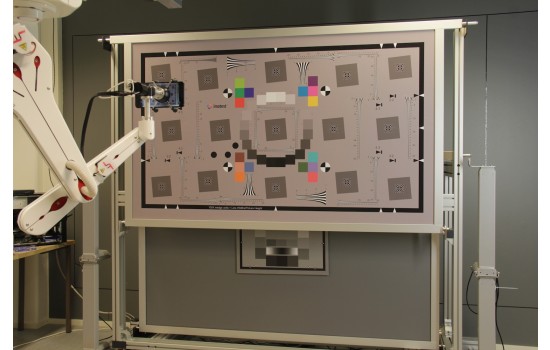

The Automatic Test Chart System places test charts into the imaging plane automatically and precisely, offering quick interchangeability between many charts at the touch of a button.

Upgrades & Key Features

  • Upgrade to S17 with 750mm (30″) reach
  • Optional S-Track available: 2-4 meter length
  • Automated lighting control feedback
  • Chart carousel
  • Custom size up to 8 panels available.
  • Carousel can be equipped with multiple LED lightboxes and transparent testing targets.
  • Base System offers 8 steel panels, each measuring 122×152.4cm (48×60″)
  • Charts mount magnetically to neutral gray panels
  • Carries the test chart into the precise test position, reducing testing errors
  • Custom sizes available

Key Benefits

Decrease possibility of mistakes during testing

Increased repeatability with robotics and automation

Obtain test images from different targets automatically

Can be used as part of Sofica IQLaR – automated testing system

Accommodates both small and large-sized test charts.

The System uses sensors/detectors to automatically return charts to the correct stowed position when no longer in use.

Controls

Custom IQLaR API enables automatic camera alignment and lighting controls

Integrate with any testing system using the Sofica Chart Carousel API

Custom software control and manual controls



Related Software

Image quality analysis supported by Imatest Master

Related Image Quality Factors

Sharpness     |     Noise     |     Texture Detail     |     Color     |     Distortion     |     Chromatic Aberration

Related Industries

Automotive     |     Mobile     |     Security

Related Standards

CPIQ Local Geometric Distortion     |     ISO 17850 — Geometric distortion (GD) measurements
