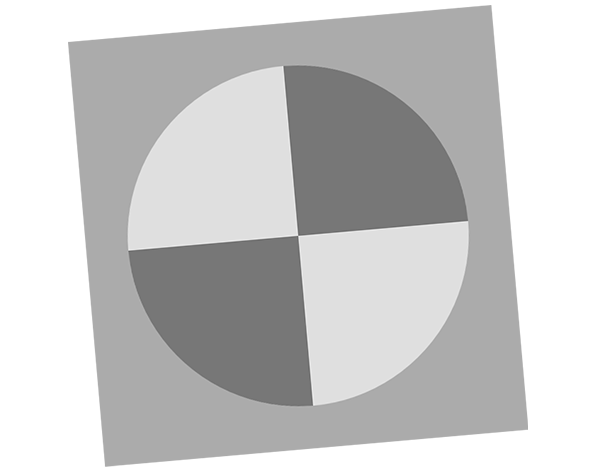

SFRreg Titled
images

SFRreg Titled

SFRreg Registration High Contrast
images

SFRreg Registration High Contrast

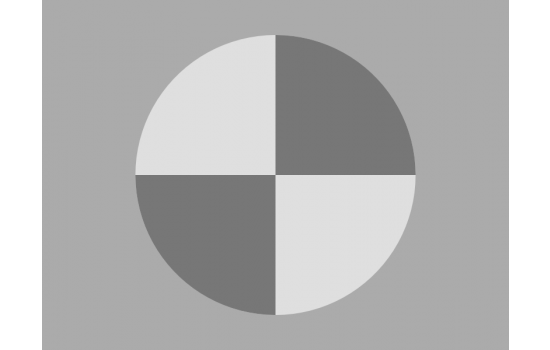

SFRreg Test Chart - Image 3
images

$100.00 – $600.00

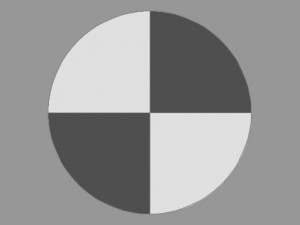

The SFRreg test target consists of a slanted-edge quadrant pattern enclosed within a circle. It is used for measuring MTF and lateral chromatic aberration. A test image typically contains several targets that are automatically detected and analyzed by Imatest beginning with Version 4.2.

Distortion Note: High amounts of distortion where the target may be compressed so that the major axis is 50% larger than the minor axis may have issues with autodetection. Pre-distortion may be necessary for these cases.

Download PDF Info Sheet

Quantity Discount Per Item Price
5-8 20% $80.00
9-99 30% $70.00
Quantity Discount Per Item Price
5-8 20% $120.00
9-99 30% $105.00
Quantity Discount Per Item Price
5-8 20% $112.00
9-99 30% $98.00
Quantity Discount Per Item Price
5-8 20% $160.00
9-99 30% $140.00
Quantity Discount Per Item Price
5-8 20% $240.00
9-99 30% $210.00
Quantity Discount Per Item Price
5-8 20% $312.00
9-99 30% $273.00
Quantity Discount Per Item Price
5-8 20% $400.00
9-99 30% $350.00
Quantity Discount Per Item Price
5-8 20% $480.00
9-99 30% $420.00
Quantity Discount Per Item Price
5-8 20% $480.00
9-99 30% $420.00
Quantity Discount Per Item Price
5-8 20% $160.00
9-99 30% $140.00
Quantity Discount Per Item Price
5-8 20% $240.00
9-99 30% $210.00
Quantity Discount Per Item Price
5-8 20% $312.00
9-99 30% $273.00
Quantity Discount Per Item Price
5-8 20% $400.00
9-99 30% $350.00
Quantity Discount Per Item Price
5-8 20% $80.00
9-99 30% $70.00
Quantity Discount Per Item Price
5-8 20% $112.00
9-99 30% $98.00
Quantity Discount Per Item Price
5-8 20% $160.00
9-99 30% $140.00
Quantity Discount Per Item Price
5-8 20% $240.00
9-99 30% $210.00
Quantity Discount Per Item Price
5-8 20% $312.00
9-99 30% $273.00
Quantity Discount Per Item Price
5-8 20% $400.00
9-99 30% $350.00
Quantity Discount Per Item Price
5-8 20% $128.00
9-99 30% $112.00
Quantity Discount Per Item Price
5-8 20% $80.00
9-99 30% $70.00
Quantity Discount Per Item Price
5-8 20% $112.00
9-99 30% $98.00
Quantity Discount Per Item Price
5-8 20% $128.00
9-99 30% $112.00
Quantity Discount Per Item Price
5-8 20% $112.00
9-99 30% $98.00
Quantity Discount Per Item Price
5-8 20% $128.00
9-99 30% $112.00
Quantity Discount Per Item Price
5-8 20% $160.00
9-99 30% $140.00
Quantity Discount Per Item Price
5-8 20% $240.00
9-99 30% $210.00
Quantity Discount Per Item Price
5-8 20% $312.00
9-99 30% $273.00
Quantity Discount Per Item Price
5-8 20% $400.00
9-99 30% $350.00
Quantity Discount Per Item Price
5-8 20% $80.00
9-99 30% $70.00
Categories: , Tag:

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

Download PDF Info Sheet SFRreg targets can be placed at arbitrary positions and angles to accommodate a wide variety of test cases:

  • Long distance tests where conventional charts would be impractically large
  • Ultra-wide Field of View tests (>170) where a flat target cannot reach the outer field
  • Autofocus tests where a single frame can contain several targets placed at different distances

Watch this video and see the SFRreg module in action.

Available substrates: High Precision Film, Reflective Inkjet and Transmissive Inkjet. Available in 10:1 or 4:1 contrast ratios. Inkjet substrates are also available for NIR testing upon request. (Append SKU with “-NIR”.)

Reflective & Transmissive Inkjet size options

Size Reg Mark Diameter Total Media Size
0.5x 100mm (3.94″) 125mm x 165mm (4.92″ x 6.50″)
1x 200mm (7.87″) 250mm x 330mm (9.84″ x 12.99″)
1.5x 300mm (11.81″) 375mm x 500mm (14.76″ x 19.69″)
2x 400mm (15.75″) 500mm x 665mm (19.69″ x 26.18″)
3x 600mm (23.62″) 750mm x 1000mm (29.53″ x 39.437)
4x 800mm (31.50″) 1000mm x 1330mm (39.37″ x 52.36″)
5x 1000mm (39.37″) 1105mm x 1665mm (43.50″ x 65.55″)

Quantity discounts on inkjet REG charts. 20% discount on orders of 5-8 targets. 30% discount on orders of 9+ targets. Discount will show in shopping cart.



High precision Color LVT film target

  Reg Mark Diameter   Total Media Size
157.88mm
(6.22″)		 203.2mm x 254mm (8″ x 10″)

Please contact charts@imatest.com for additional customization options.
