For lenses that focus out at long distances, to verify ability to focus on distant objects you will need a target system that produces an image that is at or beyond the hyperfocal distance of your lens. You can use our chartfinder utility to determine the size of your imaging plane at a distance based on your lens’ angular field of view.

Jump to: Collimator Fixture  |  IMTS Target Projection | IBTS Stray Light/Target Projector Version | Projection Collimators | Multi-collimator systems  | Physical Targets

Virtual Target Projection Systems

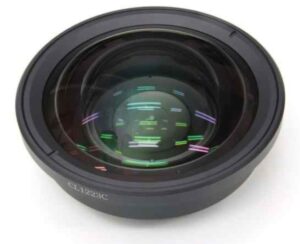

120° Collimator Lens

A collimator lens (also known as a close-up lens or relay lens) can change the distance at which an object appears. These optics along small high-precision test targets and light sources can produce a virtual image which appears as if it is at a long distance.[1]

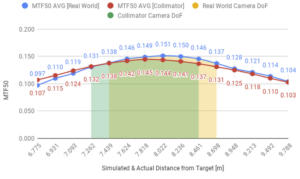

Imatest has performed a Verification of Long-Range MTF Testing Through Intermediary Optics. You should try to understand what impacts of any additional elements in the optical path may have on your measurements.

Imatest offers a range of collimator products which can be can be configured to test fields of view between 1° and 180°.

Precisely aligning the test chart with the collimator and the unit under test so that all parts are aligned on a single optical axis becomes the challenge with this solution. Any lens system will focus best in the center, and the on and off-axis quality of the conversion lens affects the measurements that you obtain. This means that the measurements you take, and how they are compared to any of the pass/fail requirements will need to be adjusted to consider the loss of resolution due to the collimator.

1-10° Target Projection Collimator

In order to verify long-range focusing, collimators are key components of manufacturing equipment which operates in a factory environment. Imatest and our network of partner companies have the optomechanical engineering expertise to provide you with a complete testing system that fits your product.

Collimator Fixture

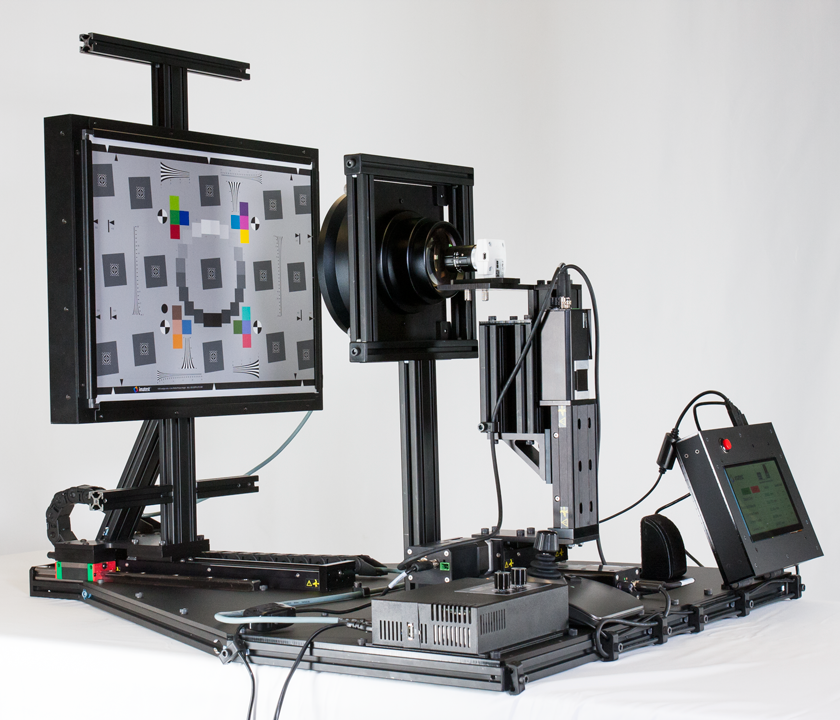

The Imatest Collimator Fixture can test your imaging system at distances up to infinity[ within the limited space of a test lab. The Fixture is configurable to your working distances and fields of view with an adjustable lens-to-chart distance, interchangeable collimating lenses, and charts. This relay lens system is ideal for R&D.

The Collimator Fixture integrates with Imatest LED Light Panels, sizes C through G, and includes a joystick and computer-control interface for automatic positioning using four motorized stages as well as storage and recall of device positions.

Imatest Collimator Ecosystem
ISO 12233 2017 Size G Lab Bench for Tabletop Testing Blackout Curtain Fixture Light Panel Size D Light Panel Size G Light Panel Size C Checkerboard Inkjet Target Size D SFRplus Transmissive Inkjet Size C 90 degree collimator 70 degree collimator lens with 15mm entrance pupil 120 degree collimator lens with for 4.5mm entrance pupil optics Imatest Collimator Fixture

Light Panel Size G


Collimator Fixture Video

For more information, pricing, and current lead time, contact sales@imatest.com

Download PDF Info Sheet

Imatest Modular Test Stand Target Projection Module

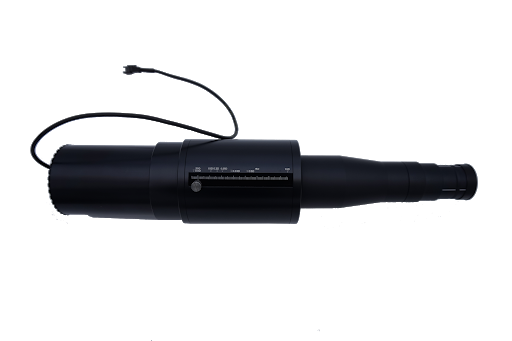

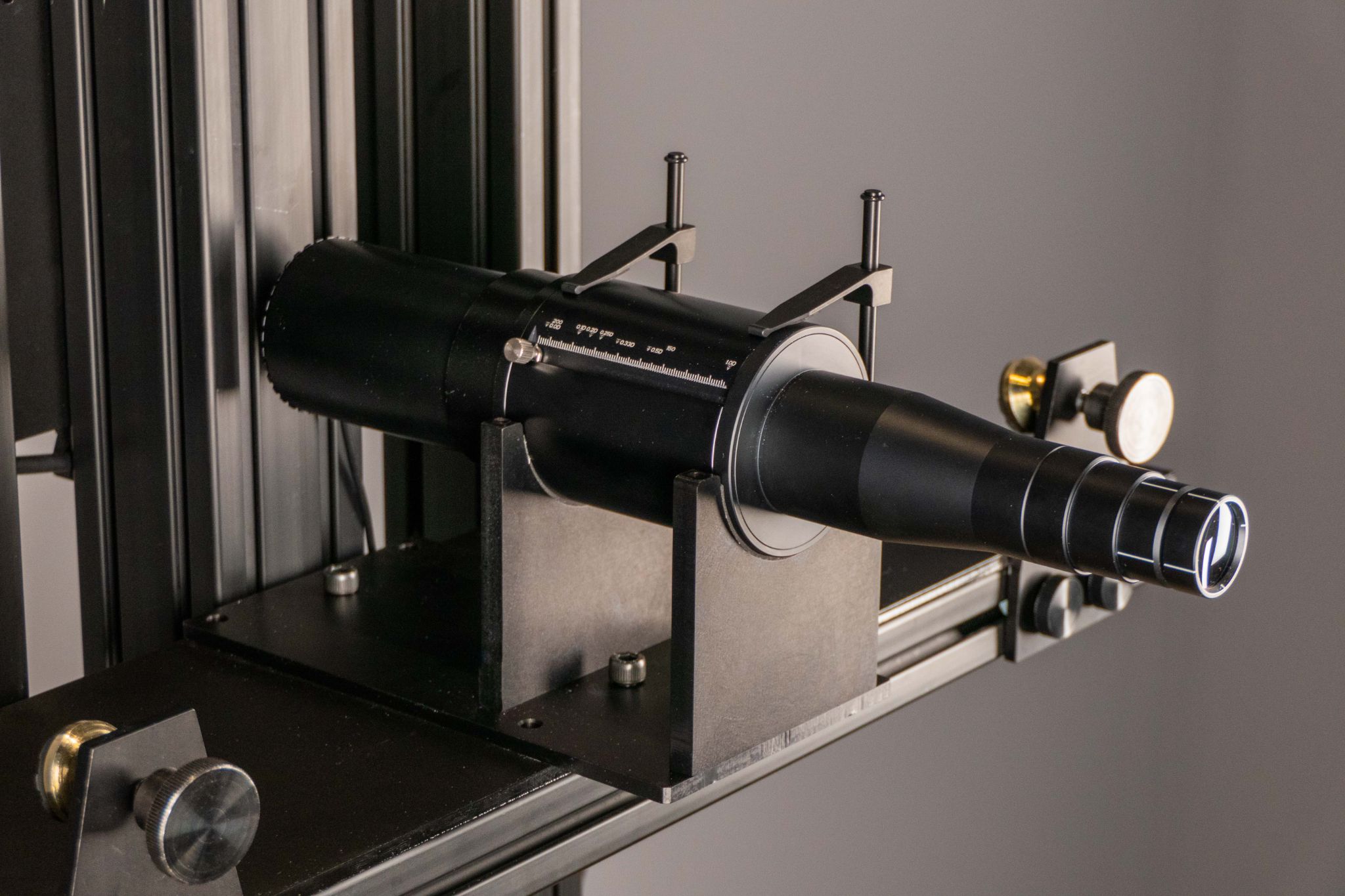

The Imatest Modular Test Stand ecosystem offers an optional Target Projection Module that allows you easily simulate long test distances in a confined space by mounting the OSCM10120 Target Projection Collimator securely on the MTS in alignment with the camera under test.

A manually adjustable diopter barrel allows you to set projected target distances from 1m-infinity with a 10º inspectable field of view.



Imatest Benchtop Test Stand-Stray Light/Target Projector Version

Imatest BTS Stray Light Fixture

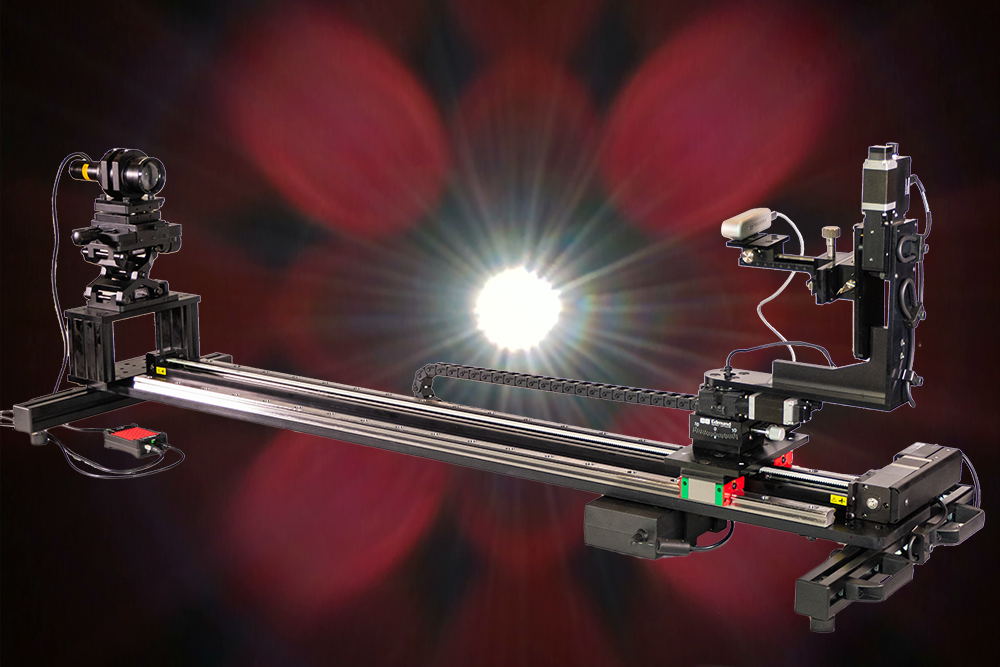

Another option for testing long range in an even smaller space is the Imatest Benchtop Test Stand-Stray Light/Target Projector Version (BTS-SLTP). This easy-to-use test fixture features a rail system for repeatable test positions and is available in manual or motorized version. The total length of the fixture is 1372mm. This fixture requires a motorized Gimbal (sold separately).

Add the OSCM10120 10° Projection Collimator (sold separately), and the manually adjustable adjustable diopter barrel allows you to set projected target distances from 1m-infinity with a 10º inspectable field of view.

Projection Collimators

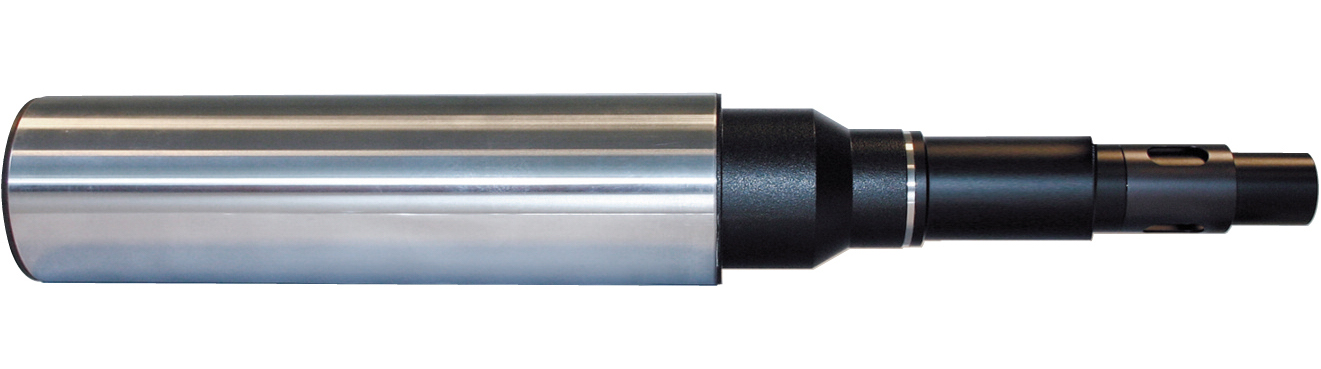

The CM10120 system allows users to simulate a test distance from 1m – infinity. This is useful for testing camera systems that have long focus distances since lab space and production line space are usually limited. The simulated distance (i.e. object distance) is manually adjustable across the entire range. The CM10120 is not intended to fill the camera FOV for most camera systems. The target projected by the CM10120 can be used for testing a given region of the camera FOV, making it useful for tasks such as setting focus or checking for pass/fail criteria. Multiple units can be configured to project multiple targets into a camera if simultaneous multi-region testing is required.

Multi-collimator systems

For wide FoV lenses, it becomes more difficult to cover all the locations on your lens which you are interested in testing. So several collimators may be used that are directed into your lens.





Imatest Collimator Fixture VP K50/40 CM10120
  • Designed to fill camera FOV (up to 120º DFOV)
  • Motion stages for camera positioning and distance control
  • Can simulate distances from 400mm – infinity
  • Controlled by onboard computer with easy-to-use interface
  • Accommodates a wide range of targets
  • ILP available in a range of color temps
  • Supports VIS or NIR
  • Projects a target into camera FOV (inspectible FOV of 10º), i.e. does not fill camera FOV
  • Camera positioning done manually
  • Simulates a distance of infinity
  • LED dimming controlled by manual controller
  • Uses high-precision CoG target reticle (SFRreg)
  • Highly precise – high quality optics, construction tolerances, and target reticle
  • Only available in VIS
  • Projects a target into camera FOV (inspectible FOV of 10º), i.e. does not fill camera FOV
  • Camera positioning done manually
  • Can simulate distances from 1m – infinity
  • LED dimming controlled by manual controller
  • Uses B&W LVT film target reticle (SFRreg)
  • Useful for testing most camera modules
  • Available in VIS or NIR

Physical Targets

SFRreg resolution test target

It is possible to assemble large test chart systems, but the process of producing, mounting and protecting a large test chart, and achieving uniform glare-free lighting becomes more costly and complicated as you increase your chart size. Indoor tests require long dark spaces, outdoor tests are complicated by atmospheric distortion[3] and durability[5] of the target.

As your desired test distance becomes longer, filling your camera’s field of view with a single target such as eSFR ISO, SFRplus or Checkerboard can become prohibitive. The SFRreg Imatest Analysis module and SFRreg test chart enable a flexible target that can be automatically detected and rapidly analyzed by Imatest software.

if you are interested in these sort of test targets, contact our charts department at charts@imatest.com or submit our chart finder form with details about your camera system.

Request a Solution
