Ultra-Wide cameras and lenses are becoming increasingly common. Traditional image quality testing is performed with flat planar test targets and does not work for fisheye (highly barrel-distorted) lenses. Imatest offers several methods for testing wide-angle imaging systems.

Resolution Test Equipment

Basic Information

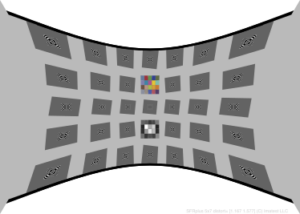

Designed with built-in pincushion distortion (the inverse of barrel distortion) so that the image used for SFRplus analysis has relatively small amounts of distortion.

You can select pre-distorted charts in the Imatest Store by using the Distortion dropdown menu on a configurable chart. Or you can select the SFRplus Automotive Test Chart.

Unlike standard test charts, SFRreg patterns do not need to be located on a flat (planar) surface. Since Region of Interest (ROI) detection is automatic, they may be positioned where needed.

The WFOV Module is an add-on to Imatest’s Modular Test Stand and provides an easy to use platform for sharpness testing of wide FOV camera systems. It enables fast and efficient testing of WFOV systems that are otherwise difficult to characterize due to the non-planar nature of their imaging plane.

Field of View range

  • Normal Distorted: 85-120º FoV
  • Extra Distorted: 120-150º FoV
  • Custom Distorted: up to 160º FoV
  • Any FoV
  •  Test cameras with diagonal FOV 140º – 200º

Obtainable Measurements

  • Sharpness and resolution
  • Chromatic Aberration
  • If chart parameters are entered, distortion and FoV are calculated.
  • Color
  • Tone
  • Noise
  • Tilt
  • Rotation
  • Sharpness and resolution
  • Chromatic Aberration
  • Ultra-wide angle
  • Extremely high resolution (>50 Megapixels)
  • Measure sharpness at several distances in a single image
  • Test images at long range using a projection system or a large printed target
  • Sharpness and resolution
  • Chromatic Aberration

Target Substrate

  • Reflective or Transmissive
  • Reflective or Transmissive
  • Reflective

Target Size

  • 100mm (3.94”) – 1000mm (39.4”)
  • Testing under 1m with <160º FOV: 4 Outer targets: SFRreg – Size 0.5x, 1 Center Target: eSFR ISO – Size 2x
                                                                • Testing under 1m with >160º FOV: 4 Outer targets: SFRreg – Size 1x, 1 Center Target: eSFR ISO – Size 2x
                                                                • Testing over 1m: 4 Outer targets: SFRreg – Size 1.5x, 1 Center Target: eSFR ISO – Size 4x



Uniformity Test Equipment

Basic Information

The latest innovation in uniform intensity light sources. The SpectralLED family of tunable light sources incorporate up to 35 discrete wavelengths for synthesis of commercially available light sources or based on spectra that you import.

  • Unprecedented Resolution and Accuracy – 35 Discrete LED Wavelengths Covering the Visible and NIR
  • Powerful Synthesis Engine – Quickly Simulate any CIE Illuminant or Macbeth™ / X-RITE™ Color Patch
  • Flexible Interface – Built-in RMS Spectral Fitting for Simulation of Any User Imported Spectra

The LB2 Spherical Lighting System is available in three models. An optional camera mount works with each model.

  • LB2-S has a single color temperature. Light source options are 2800K/5000K/6500K/IR. 30-10,000 lux (Measured at center of sphere).
  • LB2-D has adjustable color temperature from 2800K – 6500K (Standard). Adjust X1, X10, X100/Step.
  • LB2-HDR has a single color temperature but illuminance 200 to 50,000 lux (10,000 levels).

Field of View range

  • Up to 180º FoV
  • Up to 300° FoV

Obtainable Measurements

  • Luminance Uniformity
  • Color Uniformity
  • Blemishes
  • Defect Pixels
  • Spectral Sensitivity
  • Luminance Uniformity
  • Color Uniformity
  • Blemishes
  • Defect Pixels
  • fsize



Related Software

Supported by SFRplus and eSFR ISO and SFRreg modules

Related Image/Quality Factors

Ultra-Wide     |      Sharpness     |     Noise     |     Texture Detail     |     Color     |     Distortion     |     Chromatic Aberration     |     Dynamic Range

Industries

Automotive     |     Mobile

Related Standards

ISO 12233
