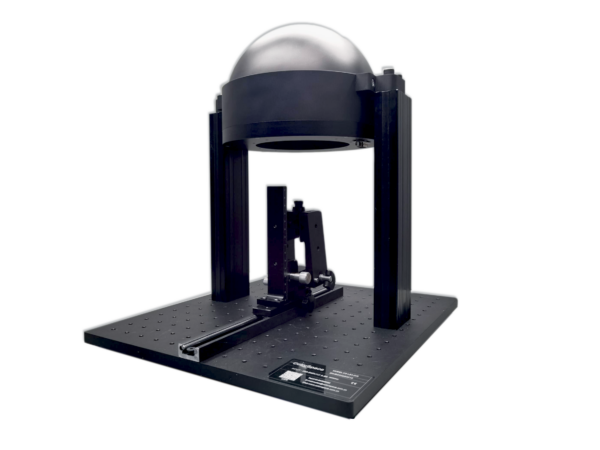

LB3 230° Hemispherical Uniform Lighting System

February 25, 2024
August 1, 2024

$6,700.00$11,200.00

Spherical light source for testing up to 230 deg FoV camera systems. For testing Lens Shading, Color Shading, AE, Blemishes, OTP, etc.

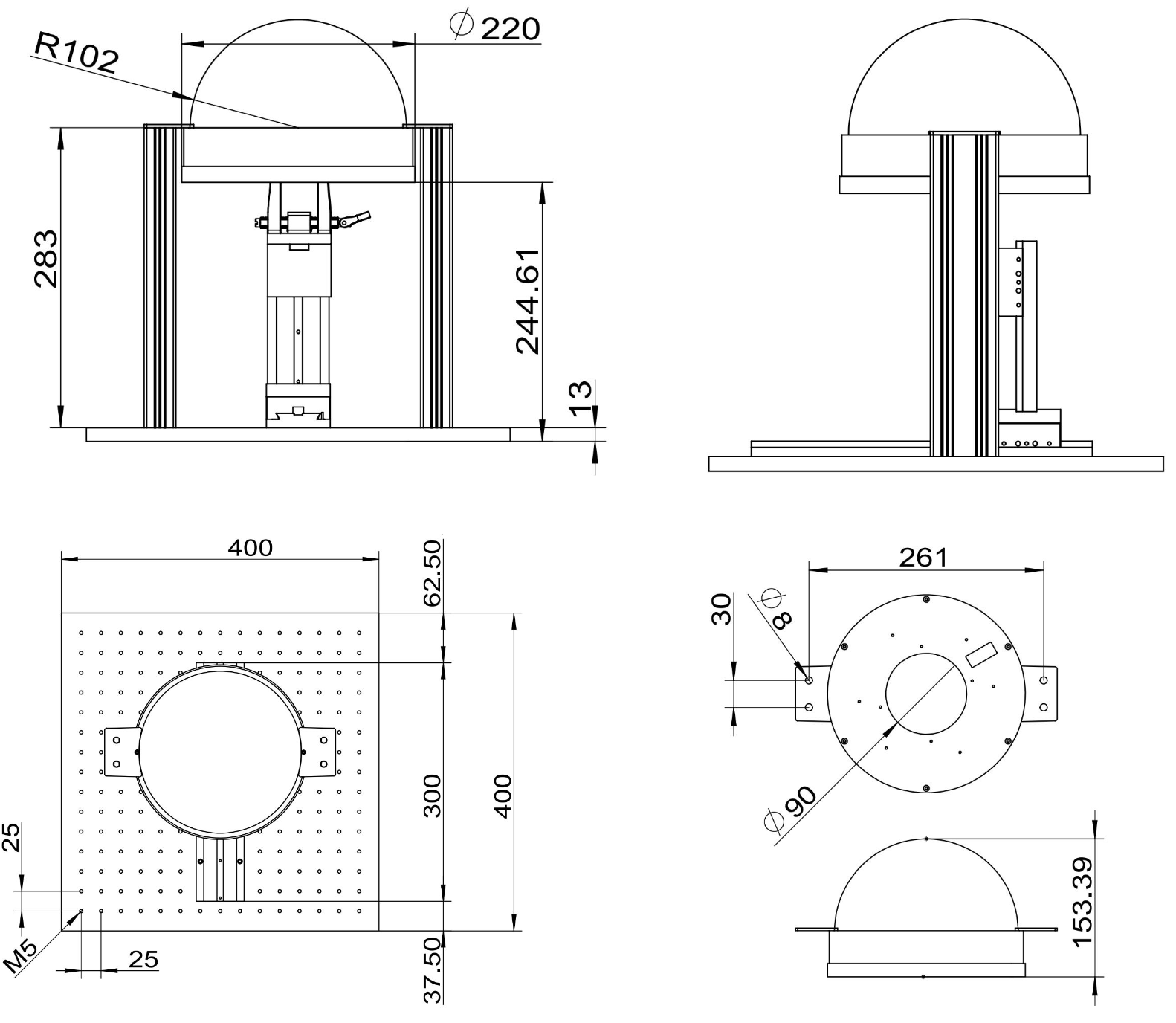

Diameter 200mm or 500mm, opening aperture 90mm or 250mm.

Visible adjustable color temperature range: 2300-6500K.

Optional IR range: 850nm + 940nm.

Optional camera holder.

Download Data Sheet

Description



Model

CS-LB3-D

CS-LB3-DIR

Color Temperature

2300K~6500K

2300K~6500K

IR Range

850nm / 940nm

Illumination Range

10lux – 5000 Lux

10 lux – 5000 Lux

CRI

>95

>95

Uniformity

>95

>95

Applicable FOV

Up to 230°

Control Method

Touch Screen/USB

Control Software

Optional :Light Control3.0 ( To control luminance, CCT etc)

Open API

Optional

External Light Meter

Optional

Test Applicaton

Lens Shading,Color Shading,AE,Blemishes,OTP etc.

Industries

Automotive camera,surveillance camera,360 degree camera,Panorama camera etc.

Accessories

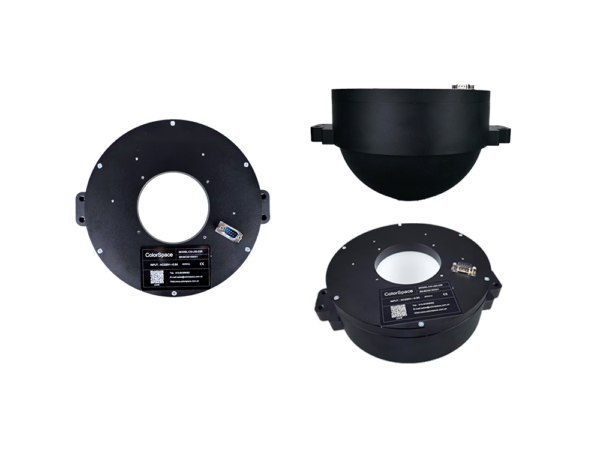

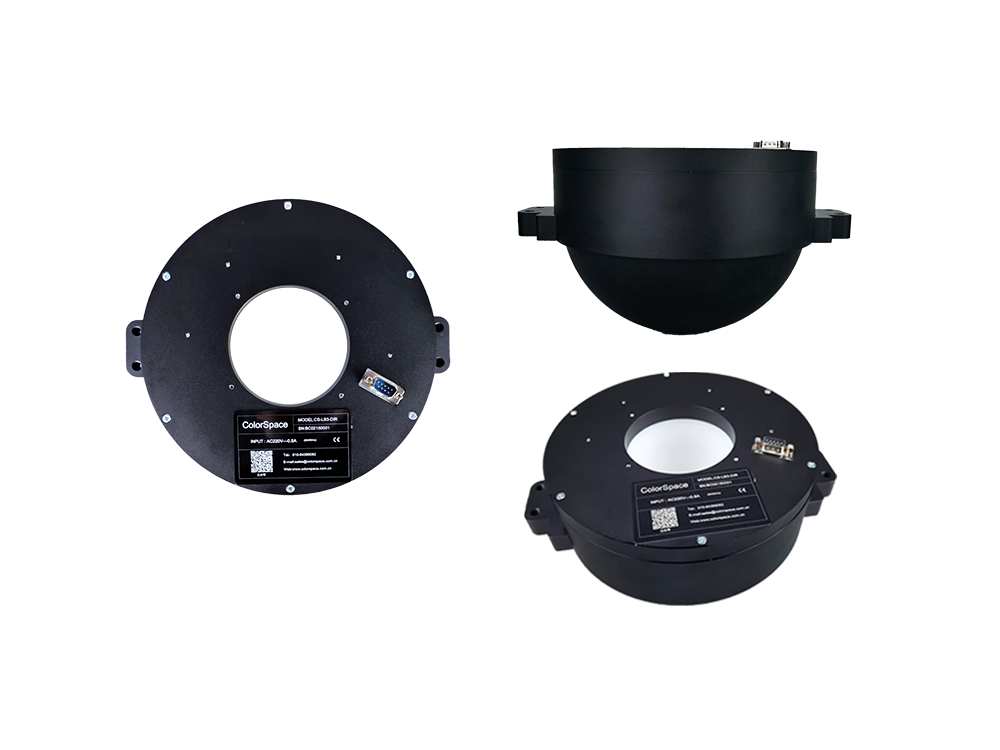

Spherical Light Source × 1 Controller × 1
Power cord × 1
Control line × 1

Optional Accessories

Light source bracket × 1 Camera mounting fixturer × 1

Working Environment

Indoor: 15°C ~ 25°C; Humidity: 30% ~ 50%



Ships from China.
