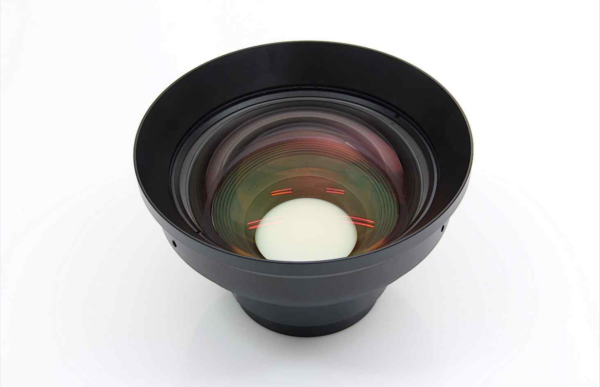

70° Collimator Lens for Medium Field of View

May 15, 2018
September 28, 2024
OSCL736C
images

OSCL736C

$5,800.00

The OSCL736C Collimator Lens is for 70° Field of View or less.

SKU: OSCL736C Categories: ,

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

The OSCL736C Collimator Lens for 70° Field of View or less.

  • Lens Composition: 5 Glass Lenses ( 2 HRI Glass )
  • EFL: 415.1mm
  • Inspectable FOV of CCM: 70 degrees
  • Inspectable Resolution of CCM: ~ 20Mega Camera Lens
  • Ass’y Size: Ф 190.8mm X L 128mm , 3.48kg
  • Exit Pupil Size: Φ15.0mm
  • Exit Pupil Position: 35.6mm (from vertex C/L to CCM)
  • Working Distance (from C/L 1st Lens R1 surface to chart):

263.5mm at Object Distance Infinity
193.5mm at Object Distance 2.0m
145.5mm at Object Distance 1.0m

Object Distance (mm)

Working Distance

Chart Size (Ф, mm)

Infinity
50000
30000
10000
5000
4500
4000
3500
3000
2500
2000
1900
1800
1700
1600
1500
1400
1300
1200
1100
1000
900
800
700
600
500
450
400

263.5
260.1
257.8
247.0
231.9
228.7
224.9
220.0
213.7
205.3
193.5
190.5
187.3
183.7
179.9
175.6
170.9
165.6
159.7
153.1
145.5
136.9
126.8
115.0
101.0
84.1
74.3
63.3

586.4
581.1
577.6
560.7
537.1
532.1
526.1
518.4
508.6
495.5
477.0
472.4
467.3
461.8
455.8
449.1
441.7
433.5
424.3
413.9
402.1
388.5
372.8
354.4
332.6
306.2
290.8
273.6
