ENTTEC DMX USB Pro Lighting Controller

March 27, 2019
December 30, 2020

$250.00

The industry standard interface for connecting PCs and Macs to DMX512 lighting.

SKU: E-DMX Category:

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

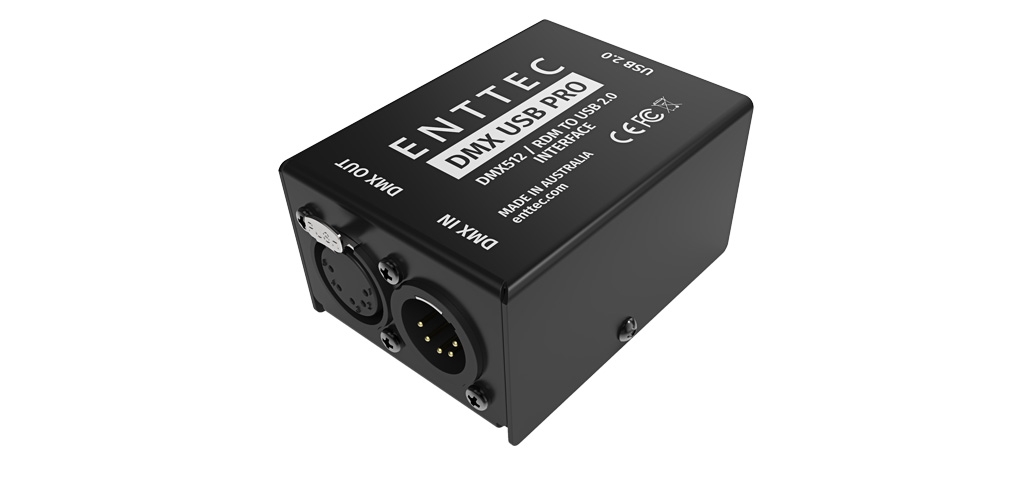

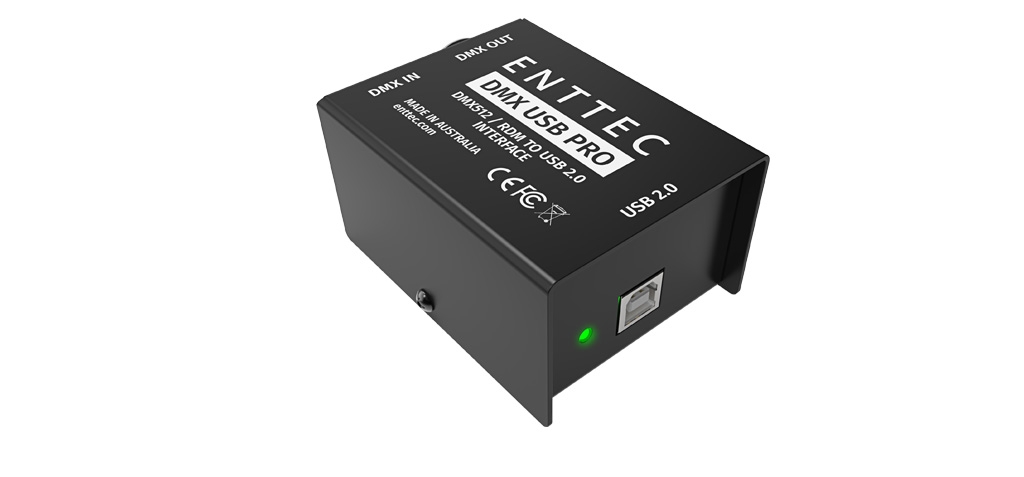

Designed for simple USB connection across Windows, Mac (up to OSX 10.11) and Linux, DMX USB Pro is compatible with our Kino Flo LED DMX Lighting Systems.

Supports either, DMX Input or DMX Output mode. And comes RDM enabled too (with correct firmware). So, no matter what project you have, DMX USB PRO is the perfect device to accompany your computer and software. Internal frame buffering for steady DMX Generation in Output mode.

Refresh Rate configurable from 1 to 40 Fps. Break time is configurable from 96uS to 1.3mS, and MaB is configurable from 10.6uS to 1.3mS. You can even change the firmware to support your requirement. RDM firmware is separate than the DMX one. All done easily with the PRO-Manager App

1500 V full isolation (data and power lines to protect your computer from surges)

Dimensions: 40mm (height) x 57.5mm (width) x 77mm (depth); 1.58” (height) x 2.27” (width) x 3.03” (depth).

Download PDF Brochure
