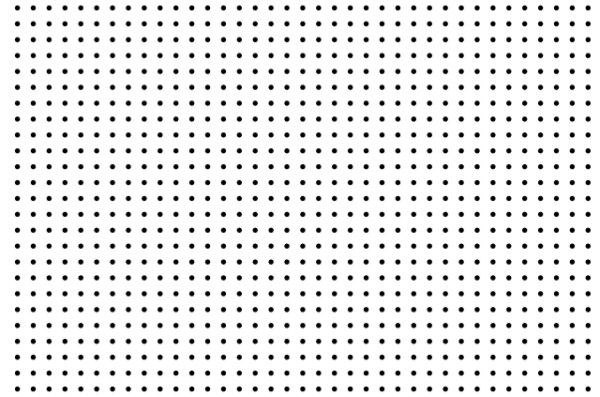

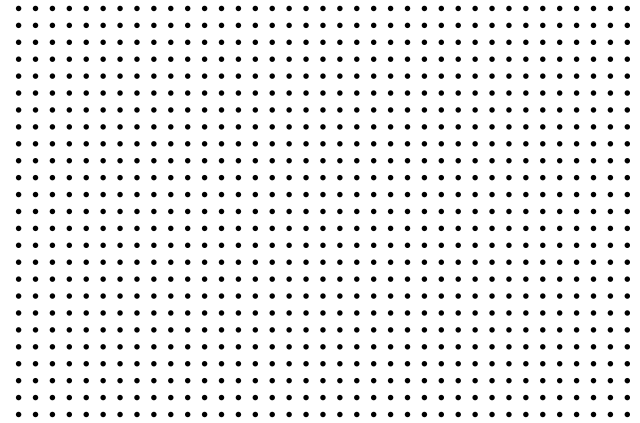

Dot Pattern Test Chart

December 13, 2011
August 8, 2022

$415.00$570.00

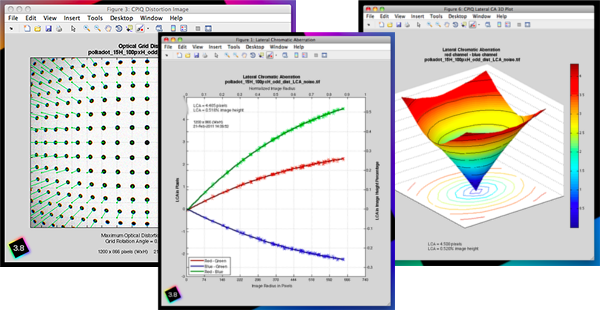

For testing chromatic aberration and SMIA TV Distortion

Category:

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

The medium chart is sized 24″ x 36″. The XL chart is sized  44″ x 66″.

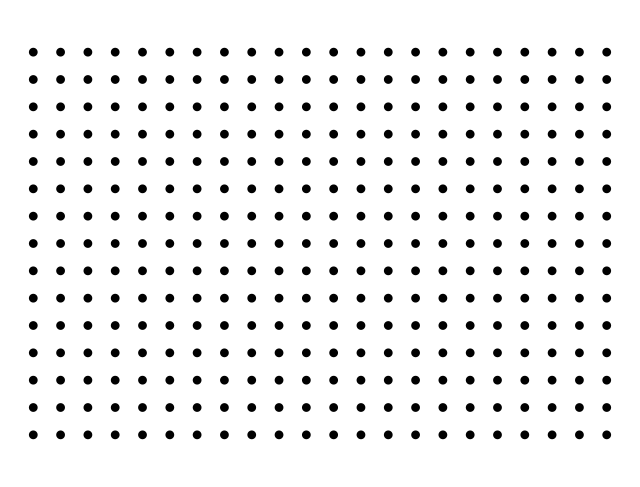

For the medium sized chart, the dot size is 0.498″ in diameter for the large dots (15 high), and 0.299″ in diameter for the smaller dots (25 high)
For the XL sized chart, the dot size is 0.924″ for the large dots (15 high)  and 0.555″ in diameter for the smaller dots (25 high)

SKU Size Vertical Dots Total Dimensions Dot Diameter Dot Spacing (center-center)
DOTM15 Medium 15 24″ × 36″
61cm × 91.4 cm
0.498″
1.26 cm
1.555″
3.95 cm
DOTM25 Medium 25 24″ × 36″
61 cm × 91.4 cm
0.299″
0.76 cm
0.934″
2.37 cm
DOTL15 X-Large 15 44″ × 66″
111.8 cm × 167.6 cm
0.924″
2.34 cm
2.89″
7.3 cm
DOTL25 X-Large 25 44″ × 66″
111.8 cm × 167.6 cm
0.555″
1.41 cm
1.73″
4.4 cm
