Automatic module placement, testing, and rotation

Product Description:IS Media logo

  • Manufactured by isMedia
  • Testing speed: Contact us
  • Focus test: Far field
  • Image recognition for module selection and placement
  • Automatically cycles through devices
  • Dispensing and UV curing
  • Optical center, infinity testing
  • Active alignment and electrical testing
  • 6 DOF (Degrees of Freedom) of active alignment by X, Y, Z, Theta, Tilt X, Tilt Y axis
  • Incoming Quality Control & Outgoing Quality Control



handlers

Watch the Stand Alone Handler in Action



IM-SA04F6



Customization Options:

  • Color Calibration
  • Laser Unit
  • Contact us with your unique testing needs

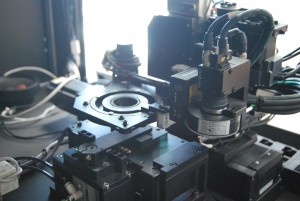

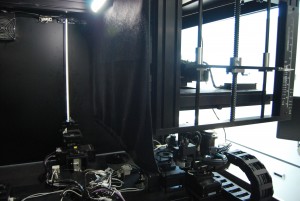

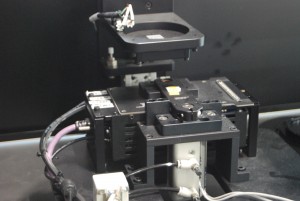

Focus TestPlease turn on your Display Images setting Far Field TestPlease turn on your Display Images setting Even Field Blemish TestPlease turn on your Display Images setting

Product Specifications:

Size/Weight 1460 x 1200 x 1700 (WxDxH) mm / 900 KG
Illumination

FL: Far Field LED illuminator

Collimator Lens CL-836
Main Processor Intel i5 3.0 GHz +
Memory/Hard Disk 8GB, 500GB
Monitor 23 inches, 17 inch for handler
Operating System Microsoft Windows 7 (32bit)
Port Type USB 3.0
