Installation and Getting Started

Imatest is a 64-bit application. As of version 4.5, Imatest no longer supports 32-bit operating systems.

The download and first-time installation may take several minutes each. The first time you install Imatest you should be sure Matlab Libraries is checked. When installation is complete the Matlab Runtime Library (MCR) will be installed and Imatest programs will be in the following locations.

Imatest
programs
32-bit
Win32
%ProgramFiles%\Imatest\version\edition where edition is Master, Image Sensor or IT and version is, for example: v4.5
C:\Program Files\Imatest\version\edition (English installations)
64-bit
Win64
%ProgramFiles%\Imatest\version\edition where edition is Master, Image Sensor or IT and version is, for example: v4.5
C:\Program Files\Imatest\version\edition (English installations)
Linux /usr/local/Imatest/version/edition where edition is Master, Image Sensor or IT and version is, for example, v4.5



If you try running Imatest before the MCR has been installed the following message may appear. You’ll need to reinstall with Matlab Libraries checked.

This application has failed to start because mclmcrrtnn.dll was not found.
nn
= 711, 714, 81, 85, or 90 depending on the version.



Install Imatest

If you haven’t downloaded Imatest, go to the Imatest download page before proceeding.

You must have administrator privileges on your computer during installation.
If you have a strong firewall, you may need to disable it before you install Imatest for the first time. You can re-enable it when the installation is complete. This should not be necessary on subsequent installations.

Windows

Open Windows Explorer and double-click on the Imatest installer file, Imatest-version.exe. (Version is the version number, e.g., 4.n). The Change Log contains the update history.) The version is displayed in the welcome window. Follow the instructions in the installation wizard (mostly clicking Next >).

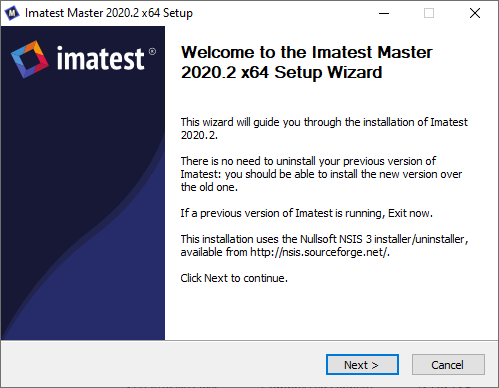

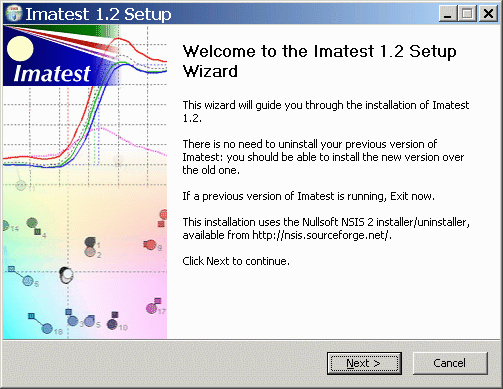

installwelcome
Imatest installation opening window

When you install Imatest you agree to the terms of the Imatest license, whose full text can be found here.

The first time you install Imatest on a computer, be sure Matlab libraries is checked. This box should not be checked for updates unless a new version of Imatest uses a new library.

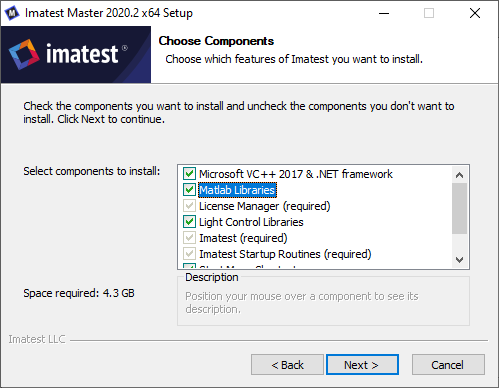

installoptions

Choose Components window: Matlab Libraries should be checked
the first time Imatest is installed on a computer.



Running on Windows

Imatest can be run by clicking the Imatest icon tiny-master on the Desktop, the Start menu, or in the Imatest installation folder (C:\Program files\Imatest\Master\v4.5\ in English language installations). Instructions for running Imatest are located in Imatest instructions. Links to instructions for individual Imatest modules are located in the Imatest Documentation page.

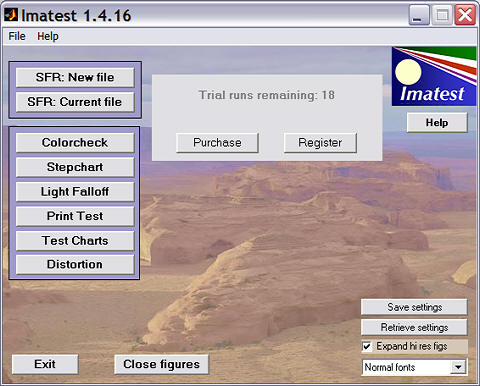

When you first run Imatest, it will be in evaluation mode.

You can upgrade to full unrestricted version by purchasing and registering Imatest

Linux

Beginning with Imatest 4.3, a Linux version of Imatest is available for Ubuntu 14.04 LTS. After downloading the Imatest installer, navigate to the folder in which it is saved. Right click on the Imatest-edition_version.tar.gz file and select Extract all. This command generates a Imatest-edition_version folder with the installer contents. Next open a terminal window either by pressing Ctrl+Alt+T,  or click the Dash button and search for ‘terminal’. In the terminal window navigate to the folder with the installer. For example, if the installer for Imatest IS 4.3 was downloaded to the desktop and extracted, you would type

cd ~/Desktop/Imatest-IS_4.3

Lastly, run the installer with

sudo ./install

Alternatively, there is a ‘silent’ install process that installs the MATLAB Runtime to the default location and does not need user intervention. The silent installation mode is called with

sudo ./install –silent

License Activation

You can install Imatest on as many computers as you like, but you can activate and use it on only one computer at a time. To move it between computers you’ll have to deactivate it on one and activate it on another. You can deactivate and activate by clicking Help, License Manager (Activate), and following the instructions. More details on Online Activation | Offline Activation | Online Deactivation | Offline Deactivation.

Enhanced EXIF data acquisition

EXIF data is image file metadata that contains camera and lens settings. Selected EXIF data (important values such as aperture, exposure time, ISO speed, and focal length) is displayed in several figures and saved in CSV and XML output files.The jhead.exe program included in the standard Imatest installation can only read limited EXIF data from JPEG files. Imatest’s EXIF acquisition capabilities can be greatly enhanced using Phil Harvey’s ExifTool, which must be downloaded and installed separately from Imatest:

  • Go to the ExifTool home page and download the Windows standalone executable (a zip file). This file is not included in the Imatest installation because it is frequently updated.
  • In Windows Explorer, double-click on the downloaded zip file.
  • Copy the contents ( exiftool(-k).exe ) to the appropriate installation folder. To find the location in Imatest 5.0+, click Options II (lower-right of Imatest main window), then click Open utilities folder to the right of EXIF data acquisition. In older versions you will need to search for exiftool in C:\Program Files\Imatest\ or C:\ProgramData\Imatest\ (including subfolders). [In my (English-language) computer the location for Imatest Master 4.2 is C:\Program Files\Imatest\v4.2\Master\imatestis_mcr\depends\RTDepends. The location for Imatest  Master 5.0 is C:\ProgramData\Imatest\mcr_cache\5.0\Master\mcrCache9.2\imates0\depends\RTDepends.]
  • Rename exiftool(-k).exe to exiftool.exe.
  • Make the appropriate selection in the Exif Data Acquisition area of Options & Settings II. More details here.

Purchase Imatest

You may purchase Imatest at any time from Imatest’s online store. You will be entitled to updates for one year from the date of purchase. After one year you will need to renew your subscription to install new upgrades.

Click here to go to the Imatest Store purchase page.

You can also click on Help, Imatest Store in the Imatest main window. Prior to 3.7 you could click on the Purchase button in the Imatest main window.

After you purchase Imatest you’ll receive an e-mail confirmation of your purchase. This may take a few minutes. If you don’t receive the email within about fifteen minutes, contact us. A second email with activation instructions will be sent within a few hours (up to a day for Studio). You may register Imatest as soon as you receive this e-mail.

Files

When the installation is complete the Imatest folder should contain the following folders and files.

The default installation folder for Imatest is C:\Program files\Imatest\Master. (It may differ in non-English installations.).

samples (folder) Contains several image files with sample data for testing the three Imatest modules. Includes several cropped JPEG files for testing SFR, indicated by _sfr in their names. Some others:

      Canon_EOS10d_ColorCheck_lt_small.jpg — for testing Colorcheck.
      Canon_EOS10D_Q13_ISO400_small.jpg — for testing Stepchart.

images (folder) Contains several image files used by Imatest.
bin (folder) Contains the .fig files used in the graphic user interface (GUI), as well as Matlab library files. Includes FigureMenuBar.fig and FigureToolBar.fig: library files missing from Imatest-lib.exe.
Imatest (full name Imatest.lnk) The standard icon for running Imatest. Runs run_imatest.bat, which sets the path, then runs imatest.exe. Copied to Windows Start Menu and Desktop.
Imatest Diagnostics (full name Imatest Diagnostics.lnk) Runs Imatest in diagnostic mode. Doesn’t close when Imatest terminates. This allows error messages to be viewed. Runs run_diagnostics.bat, which sets the path, then runs imatest.exe.
jhead.exe DOS application for reading EXIF data (digital camera information).
dcraw.exe
dcrawMS.exe
Dave Coffin’s dcraw RAW conversion programs. dcrawMS.exe works with Windows Vista/7.
imatest.exe Imatest executable program.
run_imatest.bat
run_diagnostics.bat
Batch files that set the Windows Path and run Imatest.exe. run_diagnostics.bat is used for diagnostic mode: extra results are displayed and the DOS window remains open if Imatest terminates with an error.
License.txt The Imatest End User License Agreement (EULA)

The Imatest License

The Imatest Master and Image Sensor license allows users to install the software on many computers, but to activate and use it on only one computer at a time. It can easily be deactivated on one computer and activated on another. The Imatest Studio license allows the user to install and register the software on only one computer at a time.

License holders are encouraged to publish test results in printed publications, websites, and discussion forums, provided they include links to www.imatest.com. You may not use Imatest for advertising or product promotion without explicit permission from Imatest LLC. Contact us if you have questions. The full text of the license can be found here.
