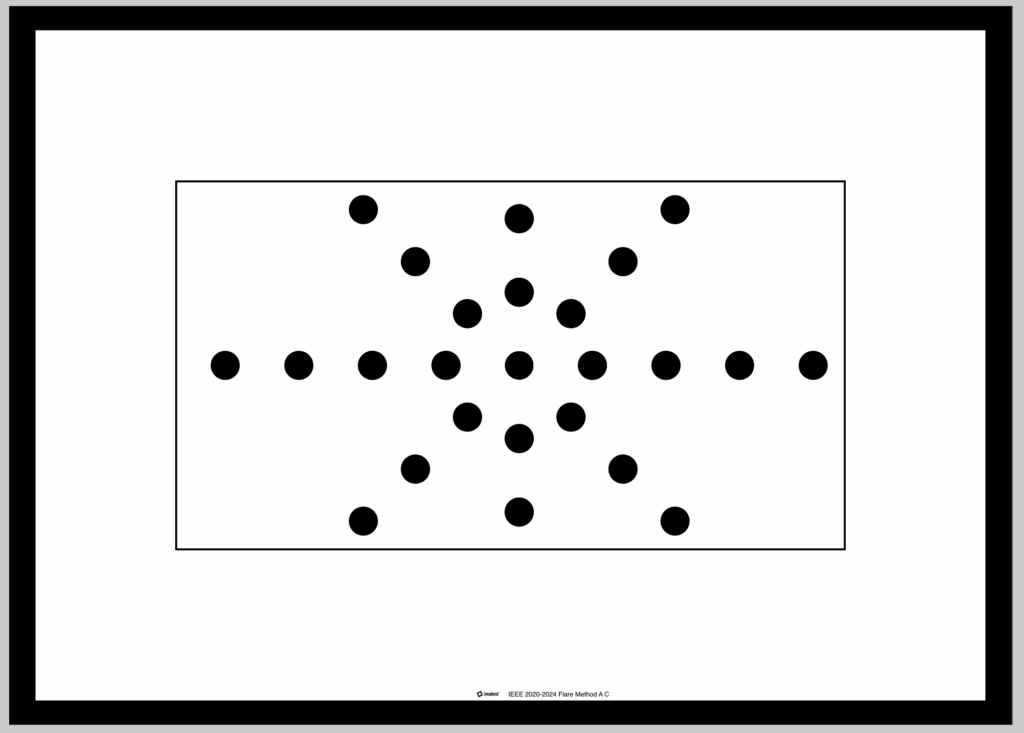

Flare Analysis from IEEE 2020-2024 Method A

Support for IEEE 2020-2024 Flare Method A analysis, a variant of ISO 18844 with more black dots for improved mapping of where on your image stray light signal could interfere with you ability to detect objects in automotive and other camera systems.

Purchase Chart

Dynamic Range 36 Color & Updated Patch Layout

Support for new DR 36 Color with a new patch order to reduce the impact of stray light ghost images on dynamic range measurements and additional color patches.

Purchase Chart

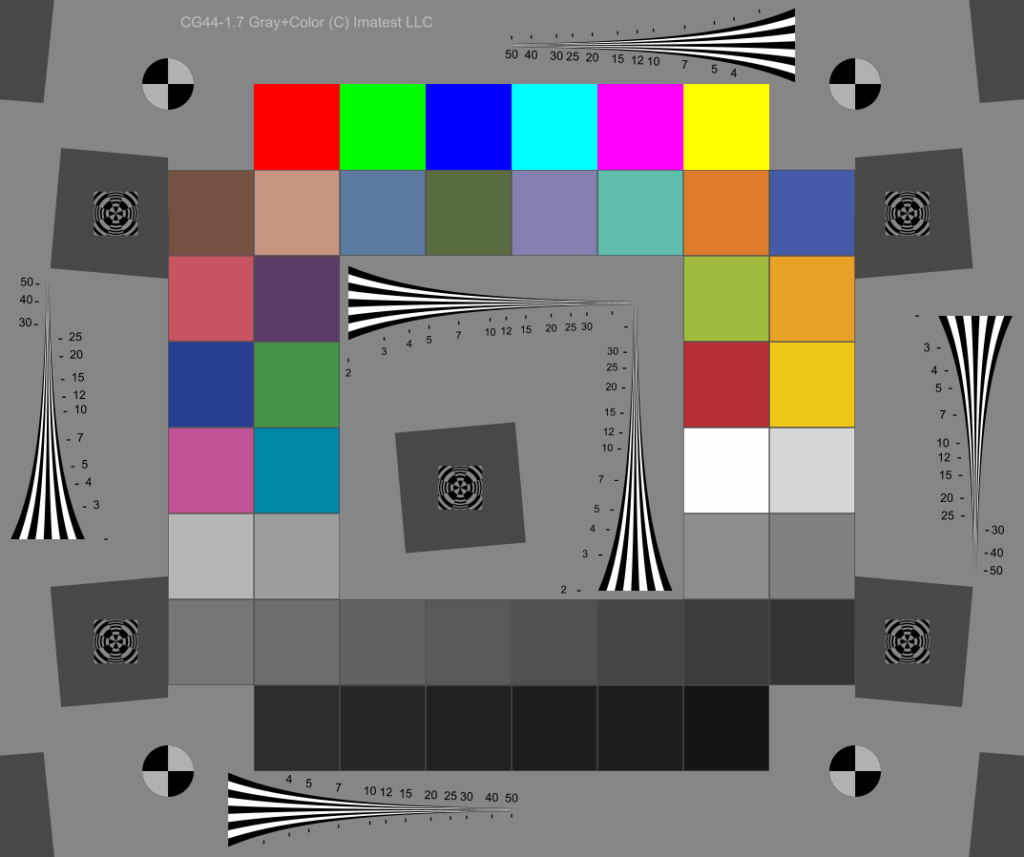

ColorGray-44 Test Chart Support

The ColorGray-44 chart is designed for image quality testing, featuring 6 saturated RGBCMY colors, 18 ColorChecker-like patches, 20 grayscale steps with precise density increments. It includes logarithmic wedges and slanted edges for resolution analysis. A reference file for accurate evaluation accompanies the chart. Optimized for self-illuminated endoscopes, the chart avoids placing critical features at the center to minimize the impact of specular “hot spots.” It can also be pre-distorted for cameras with strong barrel distortion and cropped as long as registration marks remain visible.

Purchase Chart

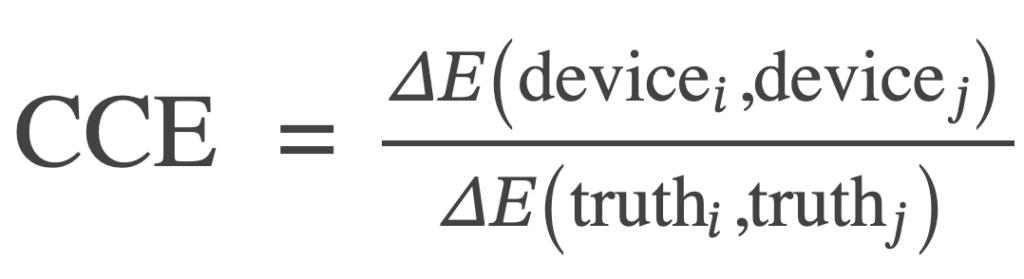

Color Contrast Enhancement (CCE) Calculation

Color/Tone now produces this calculation when analyzing for Color Targets, this is recommended by FDA for Endoscope testing (Cheng, 2023).

Learn More

Stray Light/Flare


  • Adds the ability to downsample the analysis image(s).

  • Adds the ability to average the normalization factor from multiple reference images.

  • Adds the ability to save/view diagnostic plots from the masking/source detection.

  • Adds the ability to use a geometric camera model (simple pinhole or OpenCV) + circle to mask the analysis images.

  • Adds the ability to manually place a circle for the reference image(s).

  • Adds the ability to select a colormap for the color-mapped metric image output.

  • Adds the ability to invert the colormap for the color-mapped metric image output.

  • Adds the option to toggle the pink mask overlay in the color-mapped metric image output.

  • Significantly improved the speed of video/frame writing (associated with the color-mapped metric image and histogram outputs).

  • Improved the visual appearance and rendering consistency of color-mapped metric image and histogram outputs.

Other Features

User Interface



  • Launch Hardware Control from Imatest GUI.

  • Drag and drop to update to new .ini file.


Minor Features



  • Simatest now includes bilinear demosaicing.

  • Image Processing can save multiple images as monochrome.

  • Now using Python 3.11.

  • Exiftool updated to 13.33.
