Imatest Freestanding Wide Field-of-View Fixture

November 1, 2023
January 18, 2025
Imatest Free-standing WFOV Fixture

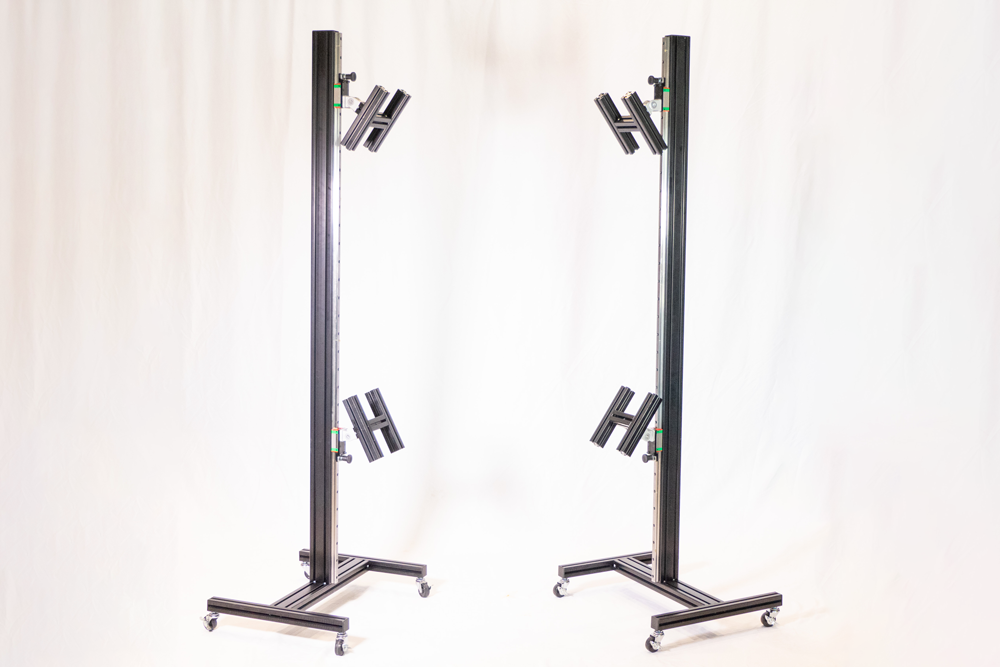

SA-WFOV-5
Imatest Freestanding Wide Field-of-View Fixture - Image 2

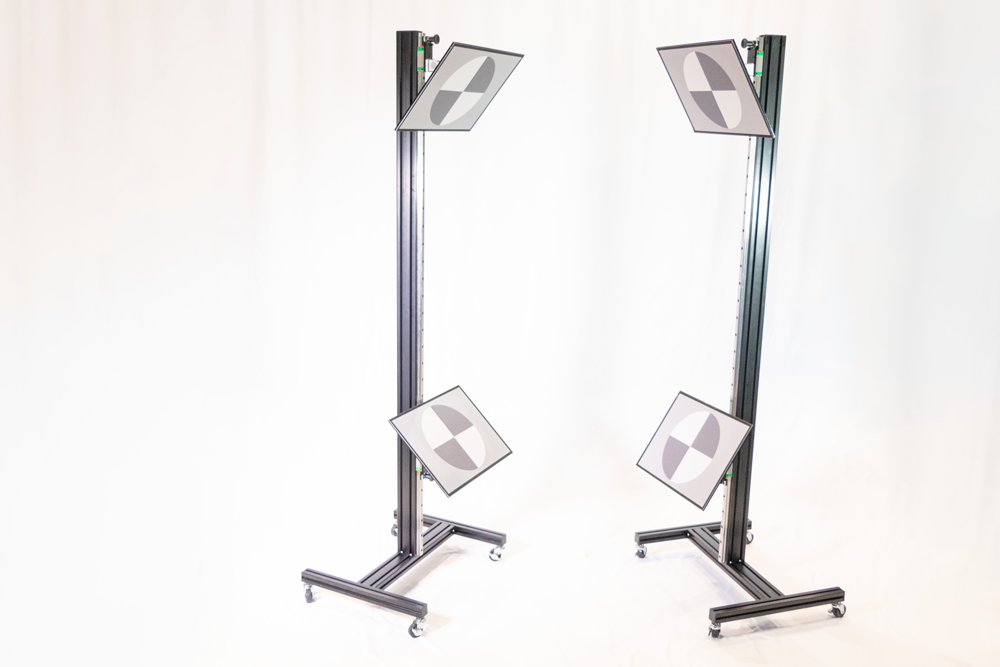

SA-WFOV-7
Imatest Freestanding Wide Field-of-View Fixture - Image 3

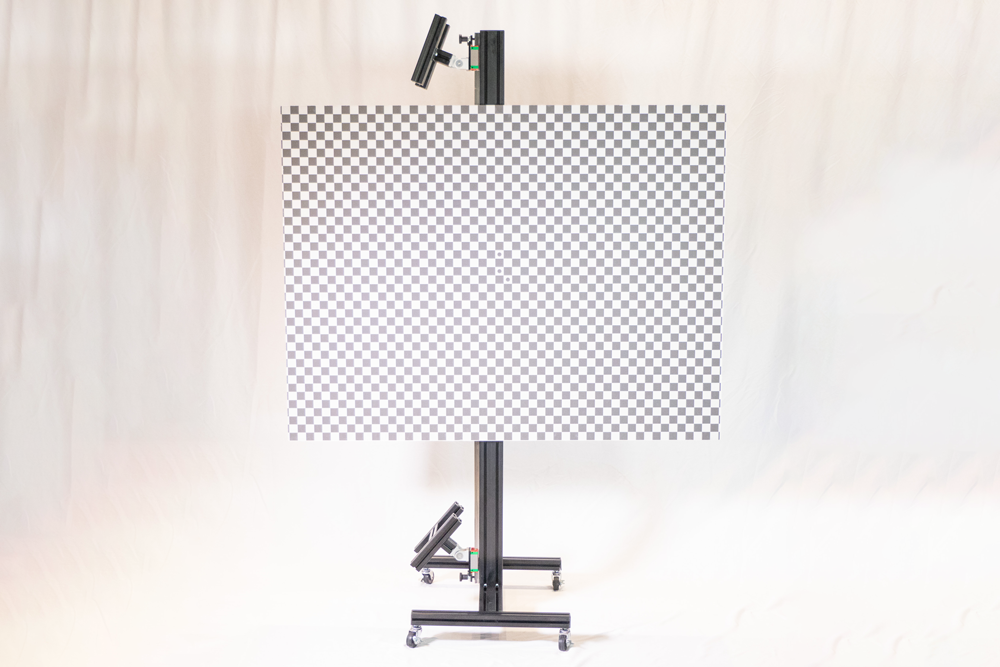

SA-WFOV-1
Imatest Freestanding Wide Field-of-View Fixture - Image 4

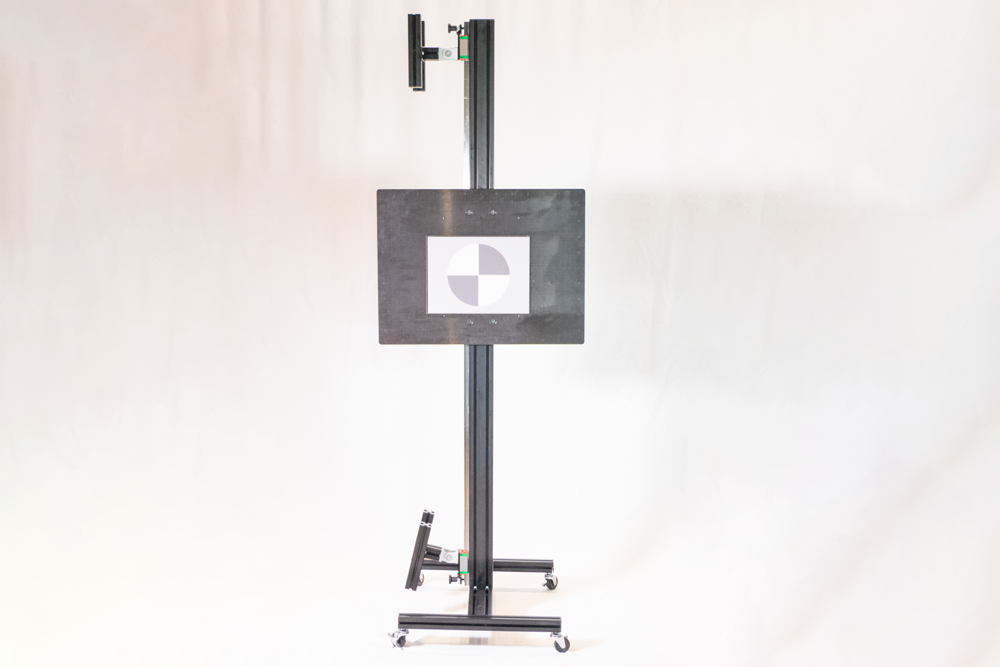

SA-WFOV-2

$6,000.00

The Imatest Freestanding Wide Field-of-View Fixture (set of two) allows you to easily test sharpness of cameras with FOV up to 360°. The fixture includes a rail system for easy mounting and positioning of peripheral test targets or Imatest Light Panels in a variety of sizes (sold separately).  Information Sheet

SKU: WFOV-FS Category:

Lead Time and Rush options. Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

The Imatest Freestanding Wide Field-of-View Fixture features:

  • Mounting system for four reflective SFRreg targets – easily adjust distance, angle, and height
  • Lockable casters for securing fixture positions
  • Discrete target heights for repeatable measurements
  • Pivot arms allow for angular positioning of the peripheral targets
  • Embedded magnets for Isolight Pucks, which measure lighting intensity and color temperature
  • Compatible with ILP-A and ILP-B (Imatest Light Panels Size A or B)
  • Compatible with IMTS-R-KIT for magnetic chart mounting or chart storage

Specifications

Details
Fixture Weight (Pair) 37 kg (81.5 lbs)
Fixture Dimensions 620 x 509 x 1960.5 mm (24.41” x 20” x 77.19”)
Crate Dimensions 1816.1 x 622.3 x 482.6 mm (71.5” x 24.5” x 19”)
Total Shipping Weight 100 kg (220.5 lbs)
Recommended Testing Distance 0.5m – 1.5m (19.69” – 59.06”) @ 3:2 or 16:9 camera aspect ratio
Testing Field of View Up to 360°
Recommended Charts

Test Distances < 1m (39.37”), FOV < 160º: 4 Outer targets: SFRreg – Size 0.5x, 1 Center Target: eSFR ISO – Size 2x

Test Distances < 1m (39.37”), FOV >160º: 4 Outer targets: SFRreg – Size 1x, 1 Center Target: eSFR ISO – Size 2x

Test Distances > 1m (39.37”): 4 Outer targets: SFRreg – Size 1.5x, 1 Center Target: eSFR ISO – Size 4x
Material Black anodized 6105 T5 Aluminum
