Imatest LED Light Panel

July 25, 2019
March 21, 2024

$980.00$9,310.00

The Imatest LED Light Panel provides a versatile, low profile and lightweight light source with 90% uniformity, dimmability, wireless controls and easy integration with our hardware and charts. Choose from a variety of color temperatures as well as near-infrared channels with illuminance levels ranging from 100 to 1,000 lux. It is ideal for testing many image quality factors with a range of transmissive test charts. Compatible with the Lighting Control feature (Imatest Version 2020.1), connecting with WiFi or USB.

Download the Light Panel Info Sheet

Lead time: 6-8 weeks for sizes A-D and 10-12 weeks for E-G.

This product drop-ships directly from our manufacturing partner in South Korea.

Lighting Preference

  • Select Lighting Preference from: *

Categories: , , ,

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

Our light panels are offered in seven sizes with:

  • Chart alignment rails to align the charts for the most reliable results
  • A single channel with your choice of various color temperatures (+/- 200K) or NIR options
  • Illuminance level 100 ~ 1,000 lux
  • 90% uniformity





 SKU  Sizes   Diffuser Panel Size/
 External Dimensions

 Intensity

 (min to max)*

 Light Temperature

 Options**

 Uniformity  Channels

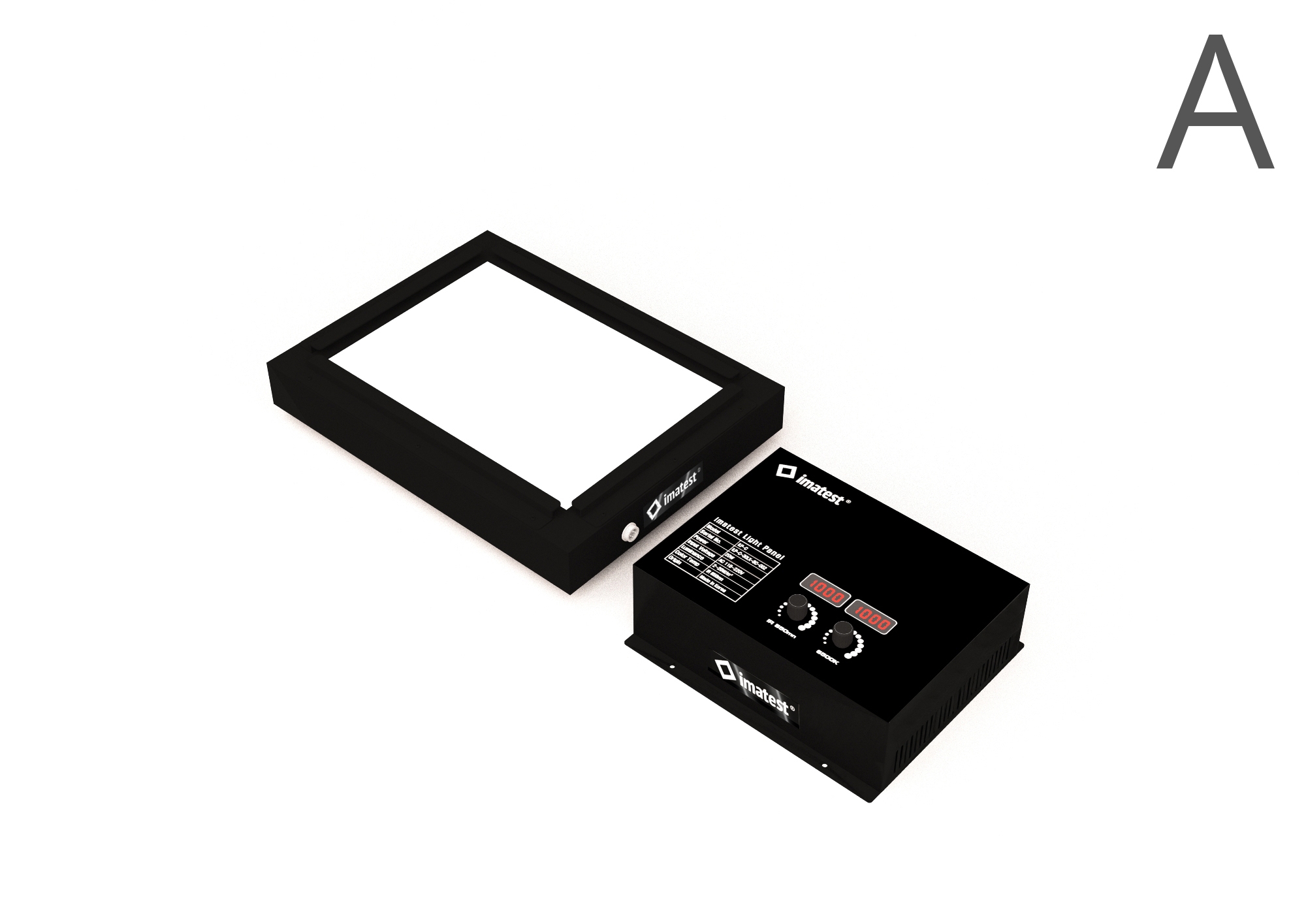

ILP-A     A 229mm x 152mm (9″ x 6″)
299mm x 222mm x 40 mm (11.8” x 8.7” x 1.6”)

100 ~ 1,000 lux

NIR = 2 ~ 20 W/m2

  3100K

  4100K

  5100K

  6500K

  NIR 850nm

  NIR 940nm

90%



Single

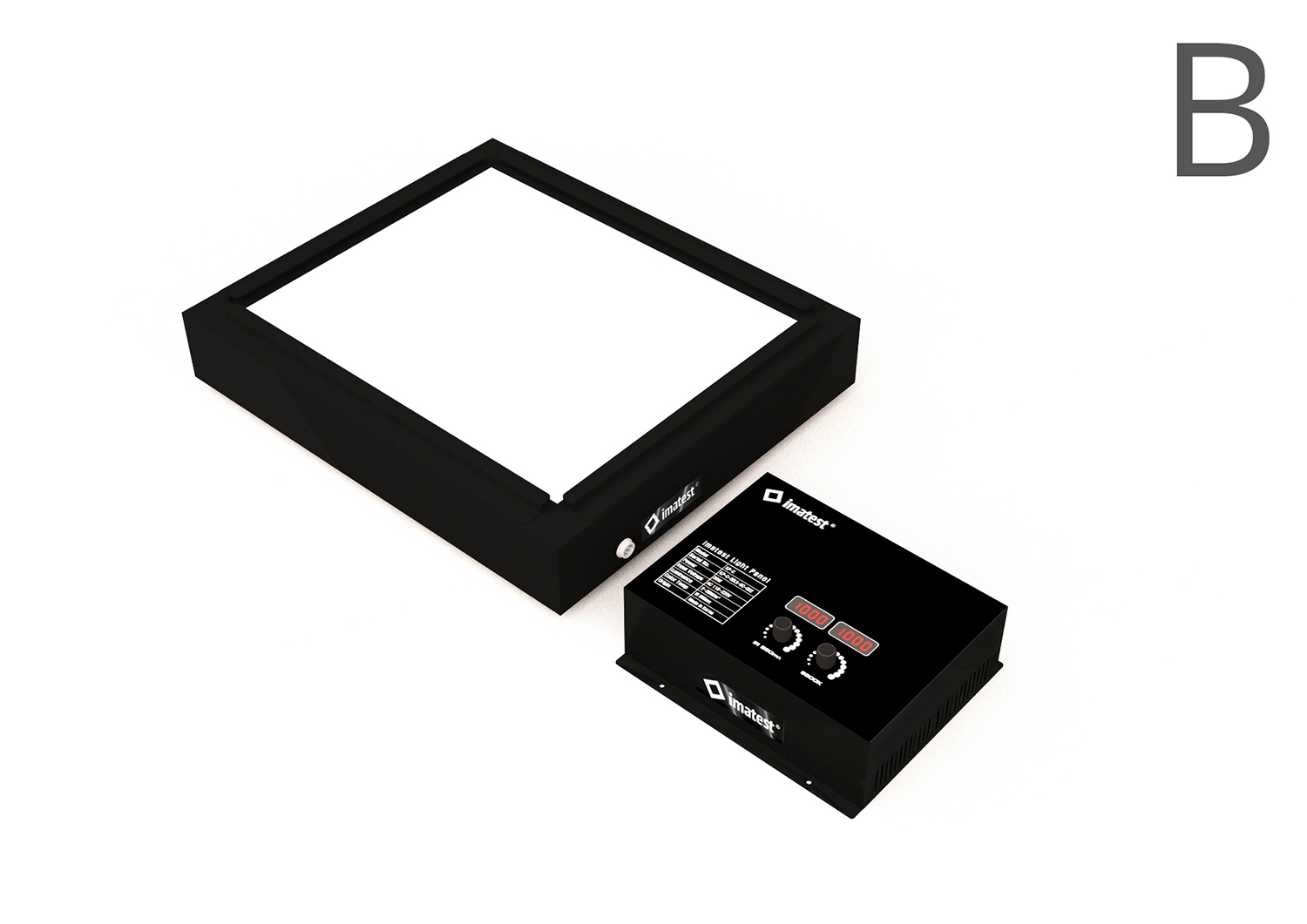

ILP-B     B 260mm x 220mm (10.24″ x 8.66″)
384mm x 334mm x 60mm (15.1” x 13.1” x 2.4”)

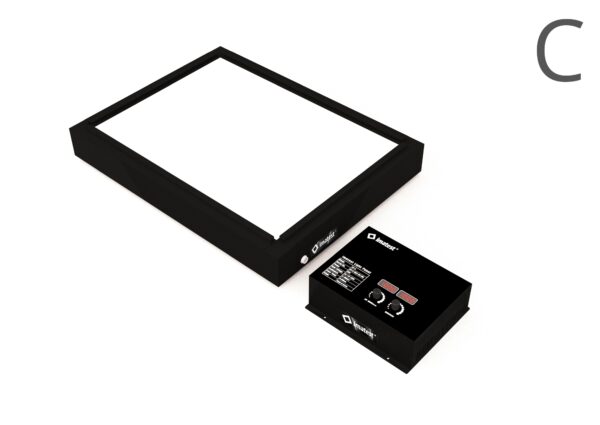

ILP-C     C 432mm x 305mm (17″ x 12″)
512mm x 385mm x 60mm (20.2” x 15.2” x 2.4”)

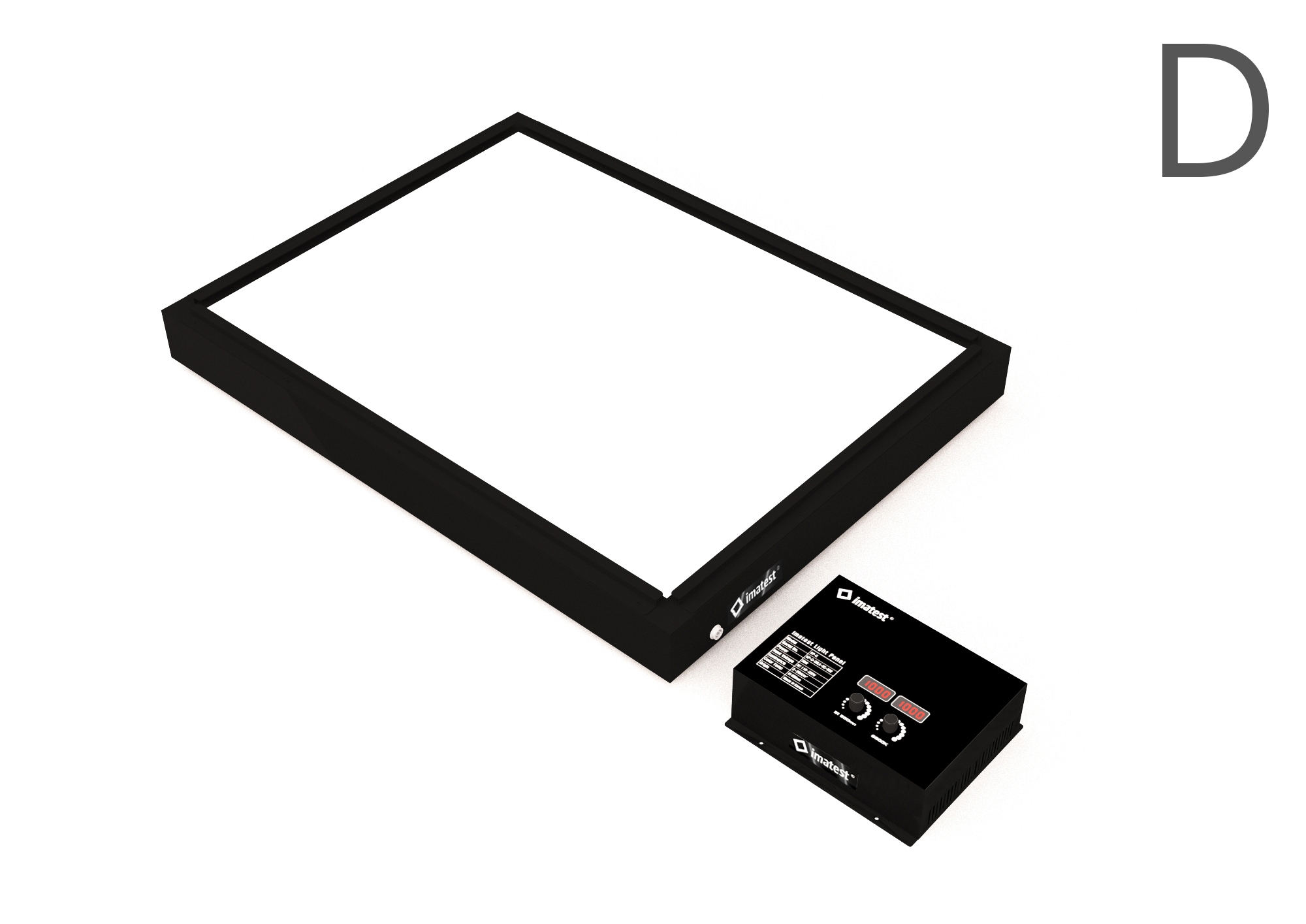

ILP-D     D 610mm x 432mm (24″ x 17″)
690mm x 512mm x 60mm (27.2” x 20.2” x 2.4”)

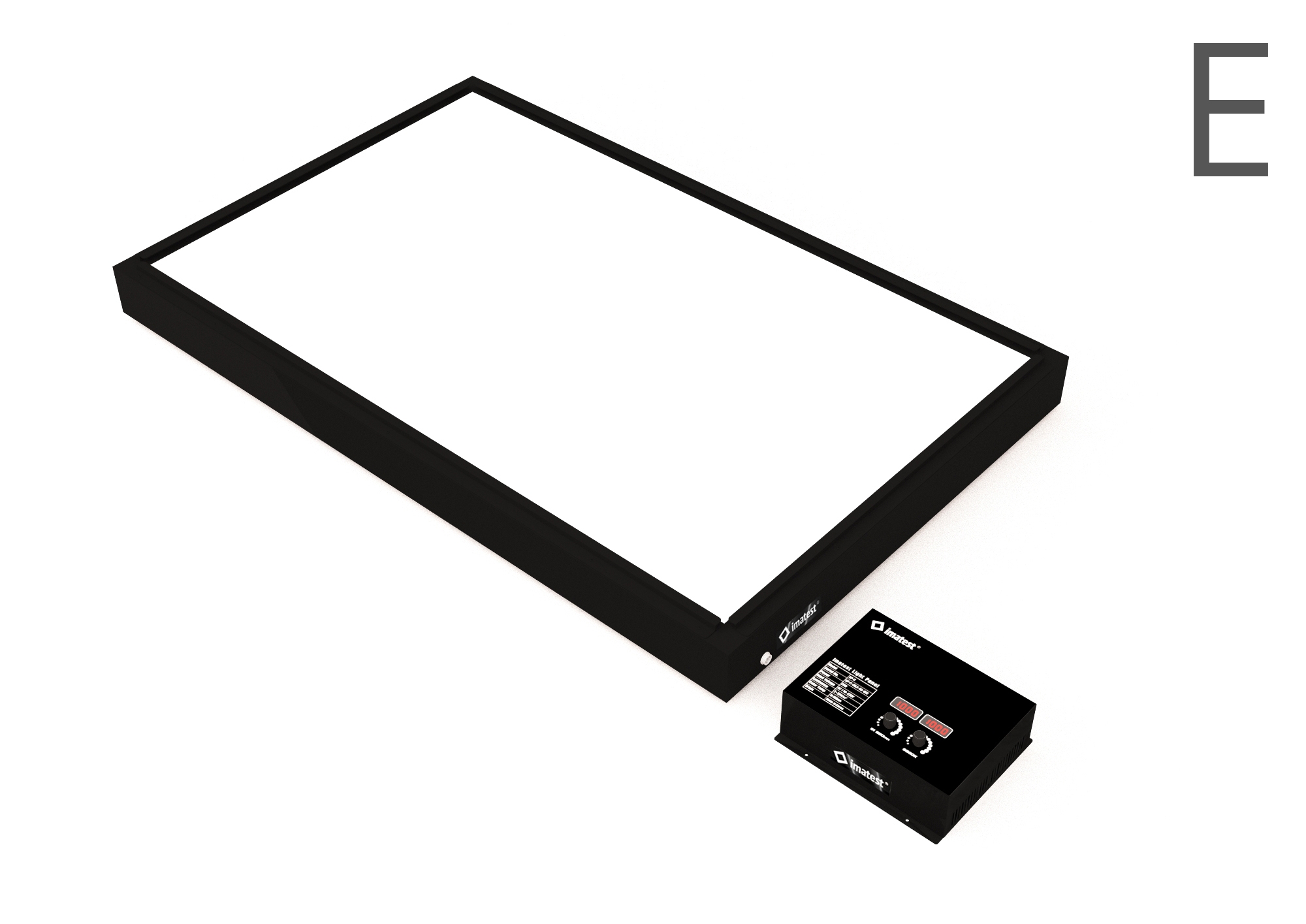

ILP-E     E 907mm x 540mm (35.7″ x 21.3″)
987mm x 620mm x 70mm (38.9” x 24.4” x 2.8”)
 90%

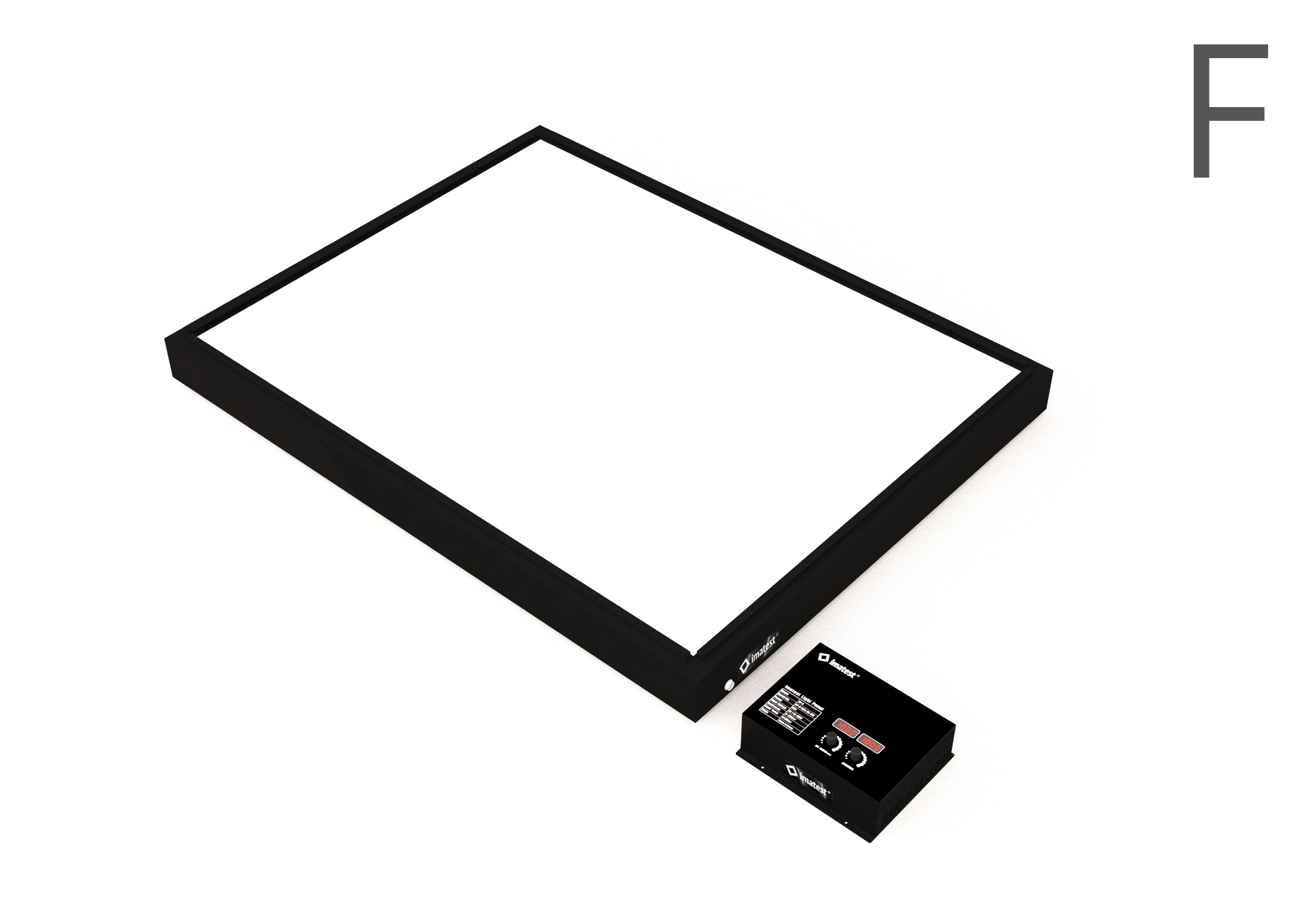

ILP-F     F 907mm x 680mm (35.7″ x 26.8″)
987mm x 760mm x 70mm (38.9” x 29.9” x 2.8”)

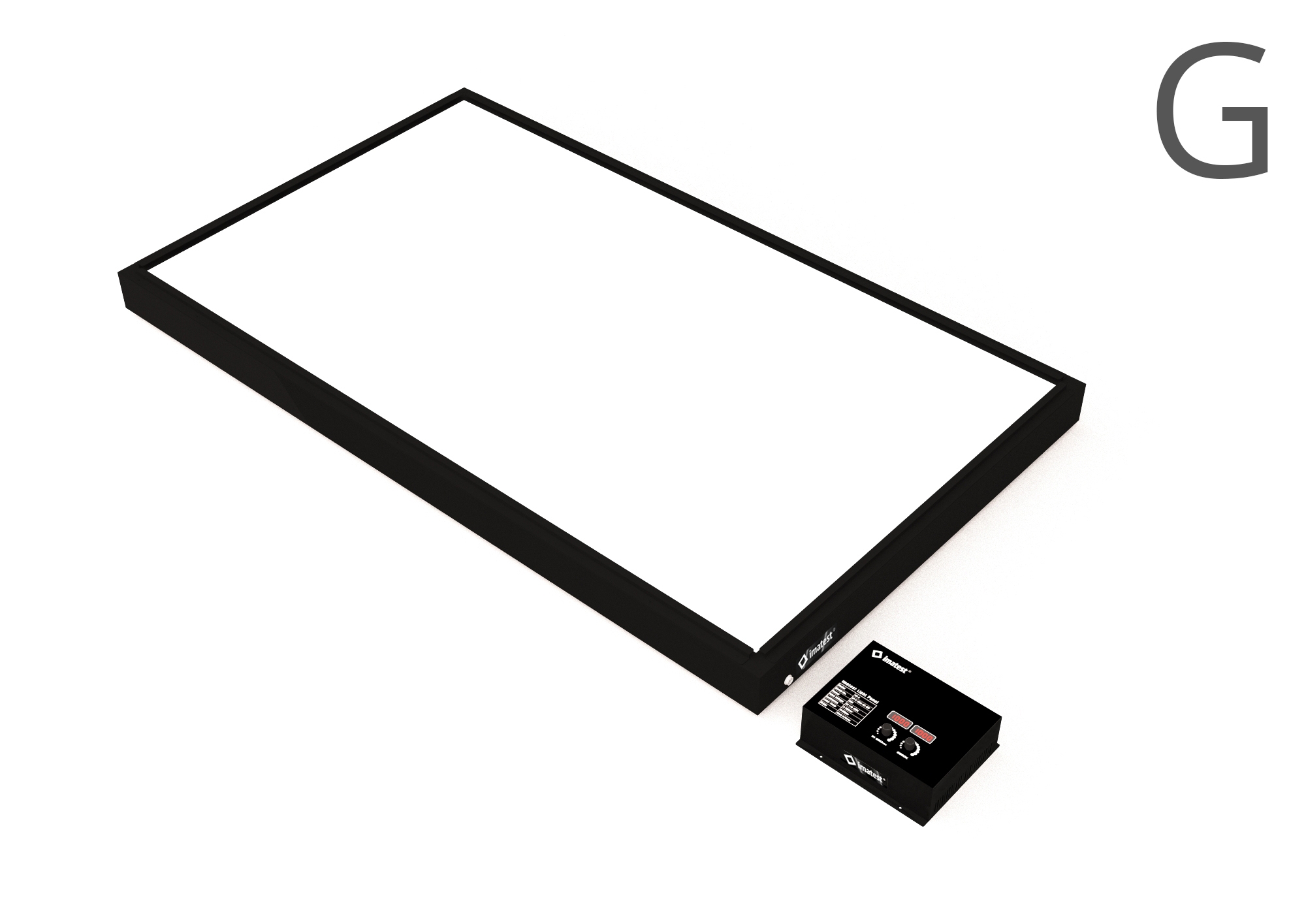

ILP-G     G 1225mm x 680mm (48.2″ x 26.8″)
1305mm x 760mm x 70mm (51.4” x 29.9” x 2.8”)





































Most Imatest test charts are available in specific sizes to fit the Imatest Light Panels. The target is mounted on clear acrylic for ease of use with the Light Panel rails. Charts include SFRplus, eSFR-ISO, Checkerboard, Spilled Coins, and ISO 18844 Flare targets.

If you are interested in a mounted target with your Light Panel, please email sales@imatest.com with your specific testing requirements. Download the Info Sheet
