EIA-1956 Resolution Video Test Chart QA-70

November 27, 2011
June 22, 2023

$250.00$690.00

Please Note

This chart is obsolete and does not conform to the updated ISO 12233:2014 standard. It has no slanted-edges and its wedges have an extremely limited frequency range. We strongly discourage its purchase. We recommend the ISO 12233:2014/2017 E-SFR chart for all testing, unless the old chart is specifically required.

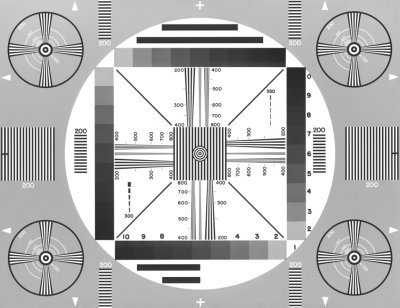

Based on EIA 1956 chart. Includes linear and pie shapes from 200 to 1000 lines, 10 step density tables, measurement bars and edge definition points. Email sales@imatest.com for current lead time.

Category:

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

Notes: Measurements of Tele-cine cameras for streaking, ringing, aspect ratio; scan linearity and other video and cine systems.



Polarity Size Overall Size Opal Glass Chrome Glass Trans Material Refl. Material
Positive 2x 304.8mm x 228.6mm (12″ x 9″)       QA-70-1-P-RM
Positive 1/10x 50.8mm x 50.8mm (2″ x 2″)   QA-70-2-P-CG
Positive 1/10x 50.8mm x 50.8mm (2″ x 2″) QA-70-2-P-OP

Technical Notes:

EIA Video Resolution Pattern QA-70-1 v1-07.pdf

EIA Video Resolution Pattern QA-70-2 v1.04.pdf
