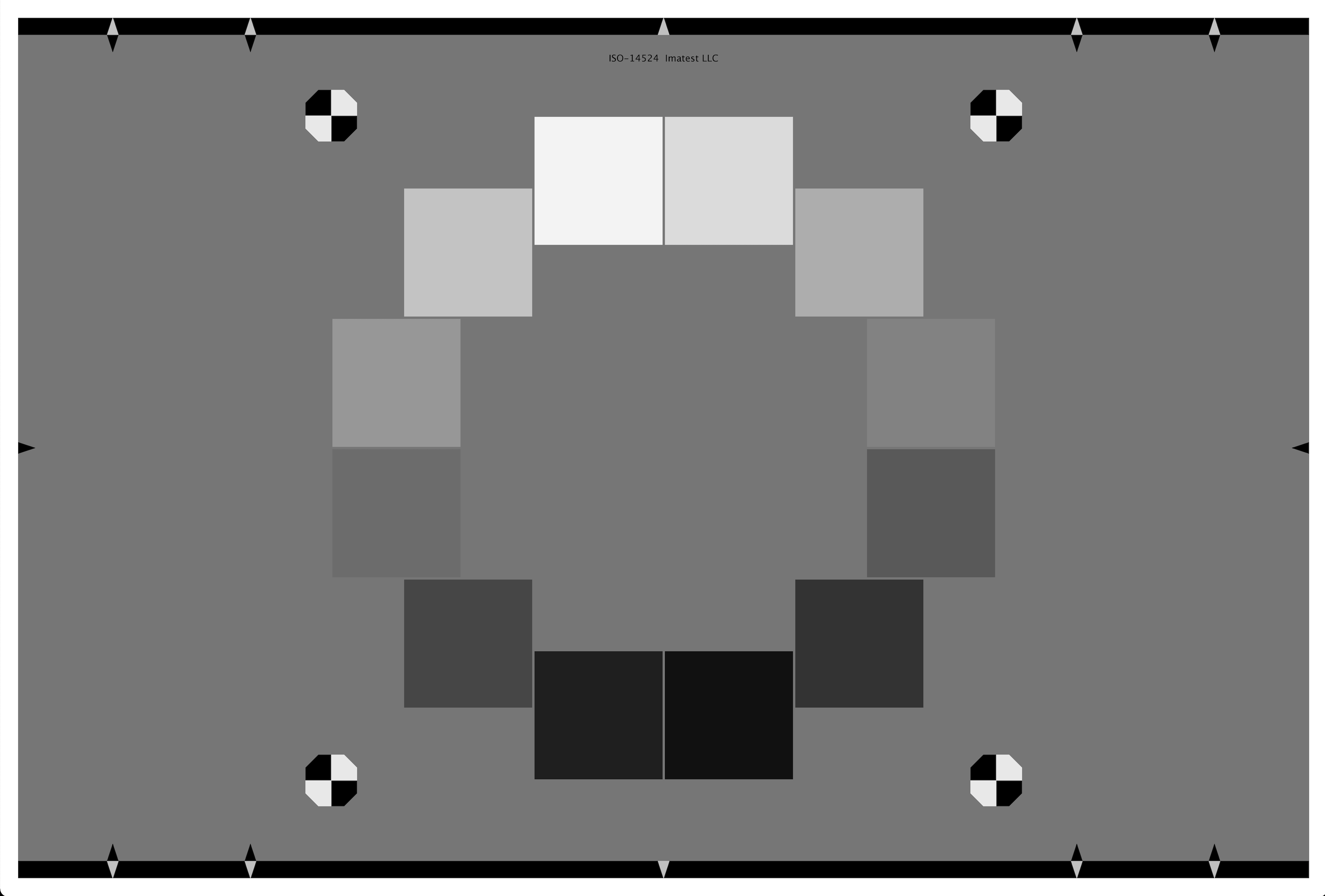

ISO-14524 digital camera contrast chart

December 12, 2011
October 27, 2021

$280.00

Chart features 12 gray levels on a durable material. Densities range from 0.10 to 2.30. Supported by the Imatest Stepchart, Multichart and Multitest modules. Available on luster photographic paper or inkjet media.

Clear

Description

This Camera Contrast Chart conforms to International Standard ISO-14524, Photography – Electronic Still Picture Cameras – Methods for Measuring Opto-Electronic Conversion Functions (OECF). Nominal patch densities are 0.1, 0.2, 0.31, 0.43, 0.56, 0.7, 0.87, 1.05, 1.27, 1.53, 1.86, and 2.30. It is well suited for measuring noise as well as OECF (Opto Electronic Conversion Function).

See Technical Notes.

Part No. Overall Size Material / Process
ISO-14524-IJ 432 mm × 292 mm Semi-gloss paper with ink jet printing
ST-52-RM 356 mm × 200 mm Reflective material with photographic printing
