Metaphase NIR ExoLight v2.0 (Set of 2)

February 18, 2021
January 18, 2023

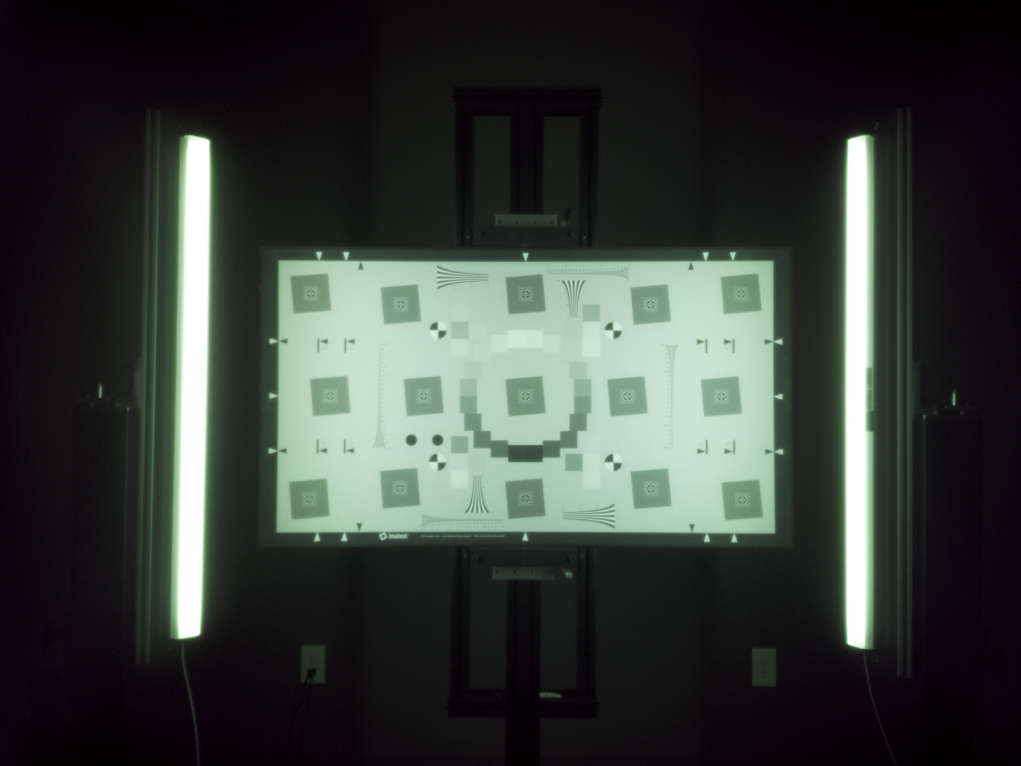

The Metaphase NIR ExoLight v2.0 lighting system is ideal for providing uniform, glare-free illumination for Imatest’s full range of reflective NIR test charts (850nm or 940nm NIR), up to 44 x 78″ (111.7 x 198 cm). This set of two is designed to integrate with the Imatest MTS-Reflective Module.

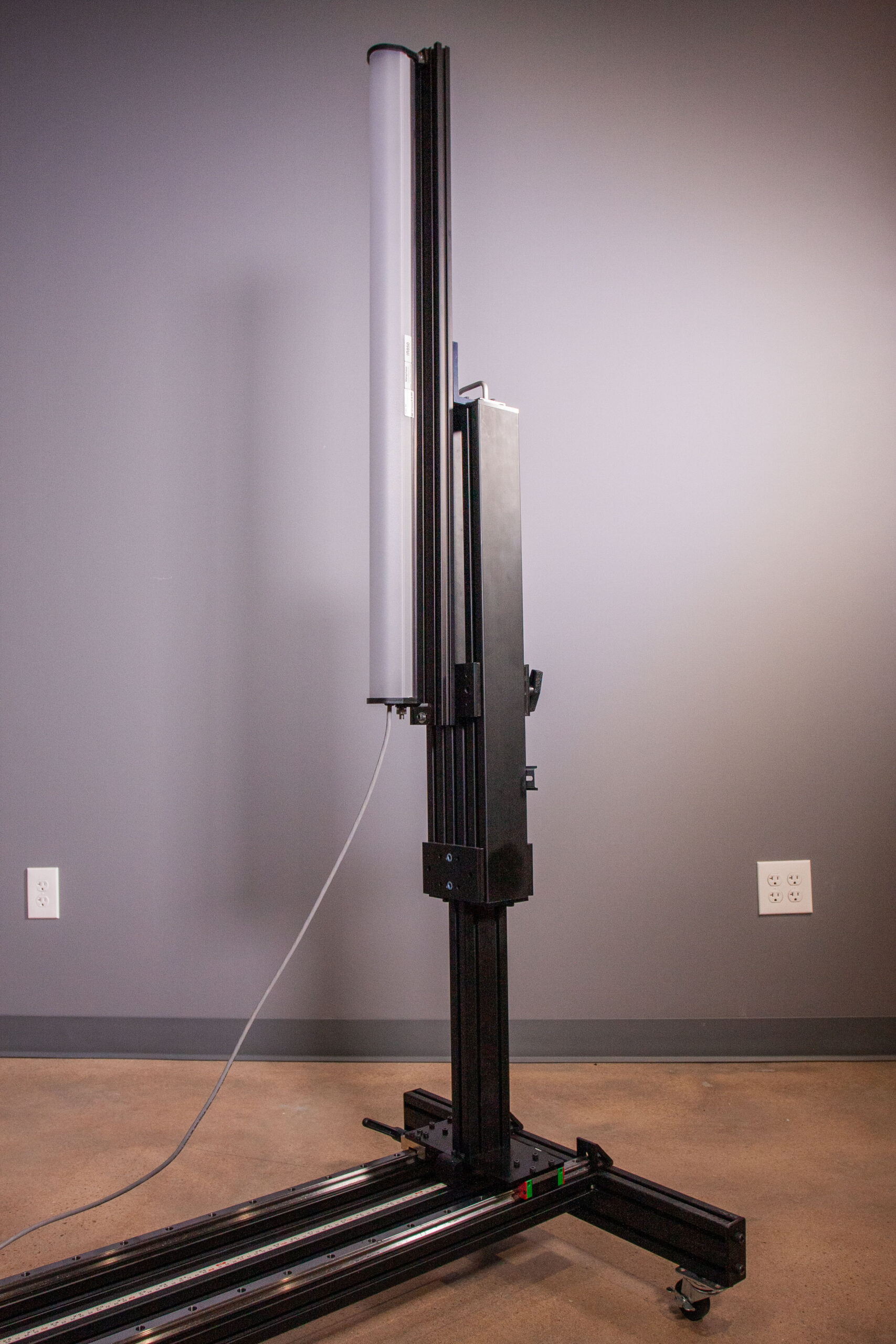

This set of two Metaphase 850nm or 940nm NIR ExoLight v2.0 lights and the ULC-2 Controller integrate with the Imatest Modular Test Stand Reflective Module to provide an NIR option.

  • Exolight v2.0 Weight: 2.6kg (5.8lb) (each)
  • Metaphase ULC-2 Controller weight: 0.68 kg (1.5lb)
  • Light diffusion: Lumiform diffuser with 120° (±5%) uniform lighting
  • Operating temperature: -20C → 40C
  • Lifetime expectancy: 75,000 hours
  • Wavelength: 850nm or 940 nm NIR lights
  • Manufacturer: Metaphase
  • Contrast ratio (Min:Max): ~1:300
