Sofica Chart Selector

October 12, 2018
May 5, 2022

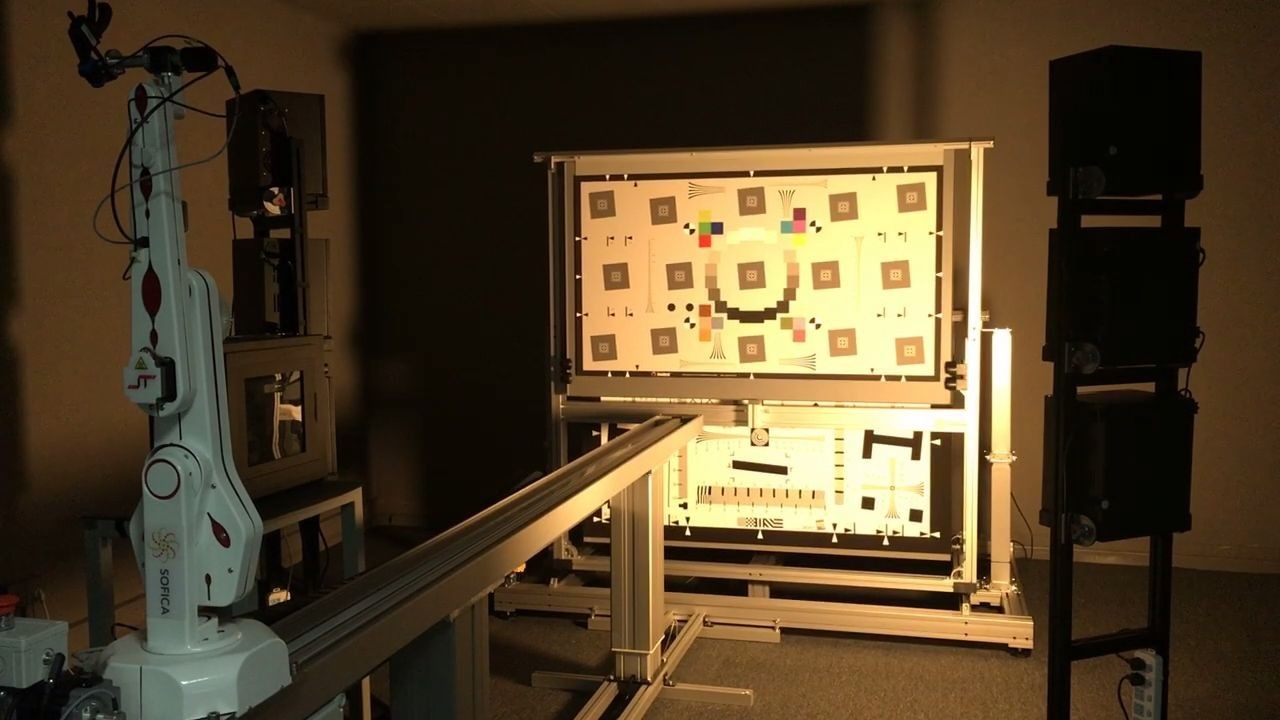

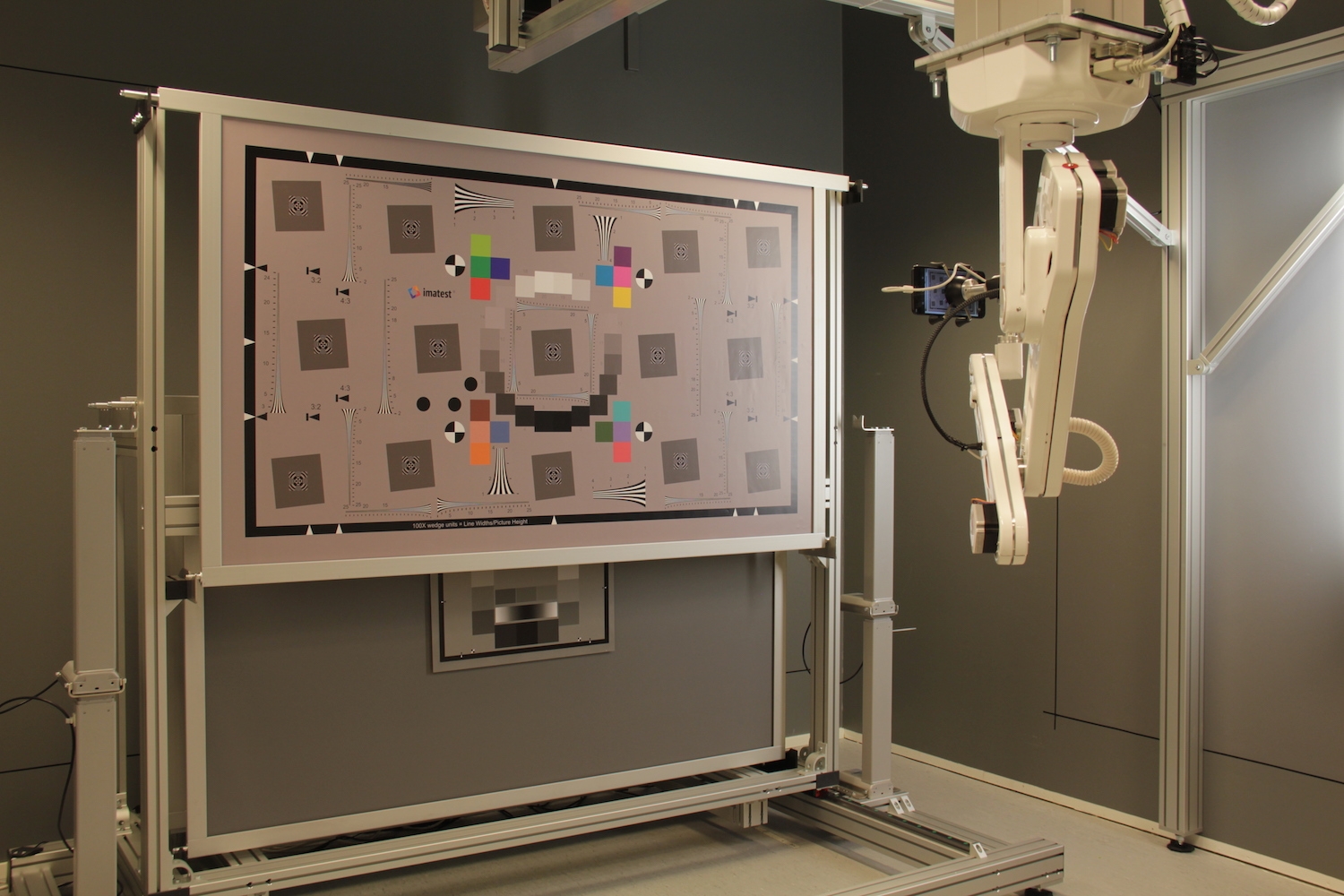

The Sofica Chart Selector is an automated chart changing system consisting of a motorized module to move different test chart panels into the camera measurement area. The design and the Selector control software ensure that each chart will be placed in the same precise position.

SKU: S-CHRTSEL Categories: ,


Backpane size:            Standard 1700mm x 1020mm (67″ x 40″); customizable
Backpane color: 18% Neutral Grey (Munsell N5)
Number of charts: Supports 10 test charts (customizable)
Control method: RJ45, WiFi (web-based user interface)
SDK: html, python, C++ API
Environment: 20-30C
Power Supply: 110V / 230V

Piezo collision detector and emergency stop by default. Optional: laser curtain, pressure mattress, etc.

Speed:  ~13 second switch cycle
