Zenith Lite™ Diffuse Reflectance LiDAR Test Targets

September 9, 2023
July 8, 2024

$610.00$2,210.00

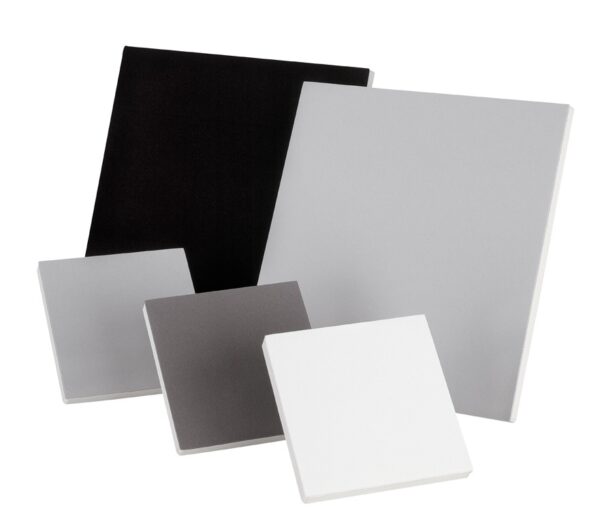

Zenith Lite diffuse targets provide nearly ideal diffuse Lambertian reflectance over the wavelength range from 250 nm to 2500 nm. Zenith Lite targets are constructed using a 1 mm or 2 mm thick Zenith Polymer® diffuser laminated to a 10 mm thick aluminum honeycomb structured plate that serves as a solid, lightweight backing. They are the ideal choice for both laboratory and field applications since they are lightweight and can withstand harsh environments for long exposure periods.

Zenith Polymer® reflectance material provides the highest diffuse reflectance of any known material over the UV-VIS-NIR region. The reflectance is very flat and generally > 99% over a range from 400 nm to 1500 nm and > 95% from 250 nm to 2500 nm. Surface or subsurface contamination may lower the reflectance at the extreme upper and lower ends of the spectral range. The surface and the porous structure of Zenith exhibits highly Lambertian behavior. The material is extremely hydrophobic and shows no signs of optical or physical degradation after long-term immersion testing in fresh water.

View Imatest LiDAR Test Solutions

Categories: ,

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

Zenith Lite® Target – Lightweight & Lambertian diffuse reflectance LiDAR test target

Sizes

200 x 200 x 11 mm (approx. 8 x 8 inch)
200 x 200 x 11 mm (approx. 8 x 8 inch)
300 x 300 x 11 mm (approx. 12 x 12 inch
500 x 500 x 11 mm (approx. 20 x 20 inch)



Download Datasheet
