ColorGray44_1073W
Price range: $850.00 through $1,120.00

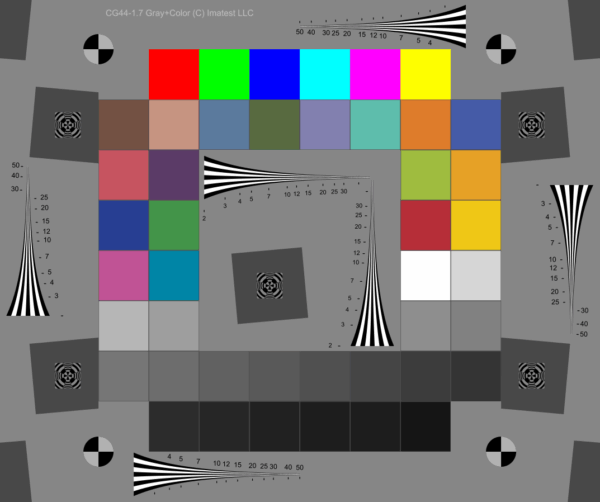

The ColorGray-44 chart features 6 saturated RGBCMY colors, 18 ColorChecker-like patches, 20 grayscale steps. It includes logarithmic wedges and slanted edges for resolution analysis, it is accompanied by a reference file for accurate evaluation. It is produced on transmissive film.
Description
The ColorGray-44 chart (new, September 2025) is produced on a single layer of transmissive color film. It can also be produce as a reflective chart, contact sales@imatest.com if you are interested in the reflective version.
- 6 saturated RGBCMY colors,
- 18 colors similar to the 24-patch Colorchecker,
- 20 grayscale patches,
- Reflective: Dmax-Dmin = 1.90 in density steps of 0.10.
- Transmissive: Dmax-Dmin = 3.0 in density steps of 0.15 for D ≤ 2.4 and 0.20 for D > 2.4.
- Logarithmic wedges and slanted edges for SFR and vanishing resolution analysis.
- The transmissive version is supplied with a reference file for accurate color and grayscale analysis.
Because this chart was optimized for self-illuminated endoscopes, which can have specular reflections (“hot spots”) near the center of the image, it has no critical features at the center of the chart.
It can be pre-distorted to work better with highly barrel-distorted cameras. It can be cropped, as long as the four registration marks are inside the image frame.
