ISO 12233 Test Charts on Color High-Precision LVT Film
23.2-12233-chart-web
ISO 12233 Test Charts on Color High-Precision LVT Film - Image 2
23.2-12233-chart-web
ISO 12233 Test Charts on Color High-Precision LVT Film - Image 3
images

$600.00

These charts are produced with a high-precision LVT film recording process for the best possible density range, low noise, and fine detail. We have multiple options available including Small (Half Sheet), Medium (Full Sheet), and Multi-Size (Full Sheet) targets.

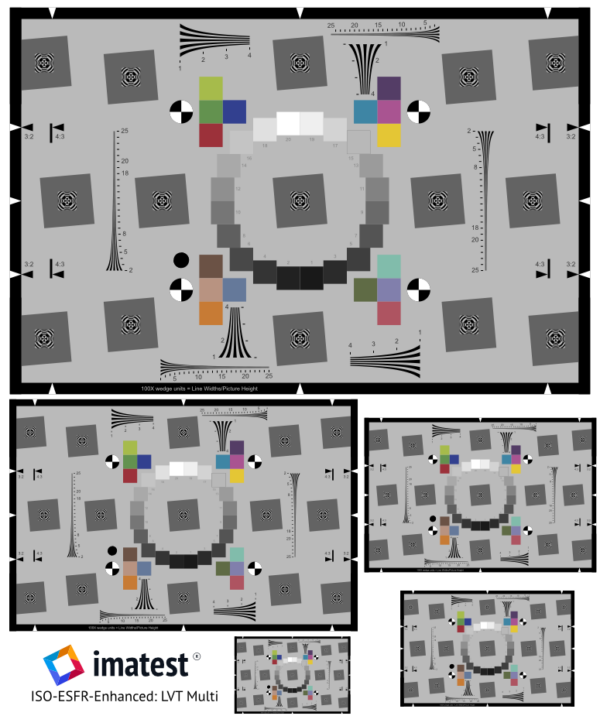

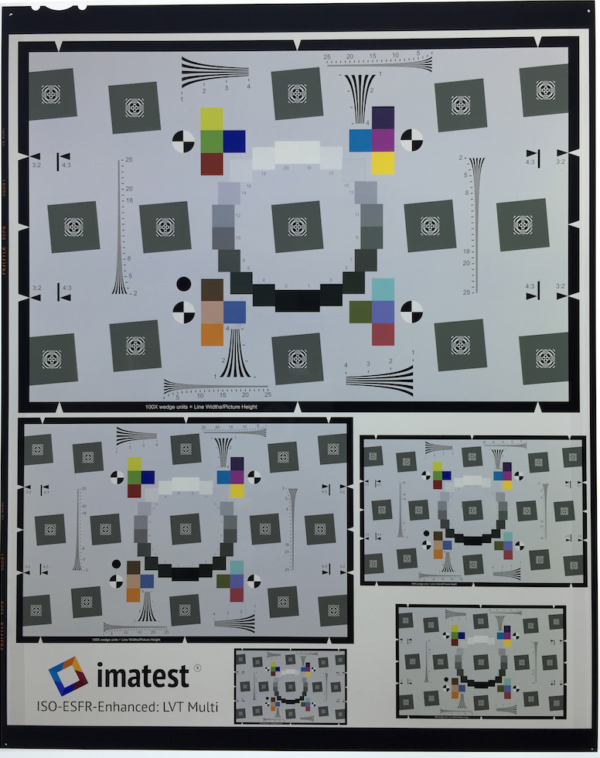

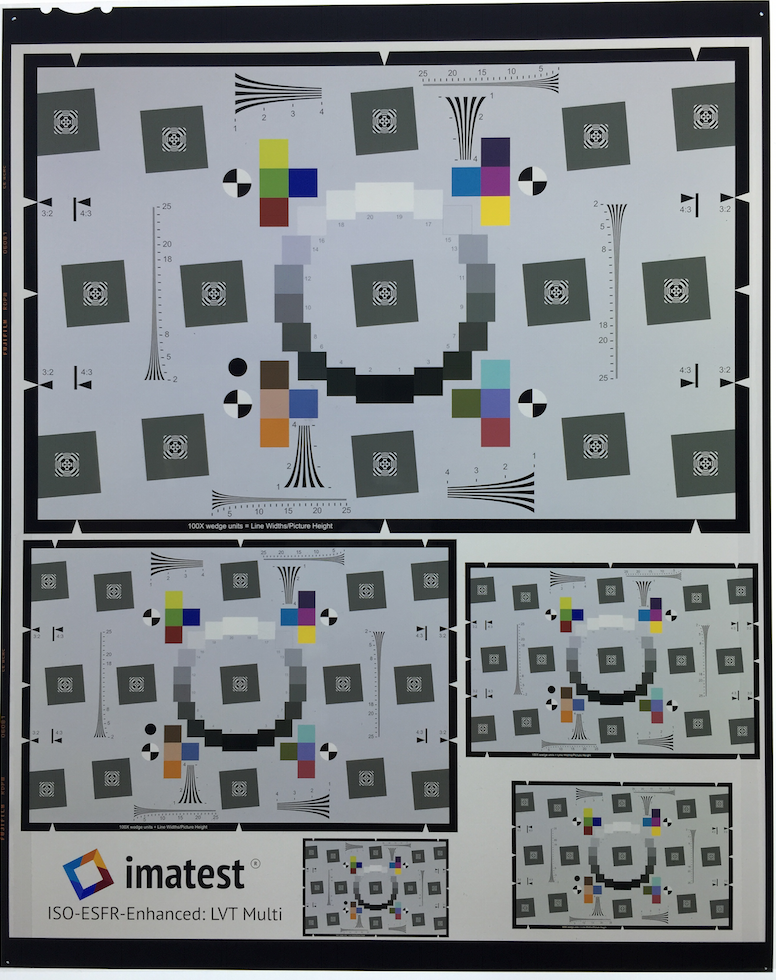

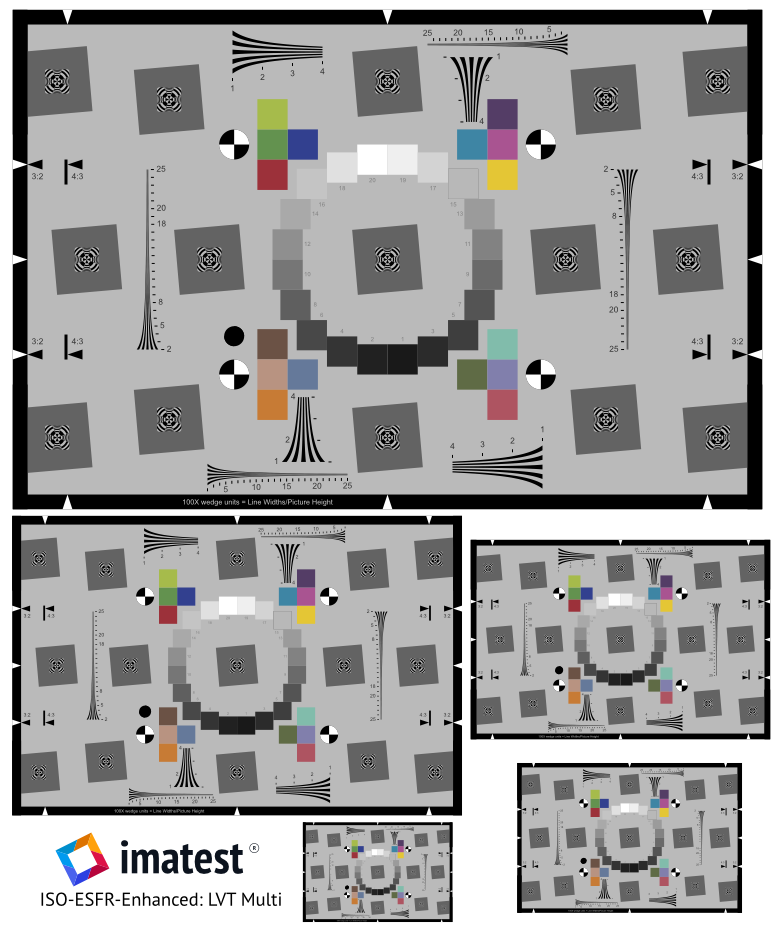

Due to the aspect ratio of the film, we offer this version in the Multi-Size format. Our Multi-Size option makes maximal use of the film space to provide a variety of different sized charts.

Categories: , Tags: , , , ,

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

Video (Watch on our site)

The 2017 ESFR .75x version (Enhanced – Full sheet) is: 225mm x 150mm (8.86″ x 5.90″)

The 2017 ESFR  .66x version (Extended – Full sheet) is: 132mm x 235mm (5.20″ x 9.25″)

The 2023 ESFR  .66x version (Extended – Full sheet) is: 234.95mm x 135.72mm (9.25″ x 5.34″)

Sizes

2017 ESFR

Enhanced – Multi Dimensions

2017 ESFR

Extended – Multi Dimensions

2023 ESFR

Extended – Multi Dimensions
Small 190.5mm × 127mm
(7.5″ × 5″)		 196.85mm × 110.73mm
(7.75″ × 4.36″)		 190.5mm × 110.05mm
(7.5″ × 4.33″)
X-Small 114.29mm × 76.2mm
(4.5″ × 3″)		 127mm × 71.44mm
(5″ × 2.81″)		 120.65mm × 69.7mm
(4.75″ × 2.74″)
XXX-Small 57.15mm × 38.1mm
(2.25″ × 1.5″)		 63.5mm × 35.72mm
(2.5″ × 1.41″)		 63.5mm × 36.68mm
(2.5″ × 1.44″)
XX-Small 76.2mm × 50.8mm
(3″ × 2″)		 88.9mm × 50.01mm
(3.5″ × 1.97″)		 88.9mm × 51.35mm
(3.5″ × 2.02″)
XXXX-Small 38.1mm × 25.4mm
(1.5″ × 1″)		 44.45mm × 25mm
(1.75″ × 0.98″)		 44.45mm × 25.68mm
(1.75″ × 1.01″)


Several eSFR ISO calculations require knowledge of the image magnification, which is calculated by the Imatest eSFR ISO module when Registration mark vertical spacing (cm) is entered into the appropriate box on the right of the eSFR ISO ‘More settings’ window. (Pixel size or pitch must also be entered.) For eSFR ISO charts the Reg. mark vertical spacing is exactly 0.46 times the vertical chart dimension. For example, for the smallest eSFR Enhanced chart image, which is 38.1mm x 25.4mm (1.5″ x 1″), the Reg. mark vertical spacing is 0.46cm x 2.54cm (0.018″ x 1″) = 1.1684cm (0.07″).
