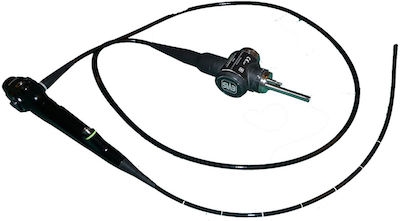

Medical Endoscope Image Quality Test Package

February 27, 2018
September 14, 2023

This assembly of products can comprise a complete test solution. If you have any questions, please email us at sales@imatest.com or call us at 720.328.5105, Monday through Friday, 9am – 5pm (Mountain Time).

Software

  • *

Imatest Lab Equipment

  • Test Fixture Options *

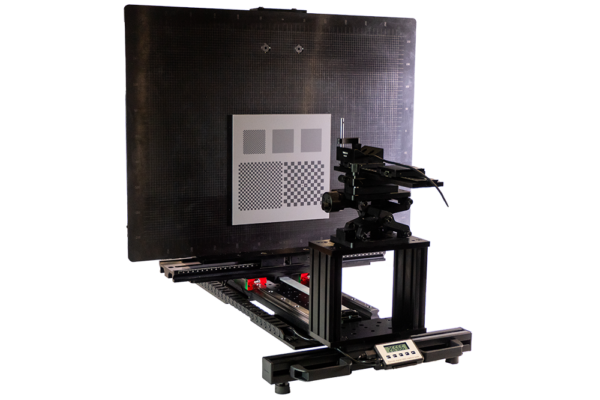

    Imatest Benchtop Test Stand Motorized XZ-stages + $22,000.00
    Imatest Benchtop Test Stand Motorized Z-stage + $14,800.00
    Imatest Benchtop Test Stand Manual Version + $7,000.00

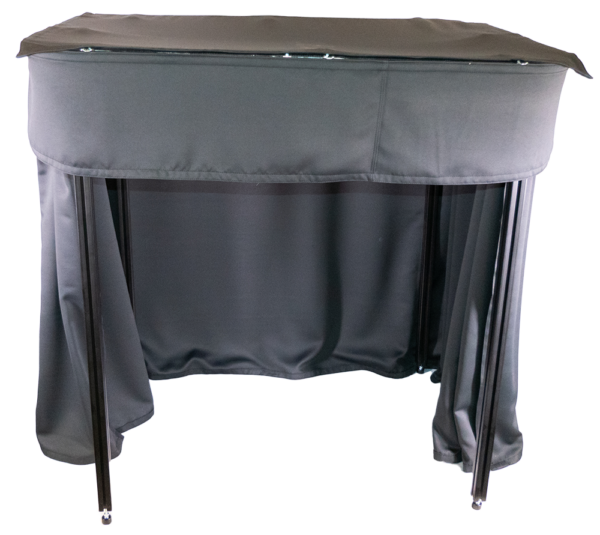

    Blackout Curtain for Imatest Benchtop Test Stand + $3,500.00

  • Uniform Light Source *

    Imatest LED Lightbox Size B with 3100K & 6500K light channels + $4,900.00
    Imatest LED Light Panel - Size B + $1,450.00

Reflective Charts

  • Sharpness & Field of View *

    SFRplus Photographic Multi-Size Target + $985.00
    ISO 12233: 2014 Edge SFR (E-SFR) Photographic Chart-Enhanced-1x with Color + $1,080.00

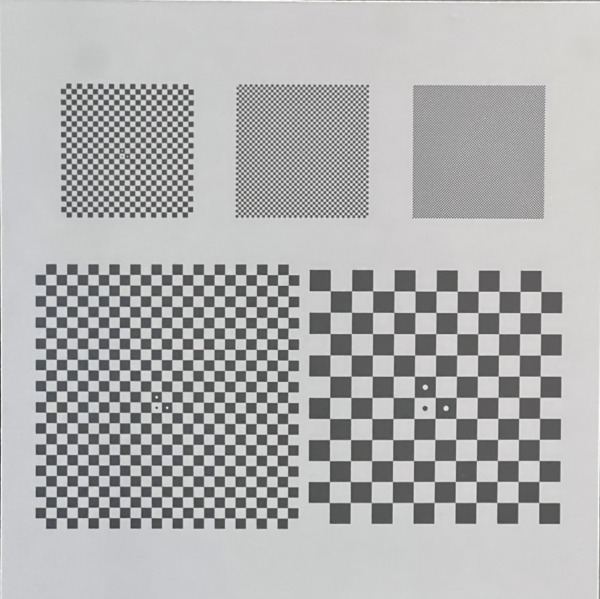

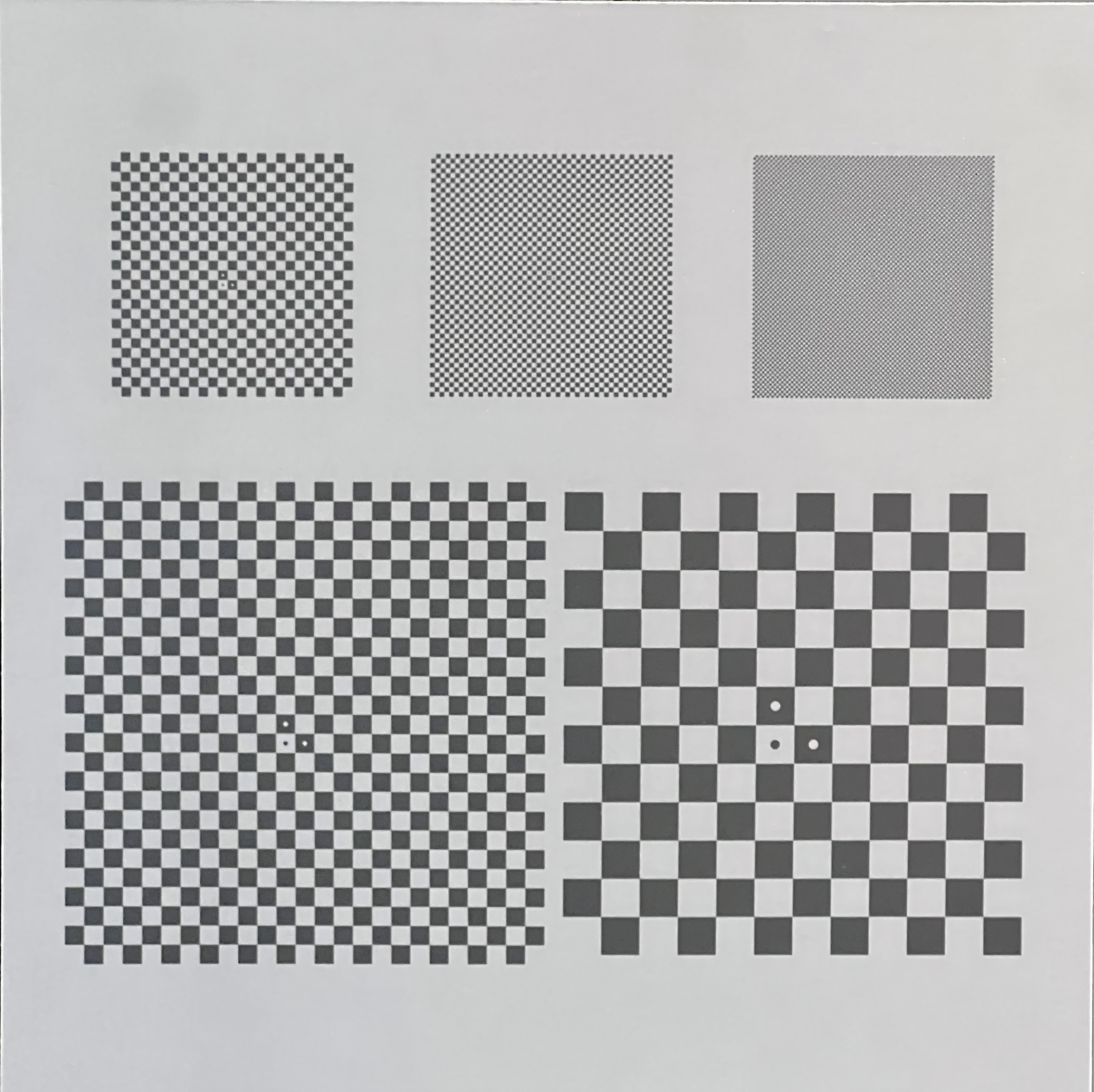

    Checkerboard Photographic Multi-Size Test Chart + $725.00
    ISO-8600-3-MethodA (Mounted) + $430.00

  • Reflective Color Charts *

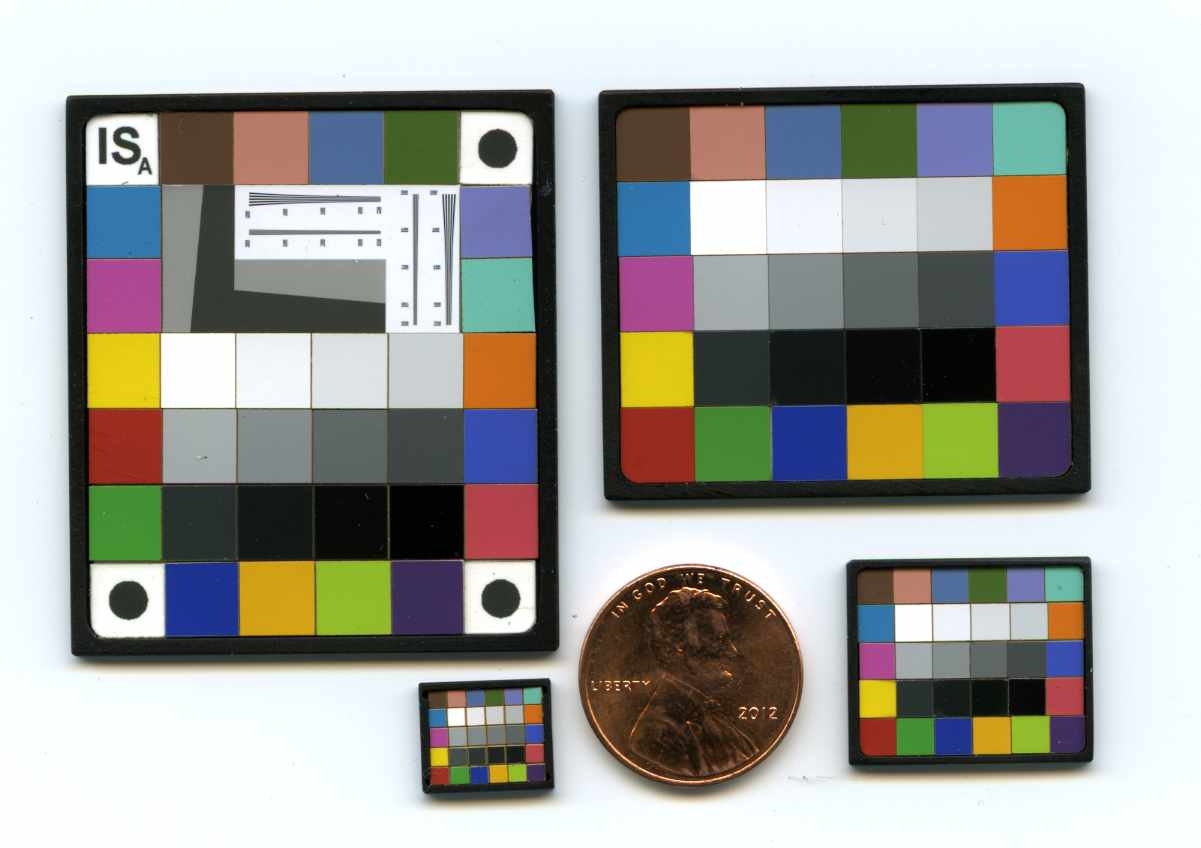

    Rez Checker Target + $370.00 – $645.00
    Micro Rez Checker Matte Target w/ NIST Traceability + $645.00
    Nano Rez Checker Matte Target + $390.00
    Pico Matte ColorGauge Chart + $360.00
    Nano Matte ColorGauge Chart + $350.00
    Micro Matte ColorGauge Chart + $340.00
    Micro Matte ColorGauge Chart w/ NIST Traceability + $615.00

Transmissive Charts

  • Sharpness *

    Multi-size SFRplus Test Chart on High-Precision LVT Film - 5x7 squares, 4:1 contrast ratio + $570.00
    Checkerboard Chrome on Glass 2", 30x30 1mm squares + $730.00
    Checkerboard Chrome on Glass 2", 15x15 2mm squares + $730.00
    Checkerboard Chrome on Glass 4", 20x20 4mm squares + $1,230.00

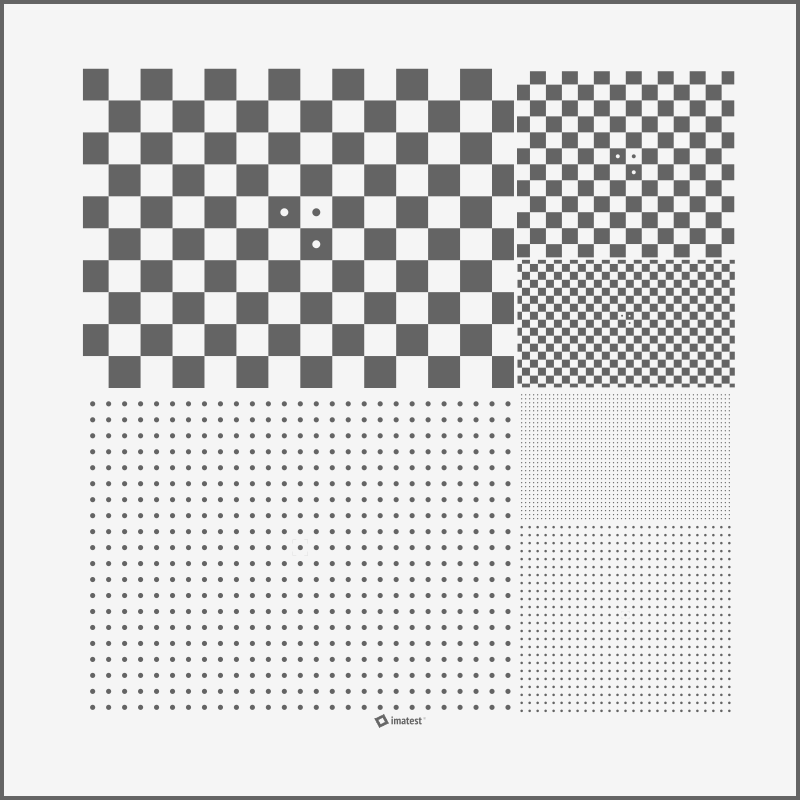

    Micro Multi Slide 4" Square + $1,350.00

  • Transmissive Color Targets *

    Transmissive Color Target on Film - Small + $150.00
    IAM-9-C NIST Traceable Color Transmission Calibration Slide + $1,400.00

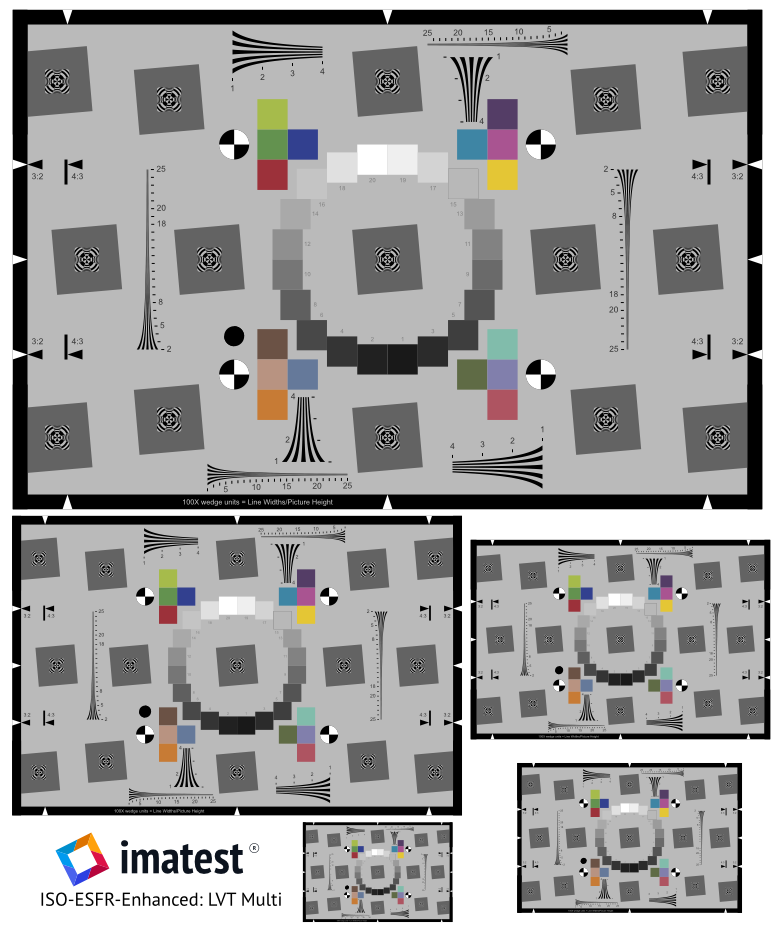

    ISO12233: 2014 Edge SFR (eSFR) ISO Test Charts on Color High-Precision LVT Film-Enhanced-Multi Size + $570.00
SKU: IQ-MED-ENDO Category:

Description

Depending on what capabilities you need in your lab, you can select an assortment of our software, equipment and test charts.

Software

Compare the different versions of Imatest Software.

Lab Equipment

Check out the Imatest Benchtop Test Stand with optional Magnetic Chart Mounting System and optional Endoscope Module. For a uniform light source, review our Lighboxes and Light Panels.

Reflective Charts

Learn more about the Reflective Resolution Chart options and Field of View target.

Find details on the Rez Checker and ColorGuage Reflective Color charts.

Transmissive Charts

Find more information on our Chrome on Glass slides and LVT film targets: MicroMuilti, Checkerboard, SFR Plus, and ISO-eSFR.

Learn more about the IAM-9-C NIST Traceable Color Transmission Calibration Slide and the Transmissive Color Target.
