Checkerboard Charts for Imatest LED Light Sources

August 22, 2019
October 15, 2022


The Checkerboard Test Charts are available Pre-Mounted for use with Imatest LED Light Sources. This chart is designed to work with the Checkerboard module. This module enhances testing of varying distances by supplying more testable regions to provide automated measurements of sharpness, lateral chromatic aberration, and distortion from images.

Learn more about the Checkerboard Module.  Please note that this module runs slower than eSFR ISO and SFRplus modules and is less tolerant to extreme amounts of defocus or blooming degradations.

Download PDF Info Sheet

Lead Time: 3 Weeks

Categories: ,

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.


Download PDF Info Sheet

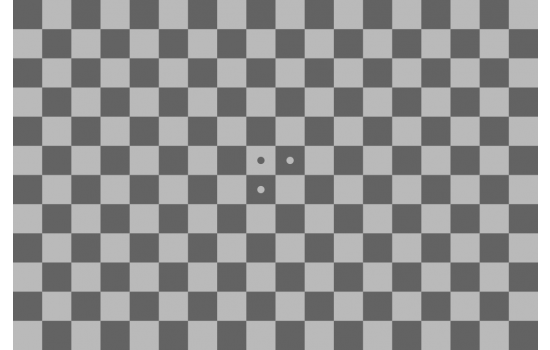

The Checkerboard Test Chart is available on different materials for Visible Spectrum or Near Infrared (NIR) testing. For the Visible Spectrum choose between: Inkjet, High Precision Color Film, or High Precision Black and White Film. For the Near Infrared (NIR) Spectrum, choose between: Inkjet or High Precision Black and White Film. Contrast ratios include 4:1 or 10:1. All options are printed with 12 vertical squares.

For systems greater than 25MP, please consider our Chrome on Glass Checkerboard Targets

Light Source Size Mounted Size Active Area Substrate MP Suitability*

253mm x 174mm
(9.96″ x 6.85″)

228mm x 152mm
(8.98″ x 5.98″)

Color High Precision Film
Black and White High Precision Film


318mm x 290mm
(12.52″ x 11.42″)

234mm x 197mm
(9.21″ x 7.76″)

Color High Precision Film
Black and White High Precision Film


456mm x 327mm
(17.95″ x  12.87″)

432mm x 305mm
(17.01″ x 12.01″)

Transmissive Inkjet
Black and White High Precision Film


634mm x 454mm
(24.96″ x 17.87″)

610mm x 432mm
(24.01″ x 17.01″)

Transmissive Inkjet

931mm x 562mm
(36.65″ x 22.13″)
900mm x 540mm
(35.43″ x 21.26)

Transmissive Inkjet

931mm x 702mm
(36.65″ x 27.64″)
906.6mm x 680mm
(35.69″ x 26.77″)

Transmissive Inkjet

1253mm x 706mm
(49.33″ x 27.79″)
1225mm x 680mm
(48.23 x 26.77″)

Transmissive Inkjet

21.3 MP

* Megapixel Suitability can be approximately doubled through the use of Chart MTF Compensation

Size A & B will be framed with 6mm Black Acrylic. Size C, D, E, F, & G will be directly mounted to 6mm Clear Acrylic.

Documentation and software support

Checkerboard can be run either through the highly-interactive Rescharts interface or as a batch-capable fixed module. The key documentation for getting started is Using Checkerboard Part 1, found in the Checkerboard section of the Documentation page. Checkerboard provides the most accurate distortion measurements.
