IEEE_2020_flare_method_A
Price range: $1,000.00 through $2,400.00

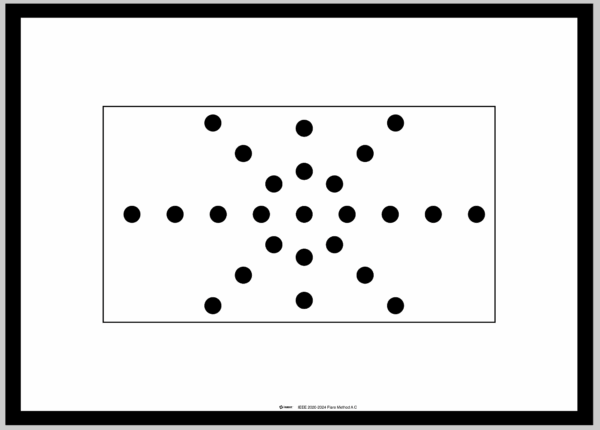

The IEEE 2020 Flare Method A Test Chart is available pre-mounted for use with Imatest LED Light Sources. This chart is a mylar photomask with high-density non-reflective black patches added to minimize reflection. The test chart is mounted on clear acrylic for ease of use with the Imatest LED Light Sources.
To obtain valid measurements, the chart must be photographed in a completely darkened environment. Any reflections on the surface of the chart will invalidate the results.
Lead Time: 3 Weeks
Description

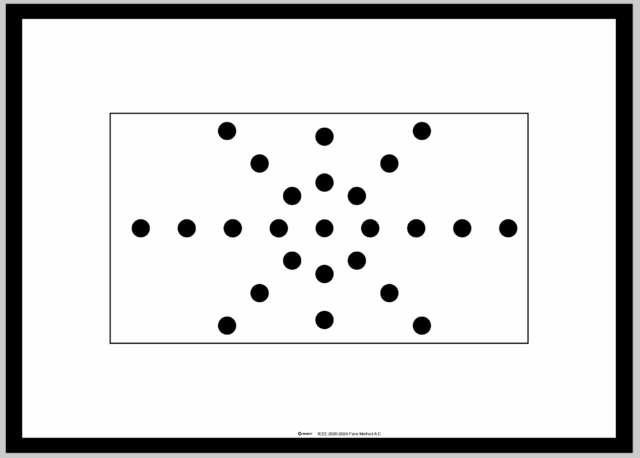

This target is for testing flare according to IEEE 2020-2024 Flare Method A, a variant of the ISO 18844 standard (part c). It includes a mylar photomask with black patches to minimize reflection. The chart is mounted on clear acrylic for ease of use with the Imatest LED Light Sources.
| Light Source Size | Mounted Size | Availability |
|---|---|---|
| C |
456mm x 327mm (17.95″ x 12.87″) |
Default configuration |
| D |
634mm x 454mm (24.96″ x 17.87″) |
Contact sales |
| E |
931mm x 562mm (36.65″ x 22.13″) |
Contact sales |
| F |
931mm x 702mm (36.65″ x 27.64″) |
Contact sales |
| G |
1253mm x 706mm (49.33″ x 27.79″) |
Contact sales |
