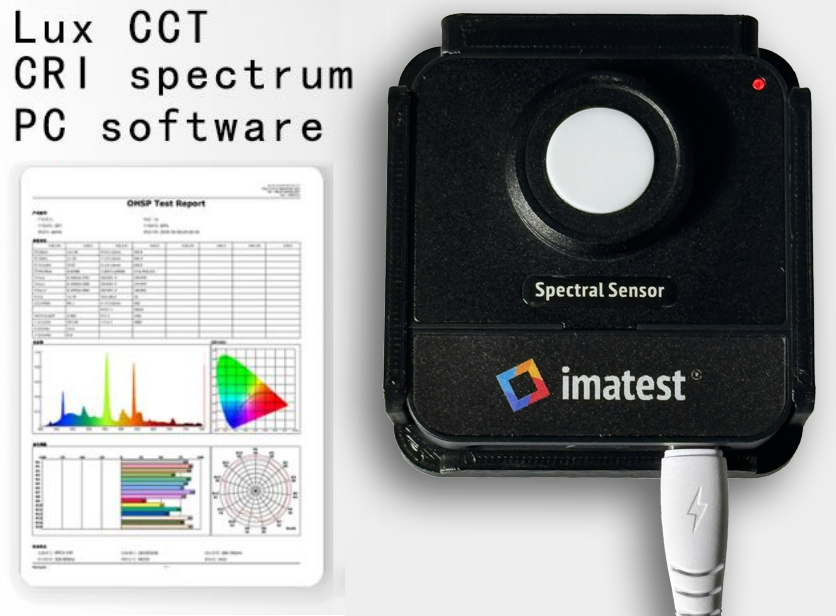

Imatest Spectral Illuminance Color Sensor

June 25, 2024
September 4, 2024

$385.00

Spectral Illuminance Sensor enables quick accurate measurements over a USB interface.

Measures Correlated Color Temperature (CCT), Illuminance (Lux),  photosynthetic photon flux density (PPFD).

Can measure wide and narrow spectrum light sources, but also can measure the narrow spectrum light sources, such as CFL, HID, etc.

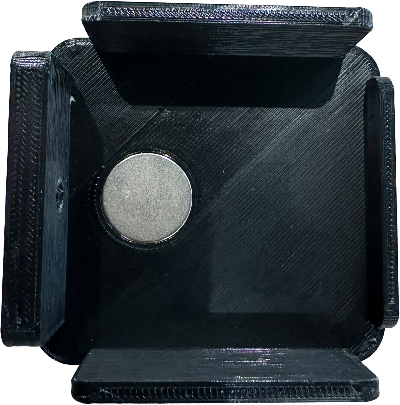

Includes an adapter for mounting to a 1/4-20 tripod mount or magnet for mounting to the Imatest Sensor Plate.

Spectral Sensor Information Sheet

SKU: ISICS Categories: , ,

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

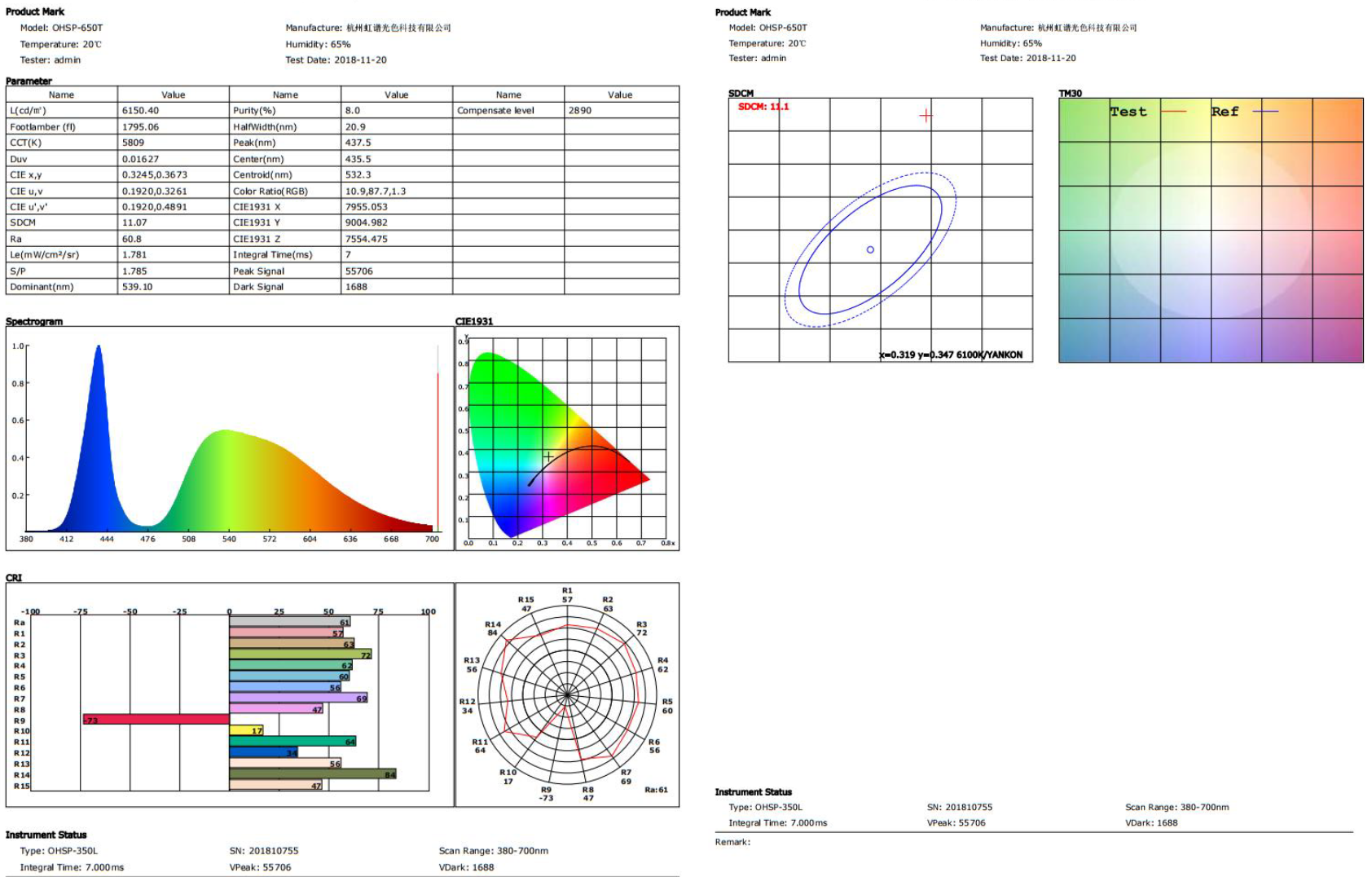

Measuring parameters:

  1. CCT Tc (K) and blackbody deviating from Duv
  2. light illumination E (LX), candlelight E (Fc)
  3. chromaticity coordinates (x, y), (U, V), (U ‘, V’)
  4. relative spectral power distribution P (lambda)
  5. color rendering index Ra, Ri (i=1 ~ 15)
  6. color tolerance (SDCM, CIE and Macadam rectangle u ‘V’ round)
  7. Dominant wavelengths, peak wavelengths, central wavelengths, centroid wavelengths, and half width
  8. light and dark visual ratio S/P
  9. color purity, red ratio, green ratio, blue ratio, CIE1931 three basic color stimulus value X, Y, Z

Specifications



Name Value
Illuminance range 5-200,000 lux
FWHM 4nm
CCT range 1000 – 100,000K
Spectral Resolution 0.5nm
Sensor CCD
Sensor array points 1500
Zeroing mode auto zeroing
Wave accuracy ±0.5nm
x,y Accuracy ±0.0025
x,y Repeatability ±0.0025
Illuminance Accuracy ±4%
Window size ⌀ 17mm
Interface USB-C
Sensor Dimensions 61.2 x 63.0 x 17.2 mm (2.41″ x 2.48″ x 0.675″)
Mounting Adapter Magnetic and 1/4-20 tripod mount
Sensor + Mount Dimensions 67.3 x 72.1 x 24.1 mm (2.65″ x 2.84″ x 0.95″)
Control software Windows
Communication Protocol Serial interface

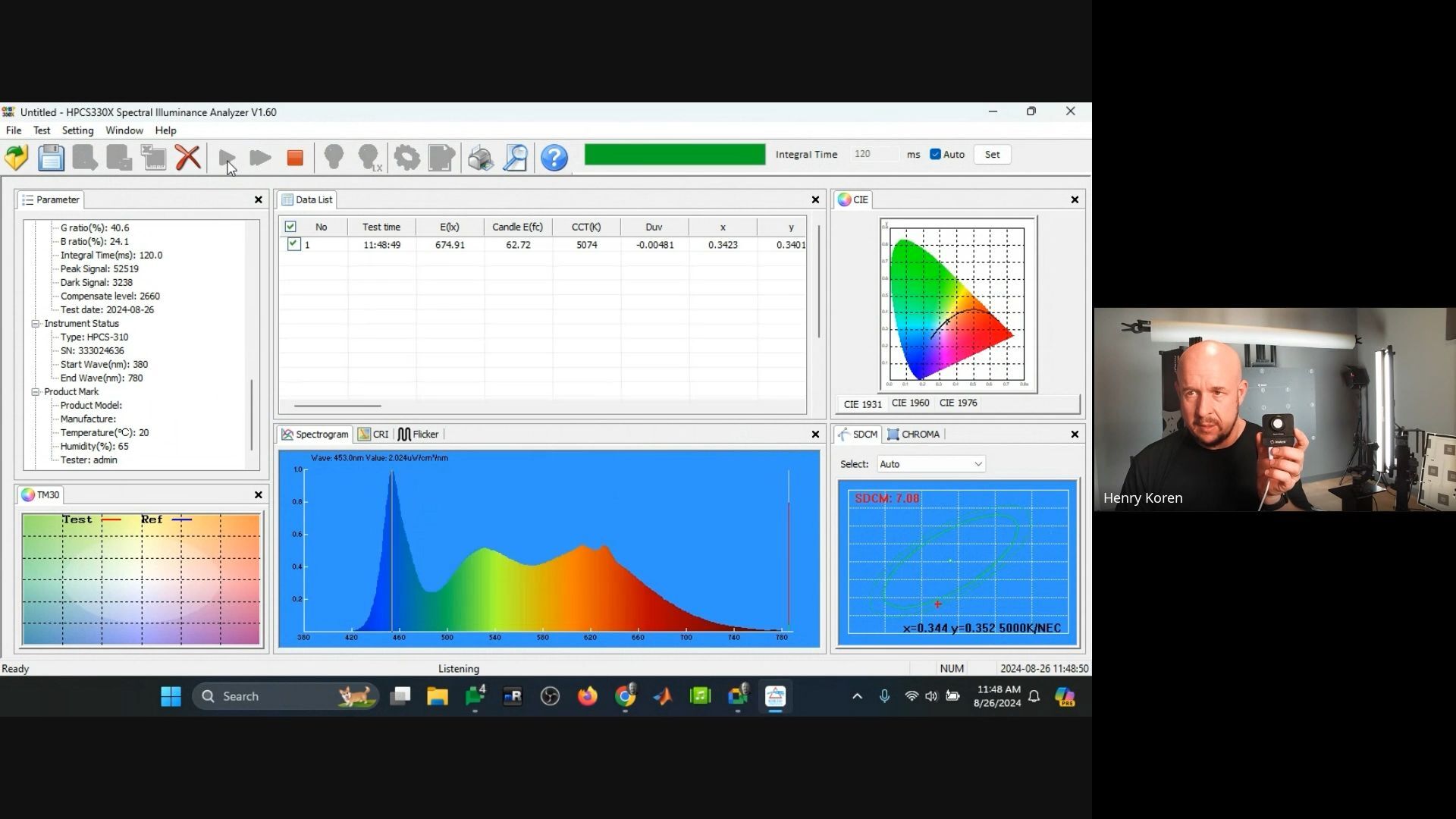

Demonstration

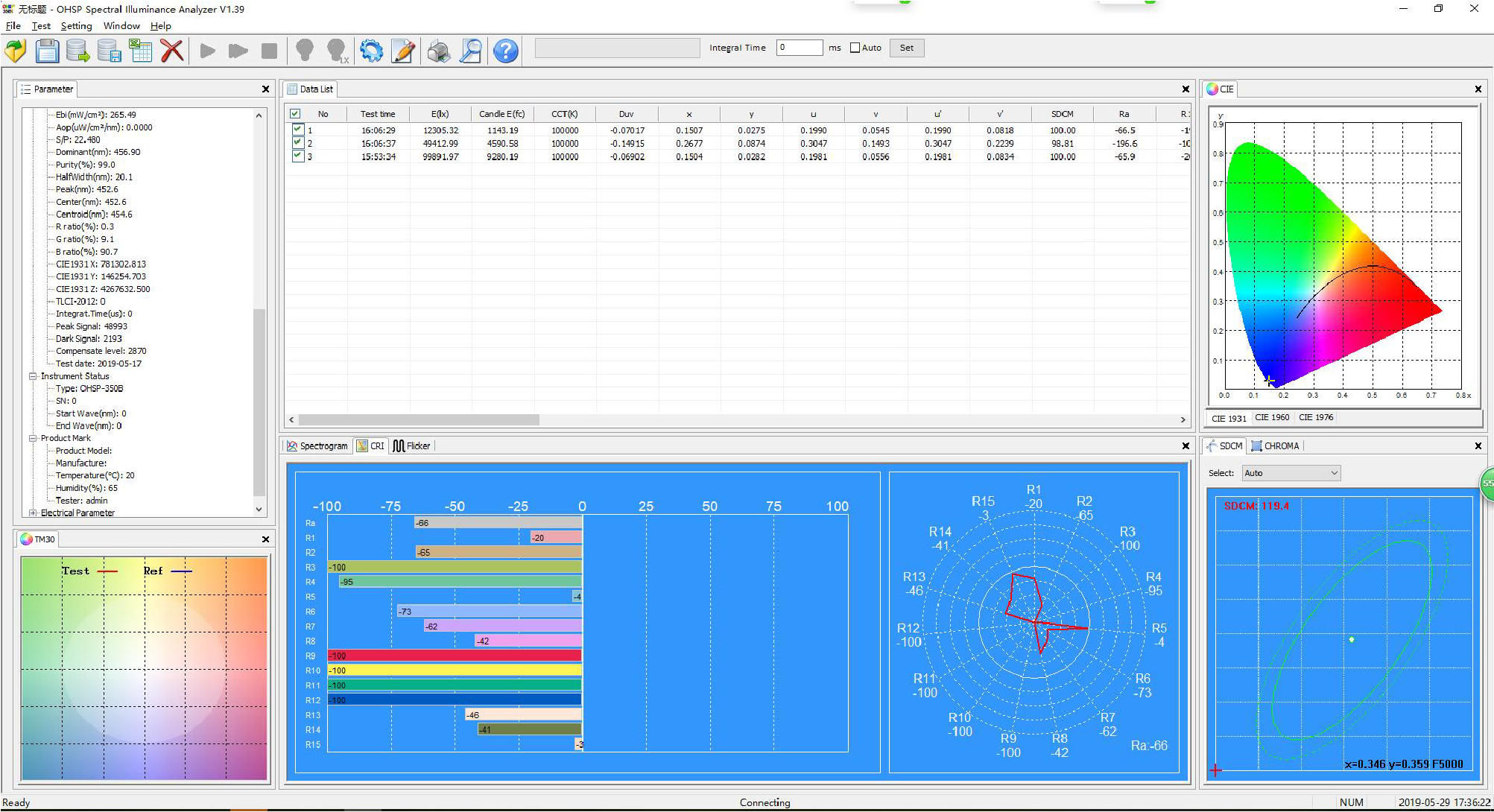

Software

Application Name HPCS330X
Installer ImatestSpectralSensor_OHSP330_Setup1.60.3-240417.exe
Platform Windows
MD5 Checksum ceac8d54bcd7b83b46bdc64f814140bc
Hardware Control API Imatest Hardware Control
Communication Protocol ISICS-USB-Protocols-1.0V.pdf
Control Documentation
