100° Collimator Lens for Wide Field of View

September 28, 2024
October 23, 2025
100° Collimator Lens for Wide Field of View
cl1021d

$2,730.00

The OSCL1021 Collimator Lens is for 100° Field of View or less.

Sub Lenses

  • 0.67 Diopter Sublens

  • 1.0 Diopter Sublens

  • 1.33 Diopter Sublens

  • 1.67 Diopter Sublens

  • 2 Diopter Sublens

  • 2.5D Sublens

SKU: OSCL1021 Categories: ,

Lead Time and Rush options. Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

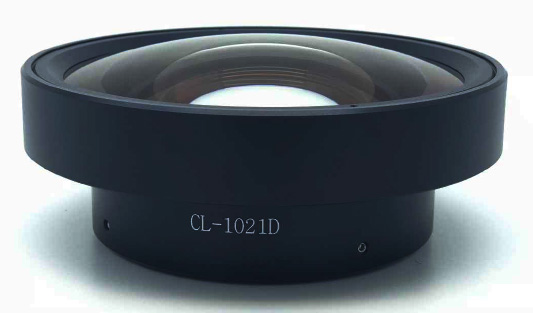

The OSCL1021D Collimator Lens for 100° Field of View or less.

  • Lens Composition: (default) 3 Glass Lenses ( 1 ED Glass,  1HRI Glass )
    • (option) 6 Glass Lenses (0.67D, 1D, 1.67D, 1.33D, 2D, 2.5D)
      Generally use 1D or 2D
  • EFL: 300mm
  • Inspectable FOV of CCM: 100 degrees
  • Inspectable Resolution of CCM: 8-20Mega Camera Lens
  • Ass’y Size: Ф 130mm X L 54.83mm , 1.00kg
  • Exit Pupil Size: Φ4.5mm
  • Exit Pupil Position: 21.0mm (from vertex C/L to CCM)
  • Working Distance (from C/L 1st Lens R1 surface to chart):

125.86mm at Object Distance 0.5m
162.87mm at Object Distance 1.0m

Collimator Fixture Ecosystem

Imatest Collimator Ecosystem
ISO 12233 2017 Size G Lab Bench for Tabletop Testing Blackout Curtain Fixture Light Panel Size D Light Panel Size G Light Panel Size C Checkerboard Inkjet Target Size D SFRplus Transmissive Inkjet Size C 90 degree collimator 70 degree collimator lens with 15mm entrance pupil 120 degree collimator lens with for 4.5mm entrance pupil optics Imatest Collimator Fixture
