ISO 12233:2017 Edge SFR (eSFR) chart-MW

September 22, 2017
July 19, 2022

$295.00$775.00

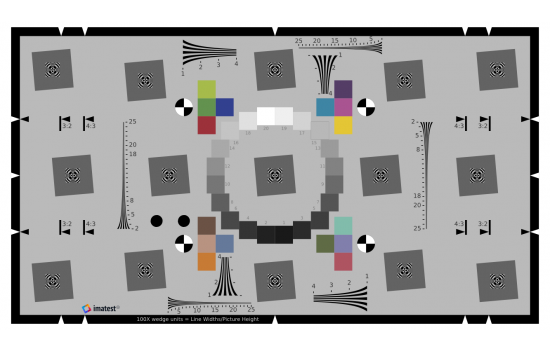

The ISO 12233:2017 eSFR extended chart is suitable for Matlab’s esfrChart class. It is a 16:9 ratio.

Clear
Category:

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

Reflective Matte (Inkjet)

1x – 200 mm × 365 mm (7.875″ × 14.5″) – ISO-eSFR-305

2x – 400 mm × 730 mm (15.75″ × 29″) – ISO-eSFR-257

4x – 800 mm × 1460 mm (31.5″ × 58″) – ISO-eSFR-273

Offered on matte, semi-gloss, and transmissive media. Normal use cases include Low Resolution (<2MP) systems at short testing distances or long testing distances with medium (<25MP) resolution systems. Print sizes range from 200 mm × 365 mm (7.875″ × 14.5″) to 800 mm × 1460 mm (31.5″ × 58″).



DisplayTrans (Transmissive Inkjet – Requires a Lightbox)

1x – 200 mm × 365 mm (7.875″ × 14.5″) – ISO-eSFR-309

2x – 400 mm × 730 mm (15.75″ × 29″) – ISO-eSFR-261

4x – 800 mm × 1460 mm (31.5″ × 58″) – ISO-eSFR-277



LVT Film (Requires a Lightbox)
0.66x – 132 mm x 235 mm (5.2″ x 9.25″) – ISO-eSFR-183
LVT Film Prints – This is a high resolution transmissive film which requires a lightbox to illuminate. The maximum print size of this film is 9.25” x 7.75”. Normal use cases include low (<2MP) to medium resolution (<20MP) systems at short testing distances.
