SFRplus Photographic Multi-Size Target

February 5, 2017
October 14, 2022


The SFRplus Photographic Multi-Size target is ideal for a variety of specialized testing applications. This chart is of particular interest for endoscope and medical device manufacturers, as the always-on, embedded light sources of these instruments often prevents the use of a high-resolution transmissive target.

SKU: SP-PH-MULTI Category:

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

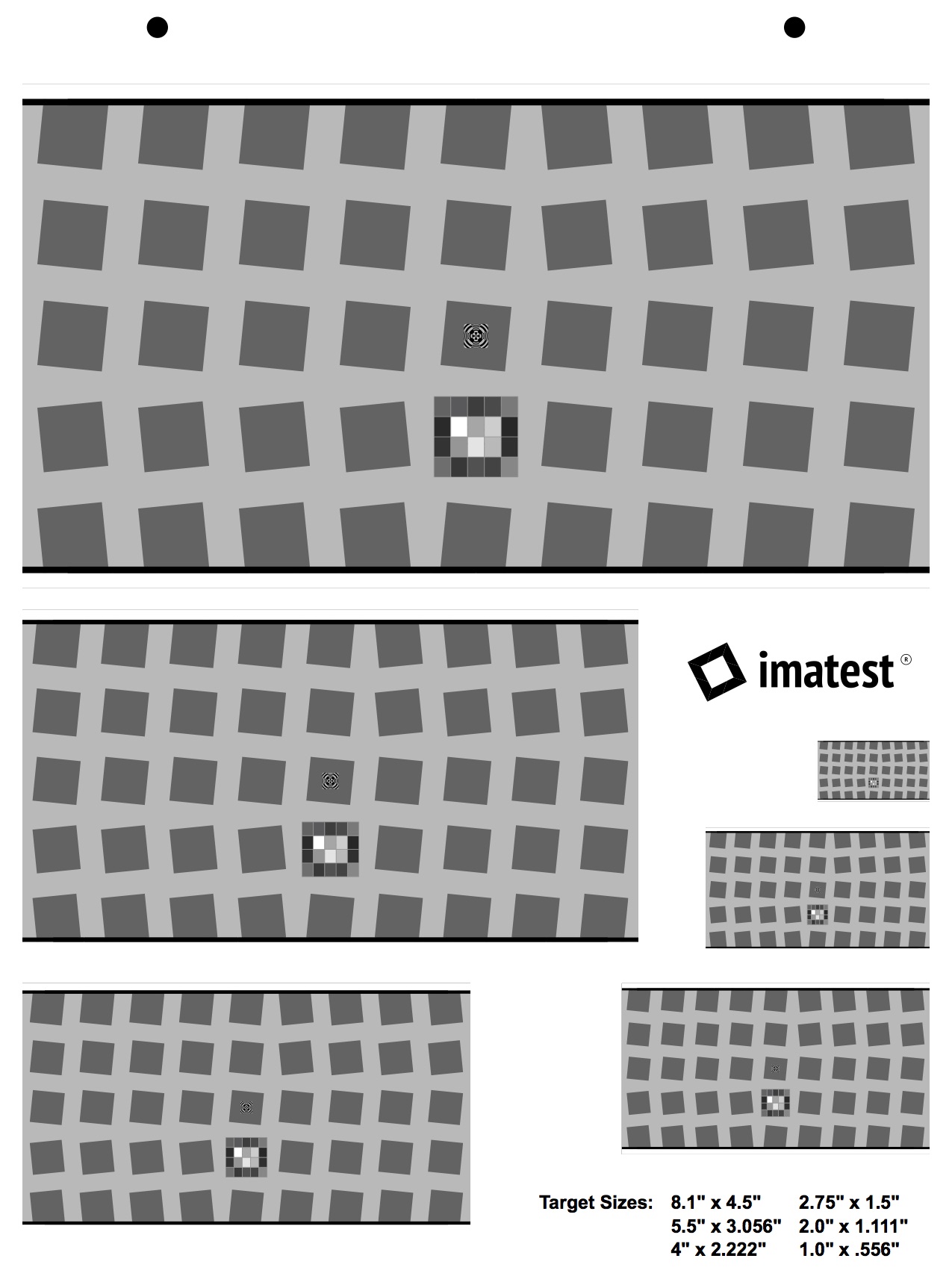

The Photographic SFRplus Multi-Size target has the following properties:

Total Size: 215.9mm x 279.4mm (8.5” x 11”)

Individual Target Sizes (Active Area):

205.74mm x 114.3mm (8.1” x 4.5”)

139.7mm x 77.62mm (5.5” x 3.06”)

101.6mm x 56.44mm (4” x 2.22″)

57.79mm x 38.1mm (2.75” x 1.5”)

50.8mm x 28.22mm (2.0” x 1.11″)

25.4mm x 14.12mm (1.0” x 0.56″)

Contrast Ratio: 4:1

The SFRplus test chart can be used with Imatest to measure MTF, lateral chromatic aberration, distortion, and tonal response in addition to other image quality factors. The SFRplus module features fully automated region-of-interest detection. The SFRplus chart offers significant advantages over commonly used charts such as the ISO 12233 chart. Some of these advantages are less wasted area, the ability to produce a map of sharpness over the sensor surface, better measurement accuracy, and full support for automated testing.

Documentation and software support

SFRplus can be run either through the highly-interactive Rescharts interface or as a batch-capable fixed module. The key documentation for getting started is Using SFRplus Part 1, found in the SFRplus section of the Documentation page. We recommend framing the chart with a small amount of white space above and below the top and bottom bars. Badly-framed charts can be analyzed with SFR using manual ROI selection.
